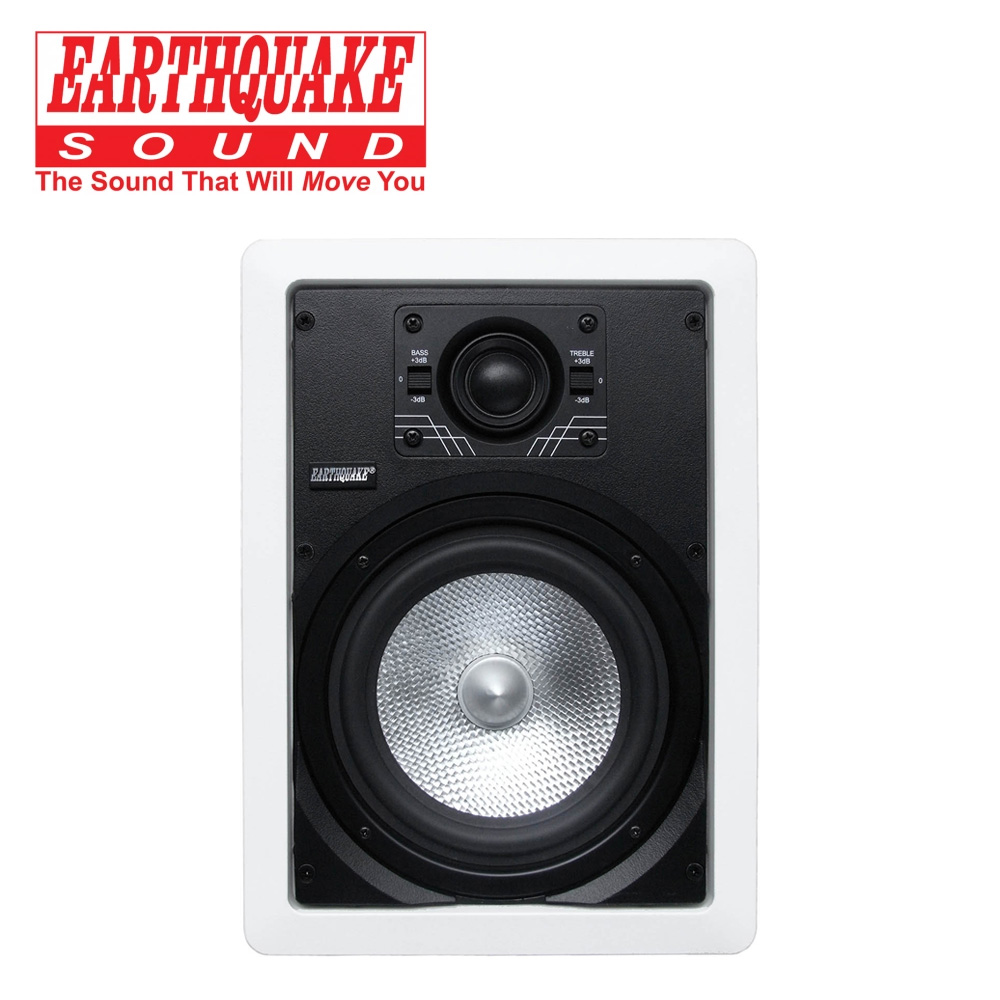

Imãge 6″ In-Wall Speakers

Earthquake  IImãge line of in-wall and in-ceiling speaker systems is the recipient of numerous design and engineering awards since its conception, including the prestigious “1998 CEMA Design and Engineering Excellence Award” and the “2000 Design and Engineering Showcase Award,” just to name a few.

Imãge speaker systems deliver an unmatched performance, that’s no accident. It is simply the result of integrating technology’s “best” into the design such as the platinum coated phase plug for extended mid band, oversized high temperature aluminum voice coil (1.5″), “clip detect” protection circuitry, indoor/outdoor capability, and much more.

  • 1″ high definition swiveling silk dome tweeter with neodymium magnet
  • Switched ±3dB woofer level adjustment
  • Switched ±3dB tweeter level adjustment
  • Long excursion woofers with poly injection cone and high grade voice coils
  • Easy-install “Turn-N-Lock™” mechanism
  • Corrective phase plug

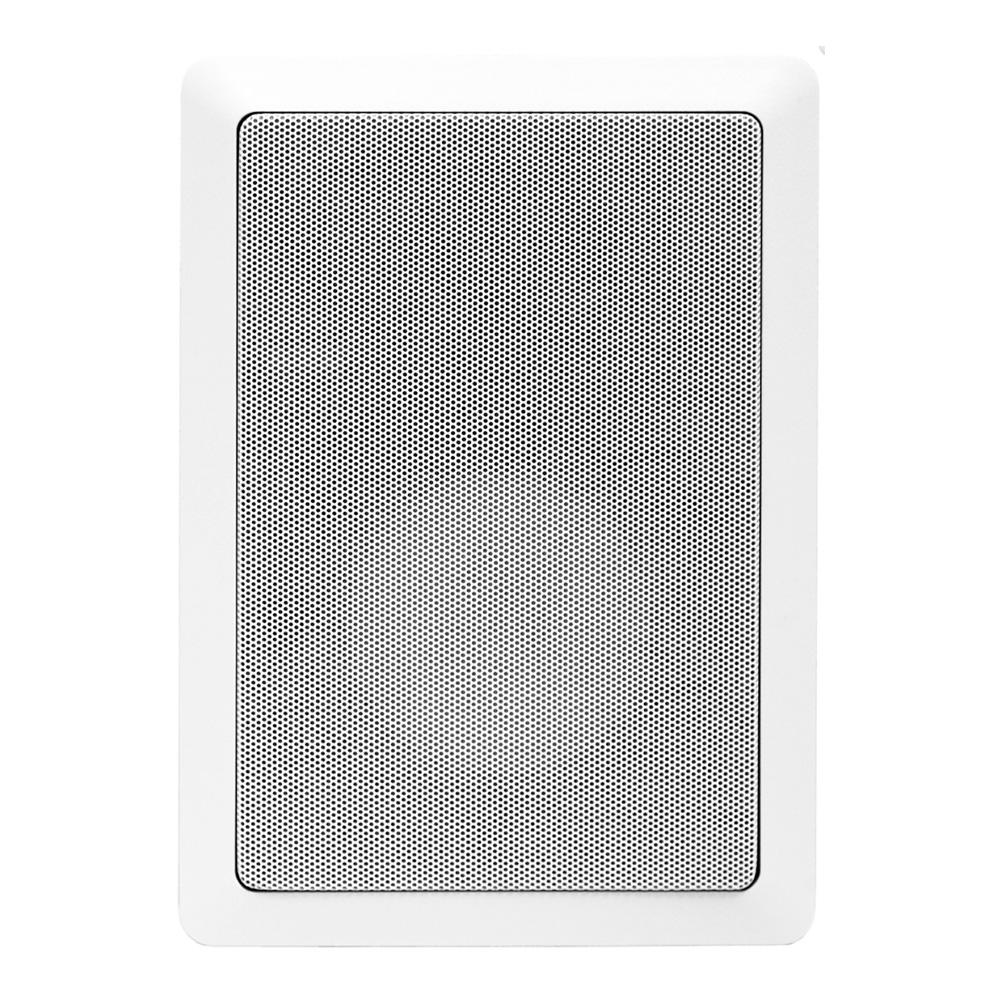

  • Paintable rust-proof aluminum grilles

Description

Power Handling175W
Frequency Response52Hz -21kHz
Woofer6-1/2”
Tweeter1” (25mm) silk dome
Elaborate filters networkHigh pass @ 3kHz, 18dB/Oct
Low pass @ 3kHz, 18dB/Oct
Overall Dimensions (H x W)305 x 221mm (12″ x 8-11/16″)
Cut-out Dimensions (H x W)273 x 184mm (10-3/4″ x 7-1/4″)
Mounting Depth79mm (3-1/8″)
Weight3.24kg
