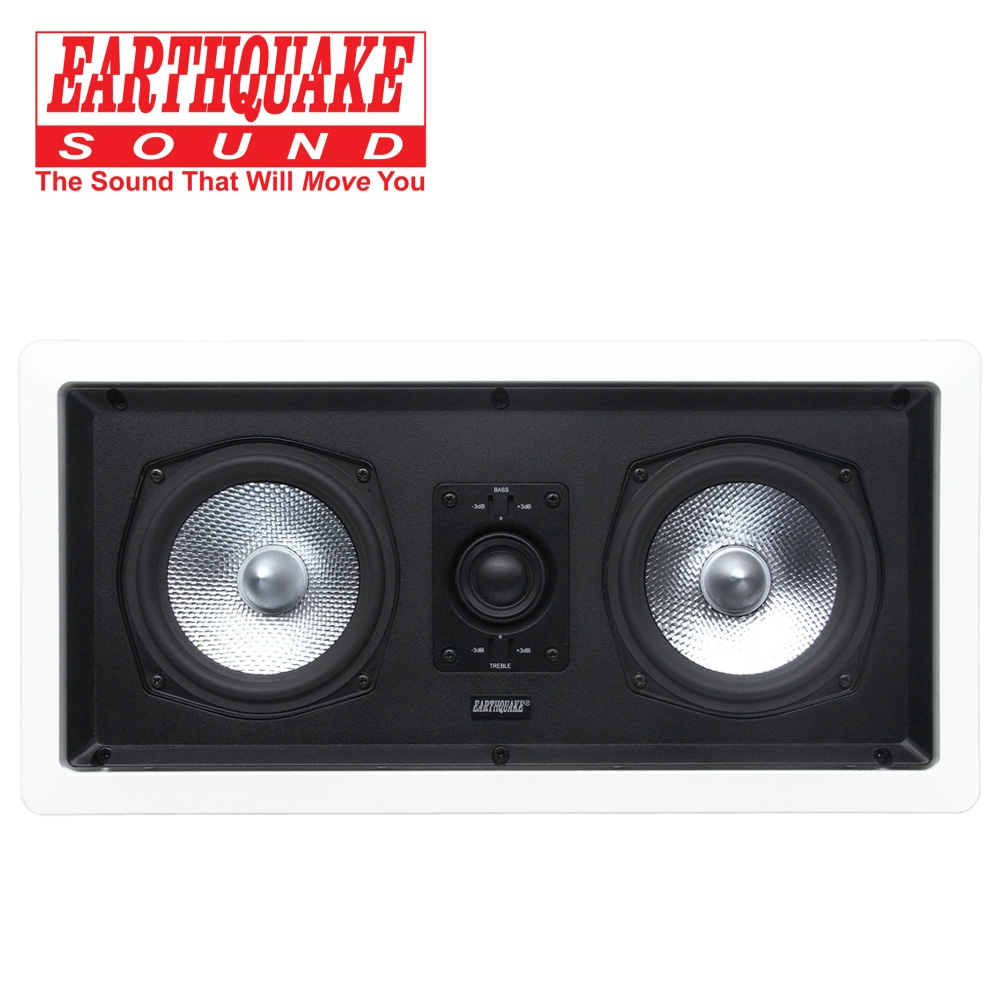

Imãge-C25X In-Wall Speakers

The Earthquake Imãge-X line of in-wall and in-ceiling speaker systems is the recipient of numerous design and engineering awards since its conception, including the prestigious “1998 CEMA Design and Engineering Excellence Award” and the “2000 Design and Engineering Showcase Award,” just to name a few.

Imãge-X speaker systems deliver an unmatched performance, that’s no accident. It is simply the result of integrating technology’s “best” into the design such as the platinum coated phase plug for extended mid band, oversized high temperature aluminum voice coil (1.5″), “clip detect” protection circuitry, indoor/outdoor capability, and much more.

  • High sensitivity and power handling
  • Easy install spring loaded terminals
  • Paintable rust-proof aluminum grilles for superior protection and job flexibility
  • Swiveling 1” silk dome, neodymium tweeters
  • Easy adjust bass/treble trim
  • Turn N-Lock installation for safe, efficient and professional installs
  • Poly injection composite drivers for smooth wide range response with no distortion
  • Long life, moisture resistant materials for safe use in kitchens, bathrooms and atriums
  • Style easily integrates with Earthquake IQ and Imãge in-ceiling speakers and Thor in-wall subwoofers


Power Handling250W
Frequency Response50Hz – 21kHz
Woofer5-1/4” x Two
Tweeter1” (25mm) silk dome
Elaborate filters networkHigh pass @ 3kHz, 18dB/Oct
Low pass @ 3kHz, 18dB/Oct
Frame Dimensions448 x 219mm (17-5/8” x 8-5/8”)
Cut-out Hole Dimensions340 x 187mm (16-3/8” x 7-3/8”)
Mounting Depth75mm (3″)
