JBL Bar 2.1 Deep Bass

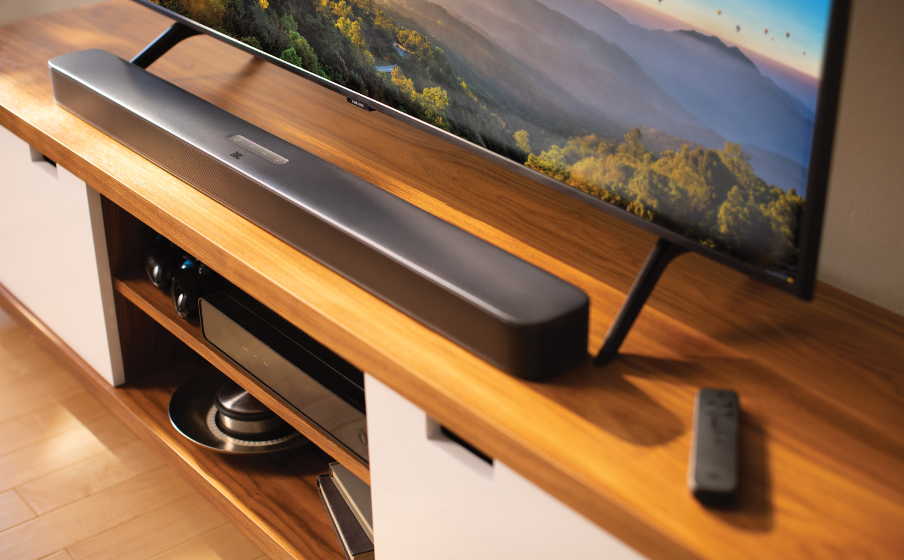

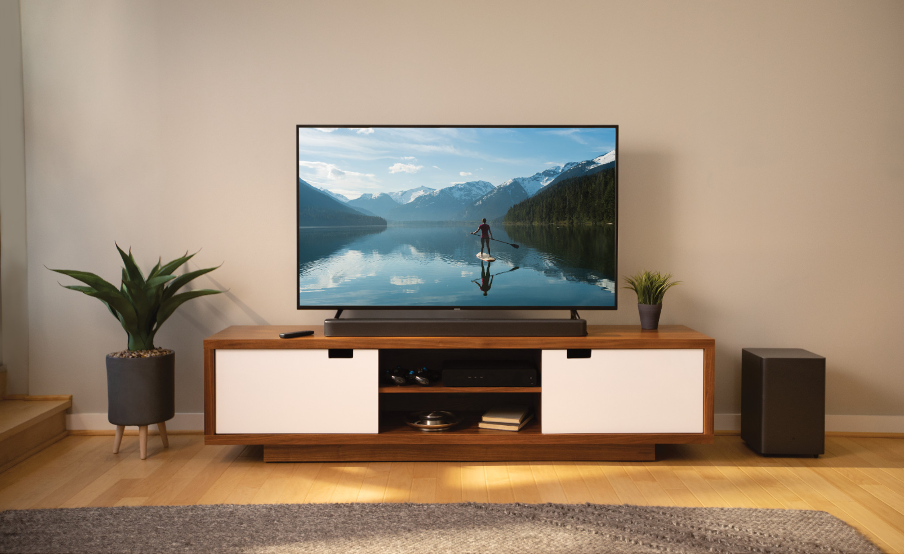

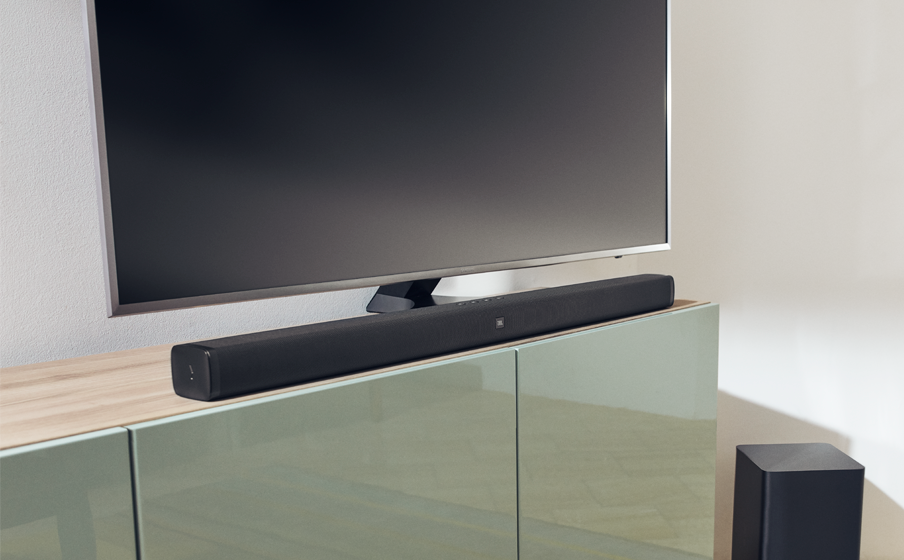

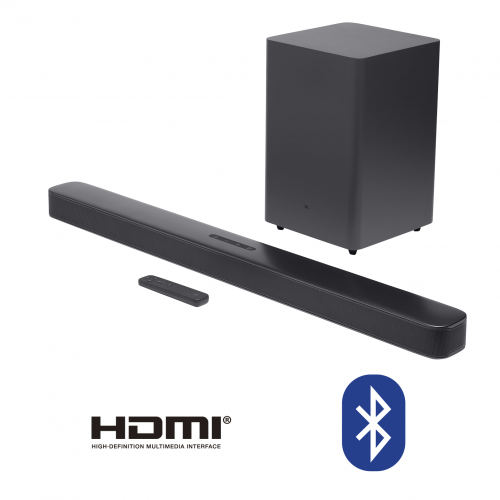

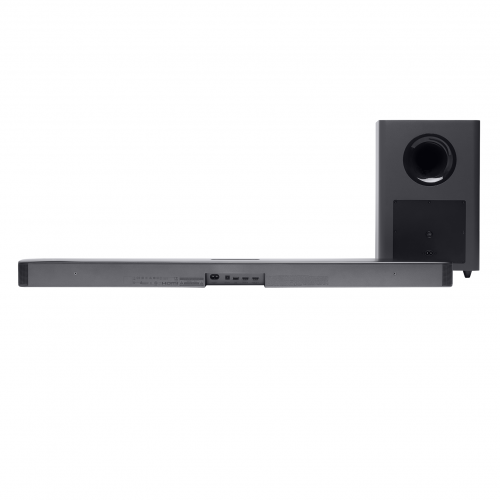

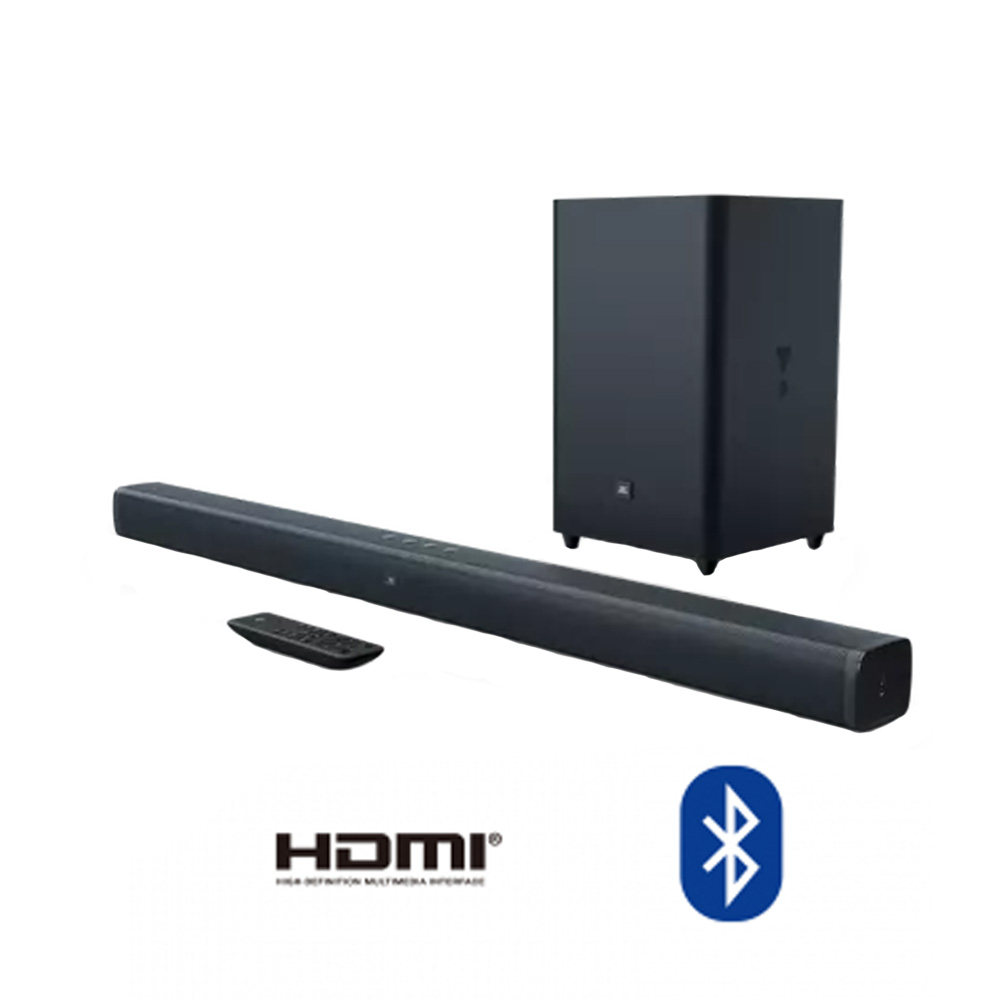

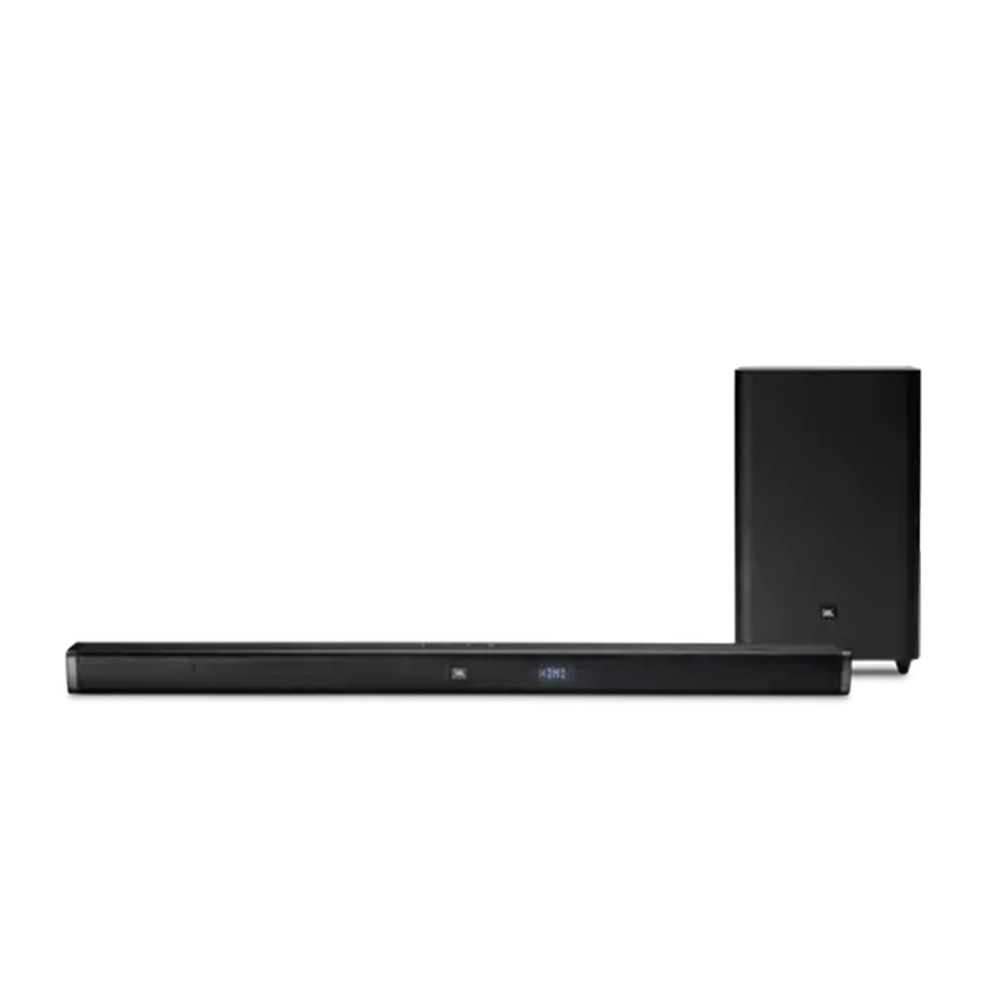

The elegant JBL BAR 2.1 Deep Bass Soundbar features Bluetooth, Optical, HDMI in and ARC connectivity with both Dolby Digital and JBL Surround Sound modes. Its room filling 300 Watts of total system power delivers an immersive experience by way of its four powerful full range drivers, two 1” tweeters, and JBL engineered 6.5” subwoofer. On-board Bluetooth allows you to use the Bar 2.1 for streaming music from your favorite device in addition to its ability to deliver a real JBL theater experience when coupled with your flat panel TV. Its elegant and low profile design will look amazing below your TV.

Description

Bring the power

Bring the power

An impressive 300W of total system power puts you in control. Your movies and music have never sounded so good.

Surround yourself with sound

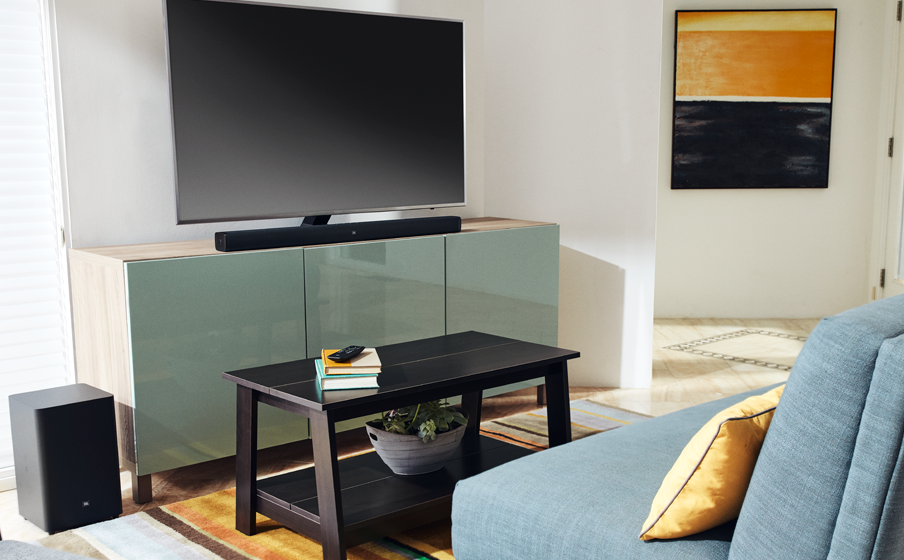

JBL Surround Sound instantly brings movies, games, sports and music to life. Upgrade to an immersive sound experience for your TV without any extra wires or speakers.

Surround yourself with sound
All about the bass

All about the bass

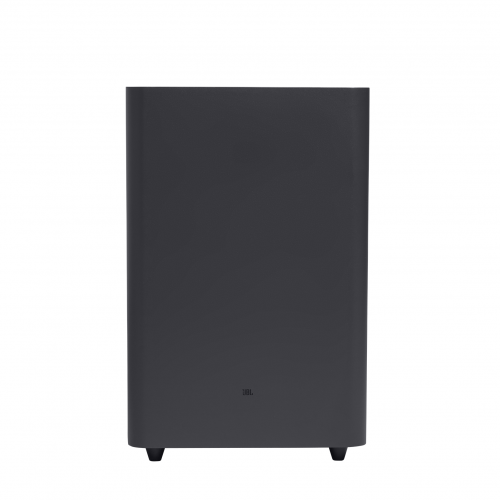

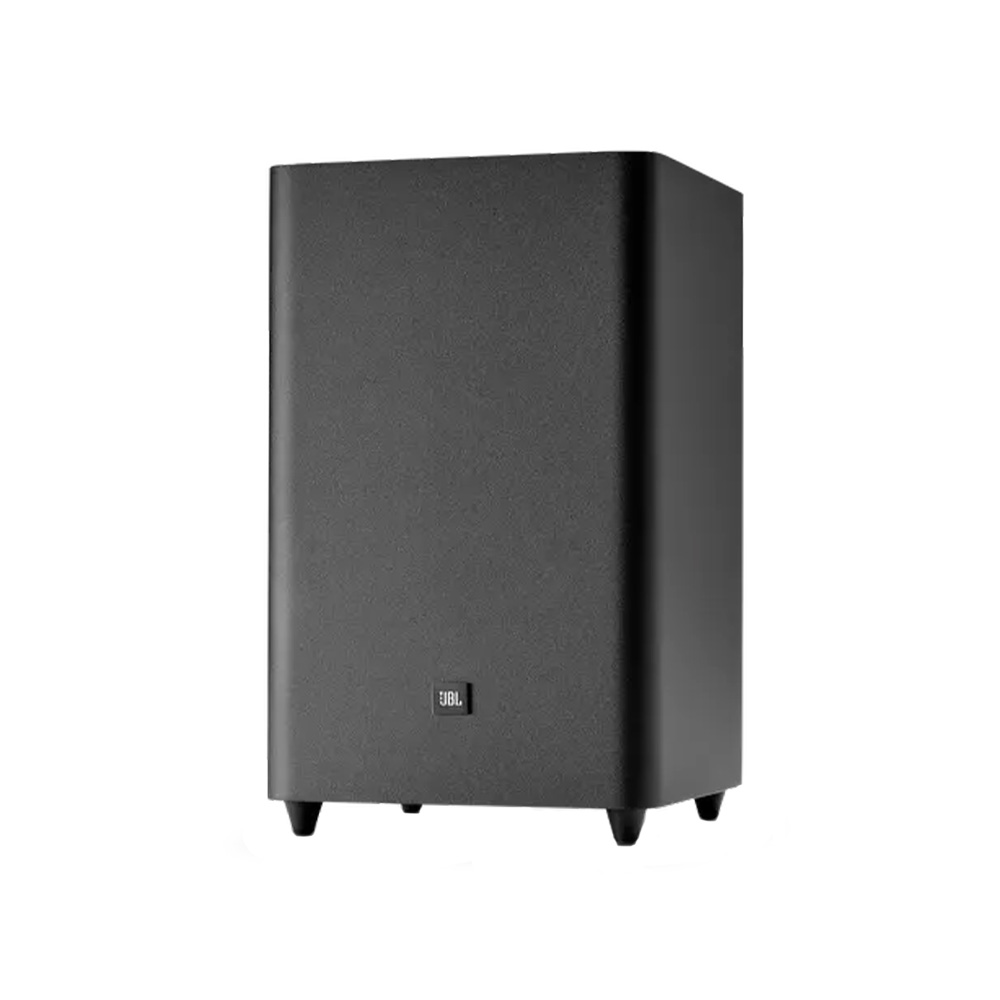

Why just listen to the bass when you can experience it? The 6.5'' wireless subwoofer delivers deep, thrilling sound.

General Specifications
ModelBar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit)
Power supply
100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max. @THD 1%)
300W
Output power (Max. @THD 1%):Yes
2 x 50W (Soundbar); 200W (Subwoofer)
Yes
Transducer4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer)
Soundbar and Subwoofer standby power
<0.5W
Operating temperature
0°C - 45°C
HDMI Video output (With Audio return channel)
1
HDMI version1.4
Audio Specifications
HDMI Video input
1
Frequency response
40Hz - 20KHz
Audio inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Dimensions (W x H x D):
965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar);
240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)
Weight2.16 kg (Soundbar);
5.67 kg (Subwoofer)
Packaging dimensions (W x H x D)1045 x 310 x 405mm
Packaging weight (Gross weight)10.4kg
Control and Connection Specifications
USB Port Type A
USB rating
5V DC/ 0.5A
Supporting file format
mp3, wav
MP3 Codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16KHz - 48 KHz
MP3 bitrate
80kbps - 320kbps
WAV sample rate
16KHz - 48 KHz
WAV bitrate
Up to 3000kbps
Bluetooth profile
A2DP V1.3, AVRCP V1.5
Bluetooth frequency range
2402MHz-2480MHz
Bluetooth Max. transmitting power
<10dBm (EIRP)
Modulation Type
GFSK, π/4 DQPSK, 8DPSK
5G Wireless frequency range
5736.35 - 5820.35MHz
5G Max. transmitting power
<9dBm (EIRP)
Modulation Type
π/4 DQPSK
