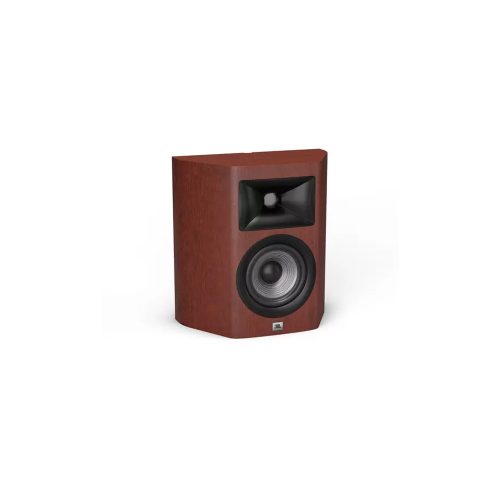

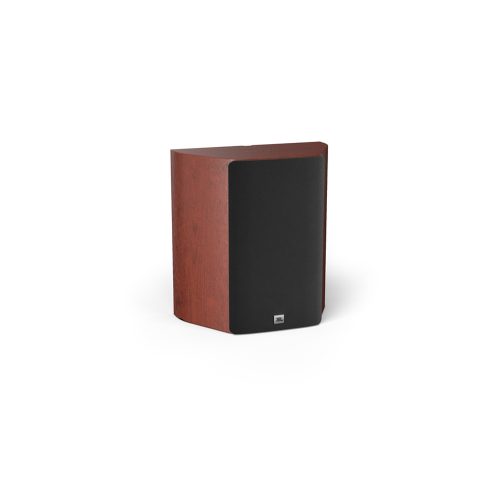

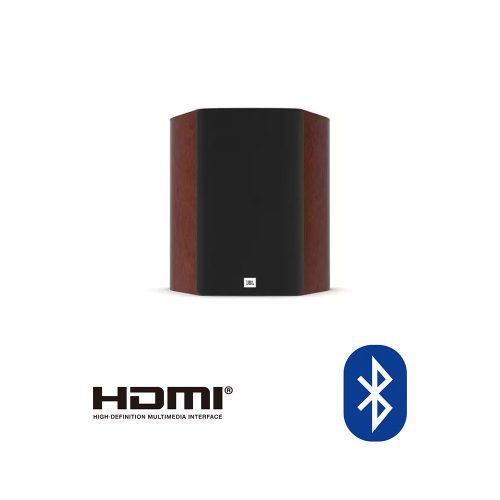

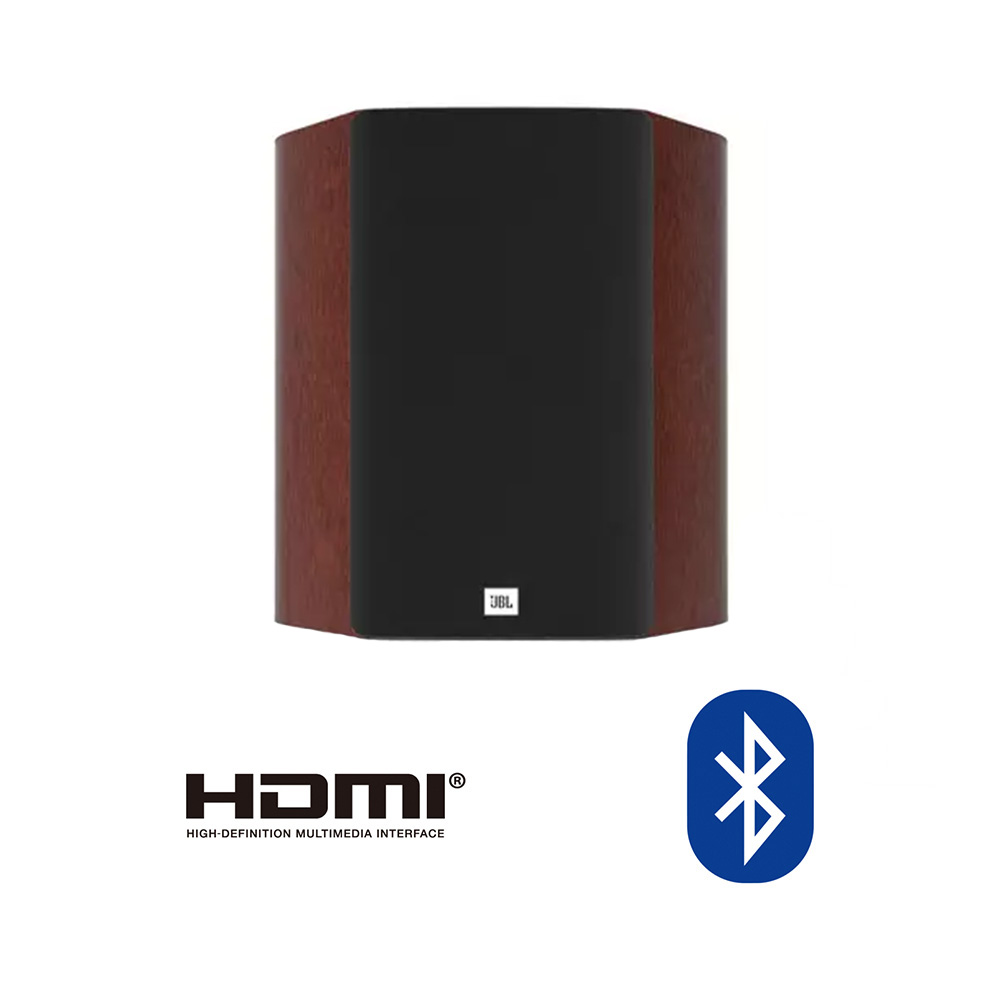

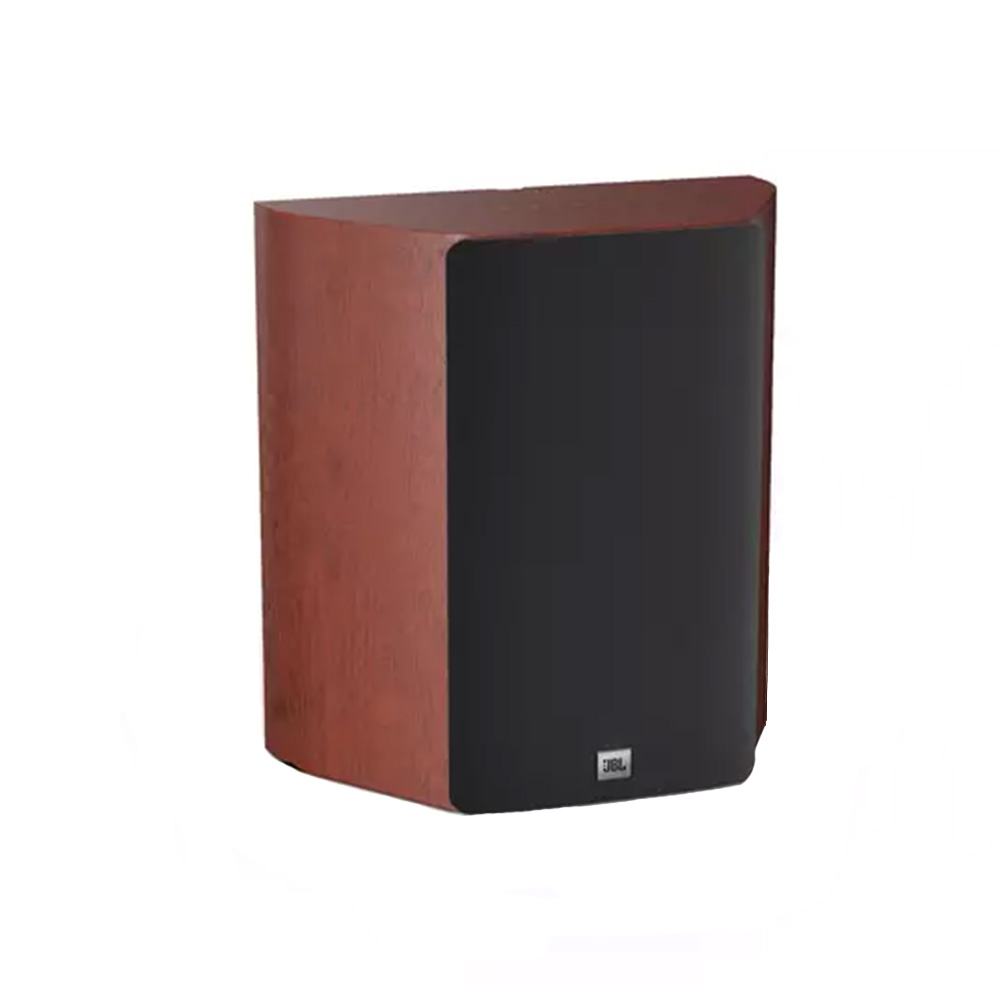

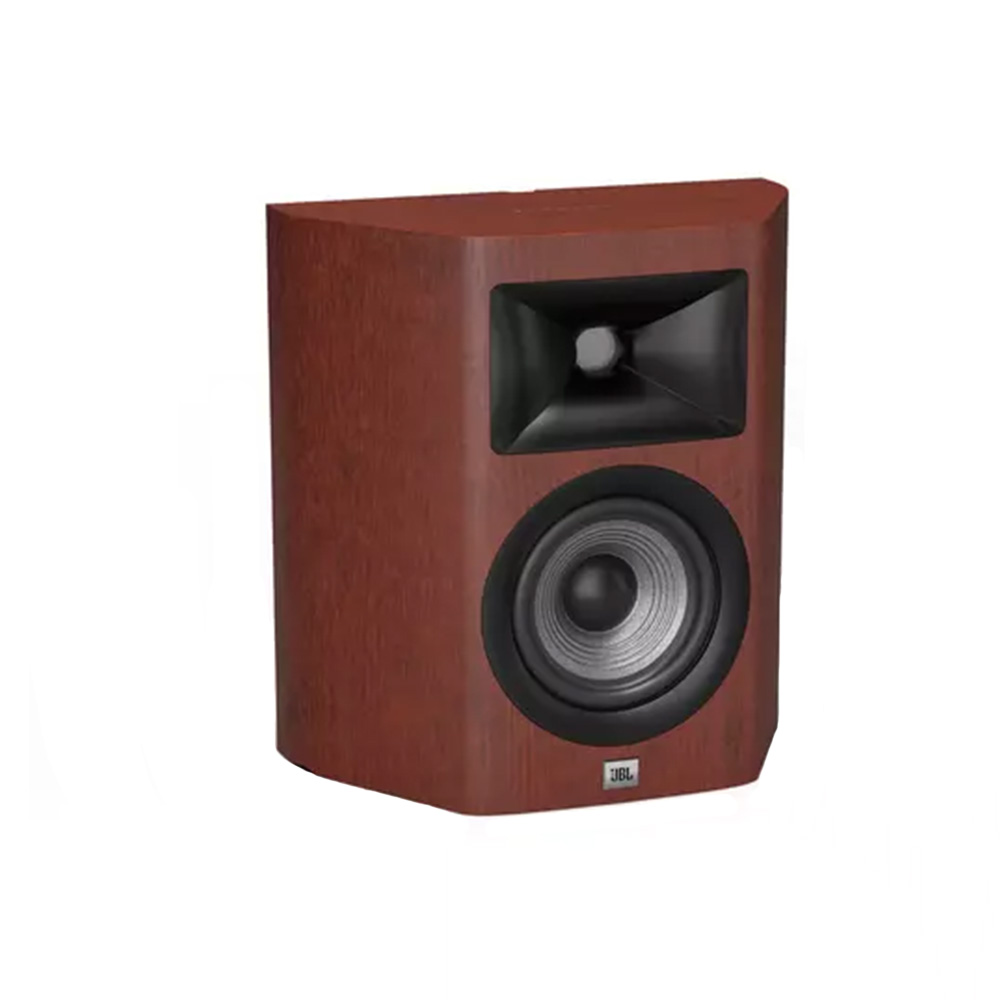

JBL Studio 610

The JBL Studio 610 is a high-performance on-wall loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

Categories: , ,



Top-graded PolyPlass cones

High-quality sounding compression drivers

High-quality sounding compression drivers
 New, appealing form factor

New, appealing form factor

High-Definition Imaging Waveguide With High-Frequency Compression Driver

High-definition imaging Waveguide with high-frequency compression driver
Single 5.25″, 2-way compression driver wall mountable surround loudspeakerYes
5.25″ (133mm) PolyPlas Low-Frequency WooferYes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression DriverYes
Recommended Amplifier Power
Max 100W
Frequency Response
65Hz – 40kHz
84dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies2.4 kHz
Enclosure TypeSealed Enclosure
Dimensions (W x D x H)
250 x 135 x 300mm
