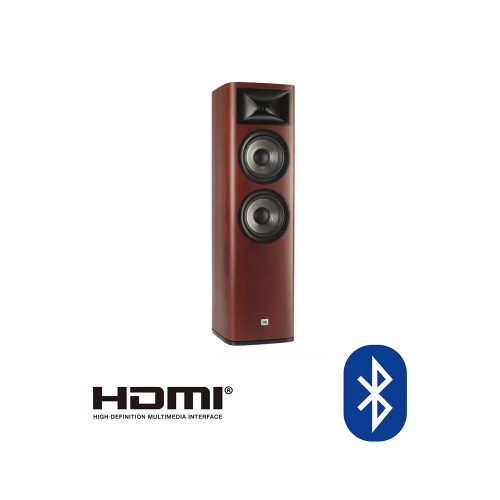

JBL Studio 690

The JBL Studio 690 is a high-performance floorstanding loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with dual 8-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

Categories: , ,

Description

 Top-graded PolyPlass cones

Top-graded PolyPlass cones





High-quality sounding compression drivers

High-quality sounding compression drivers
New, appealing form factor



New, appealing form factor

High-Definition Imaging Waveguide With High-Frequency Compression Driver

High-definition imaging Waveguide with high-frequency compression driver

Dual 8", 2.5-way compression driver floor standing loudspeakerYes
Dual 8" (203mm) PolyPlas Low-Frequency WooferYes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression DriverYes
Recommended Amplifier Power
Max 250W
Frequency Response
36Hz – 40kHz
Sensitivity
90dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies600 Hz, 1.7 kHz

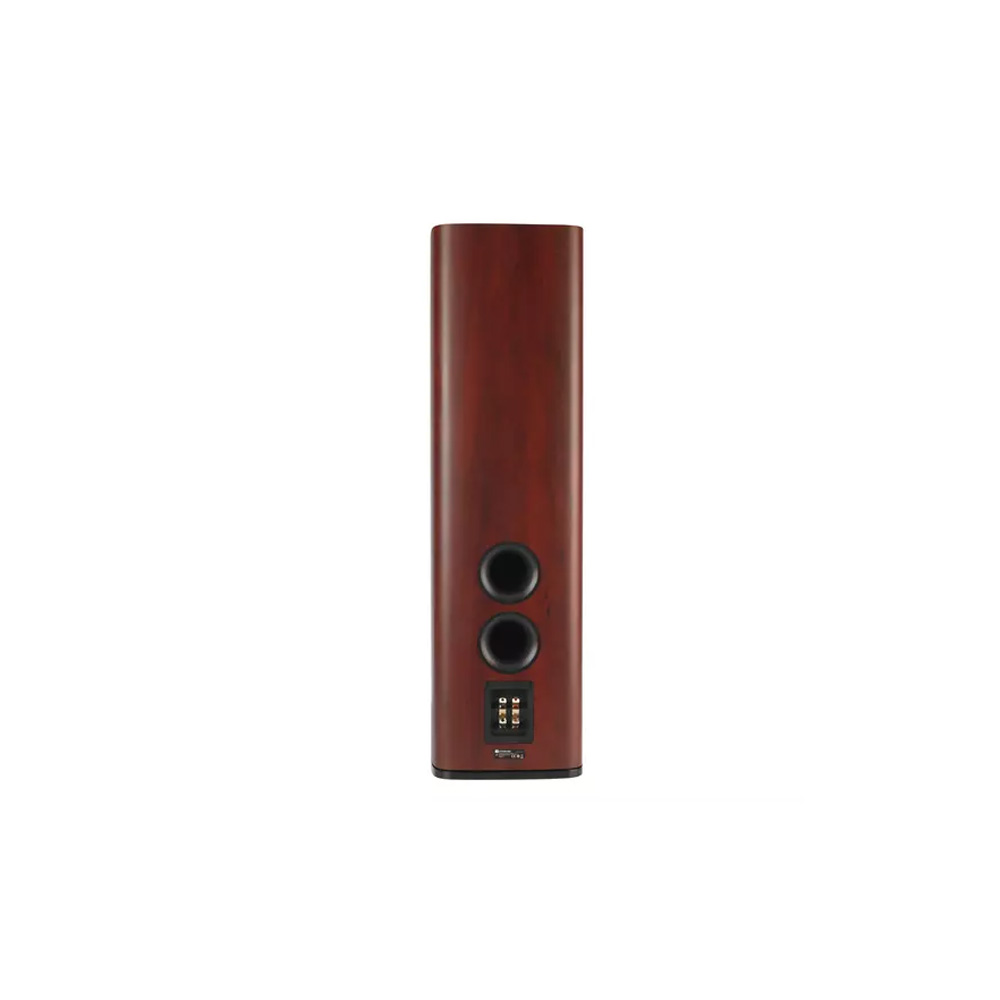

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
300 x 350 x 1058mm
