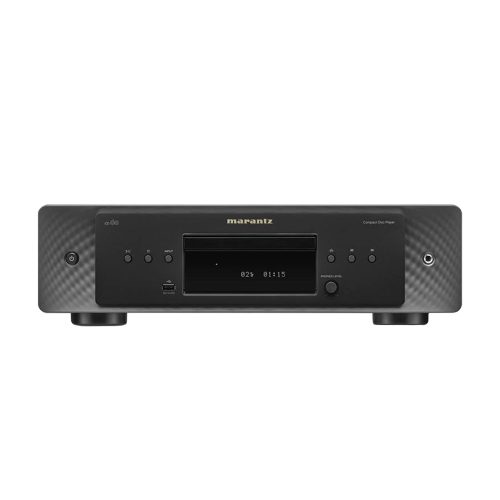

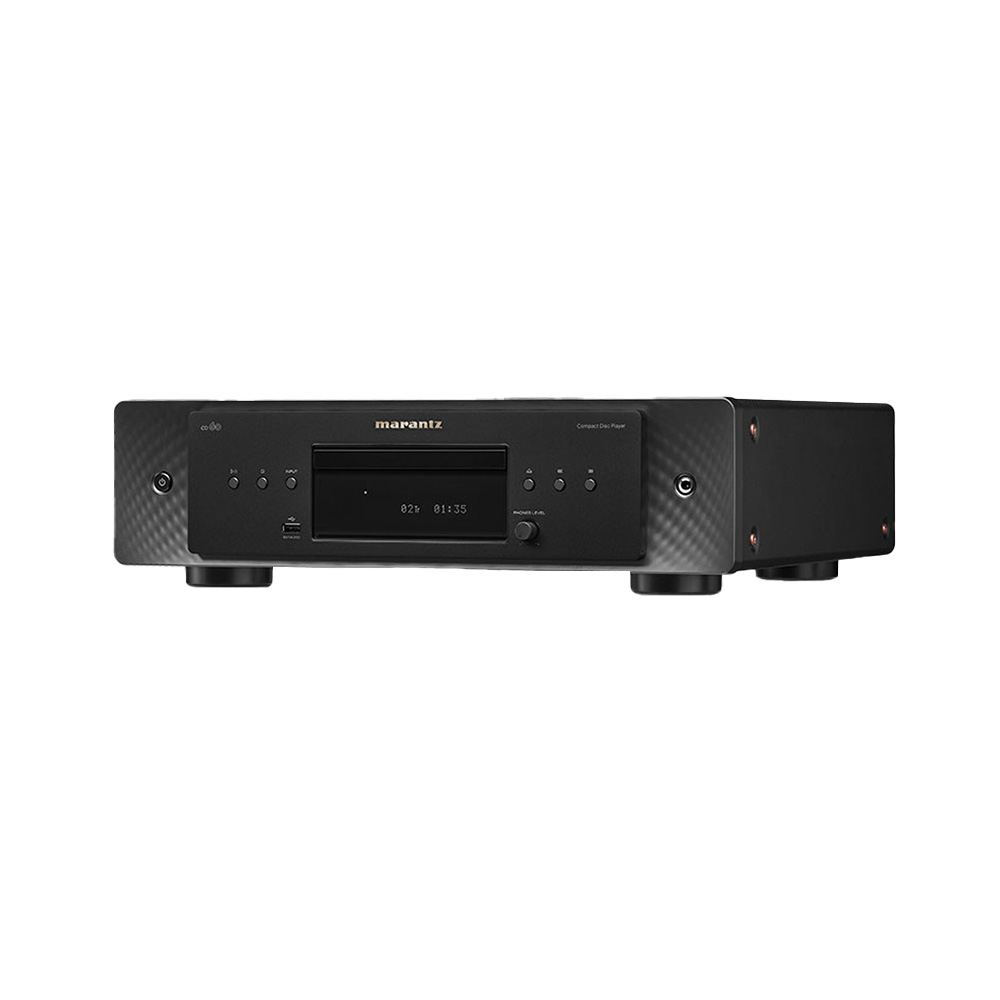

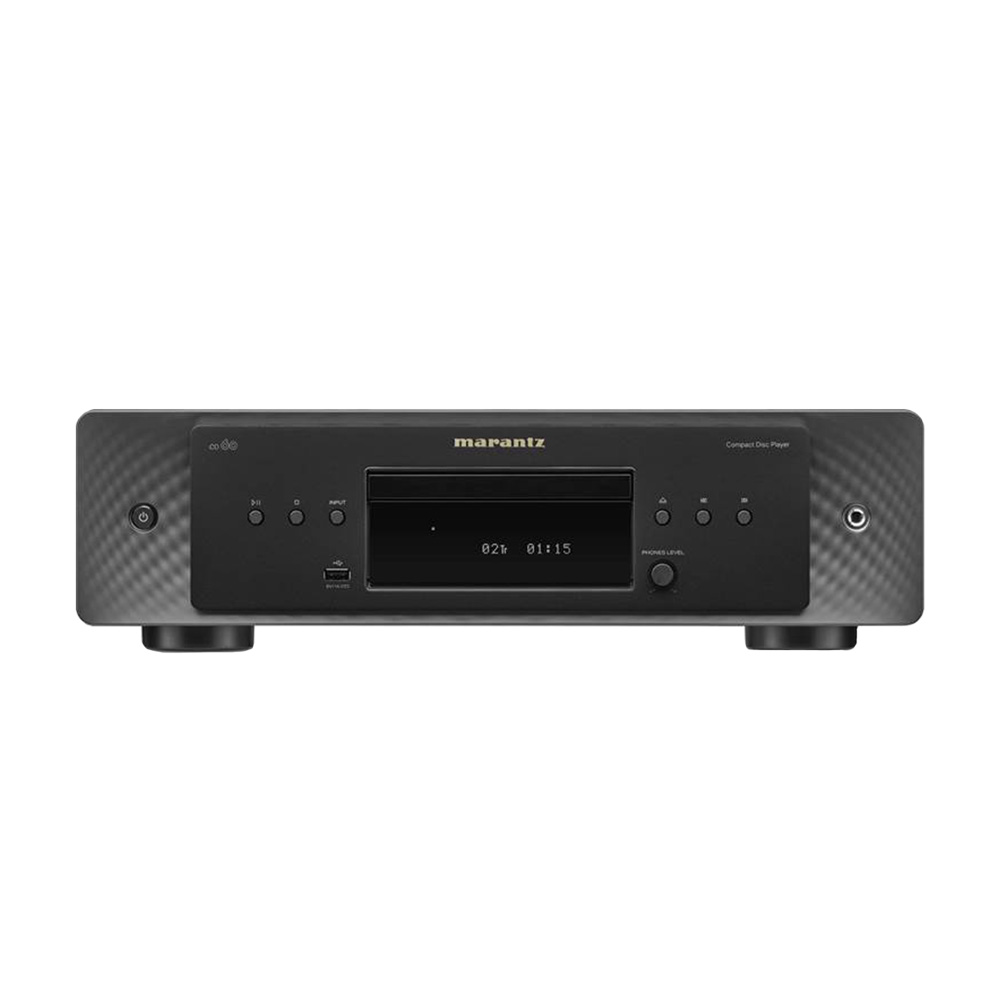

Marantz CD 60

Marantz CD 60

Extraordinary sound and peerless style—Marantz CD 60 celebrates your CD collection with a player engineered to sound better than any other in this class. Built with high-quality materials and Sound Master tuned, CD 60 adds precision CD playback to MODEL 40n or any high-quality audio system.

  • Hyper Dynamic Amplifier Modules
  • Optimized HDAM Circuit
  • High-Current Power Supply
  • Plays Hi-Res Audio USB Sources
  • Reference-Quality Digital-to-Analog Conversion
  • Customizable Digital Filter
  • High-Performance Headphone Amplifier
  • Full-System Remote Control
  • Tuned with Passion
Categories: ,

Description

General
Unit (W x H x D)442 x 129 x 396mm
Net weight7.5kg
Packaging Dimensions (W x H x D)525 × 249 × 511mm
Specifications
Frequency responseUSB DSD: 2Hz – 50kHz (-3dB)
USB PCM: 2Hz – 50kHz (-1.5dB)
CD: 2Hz – 20kHz
Total Harmonic DistortionUSB DSD: 0.0006%
USB PCM 24bit: 0.0005%
CD: 0.0015%
Signal to Noise RatioUSB DSD: 110dB
USB PCM 24bit: 118dB
CD: 118dB
Dynamic RangeUSB DSD: 110dB
USB PCM 24bit: 118dB
CD: 101dB
Line Output Level2.2Vrms
Headphone Output Level28mW / 32 ohms
Power Consumption38W
at Standby0.3W
Audio Feature
HDAMNew HDAM + HDAM-SA2
Power TransformerEI
Headphone AmpHigh slew rate op-amp
+ HDAM-SA2
H/P Amp Gain SettingYes (Low / Mid / High)
Digital FilterFilter 1, 2 Selectable

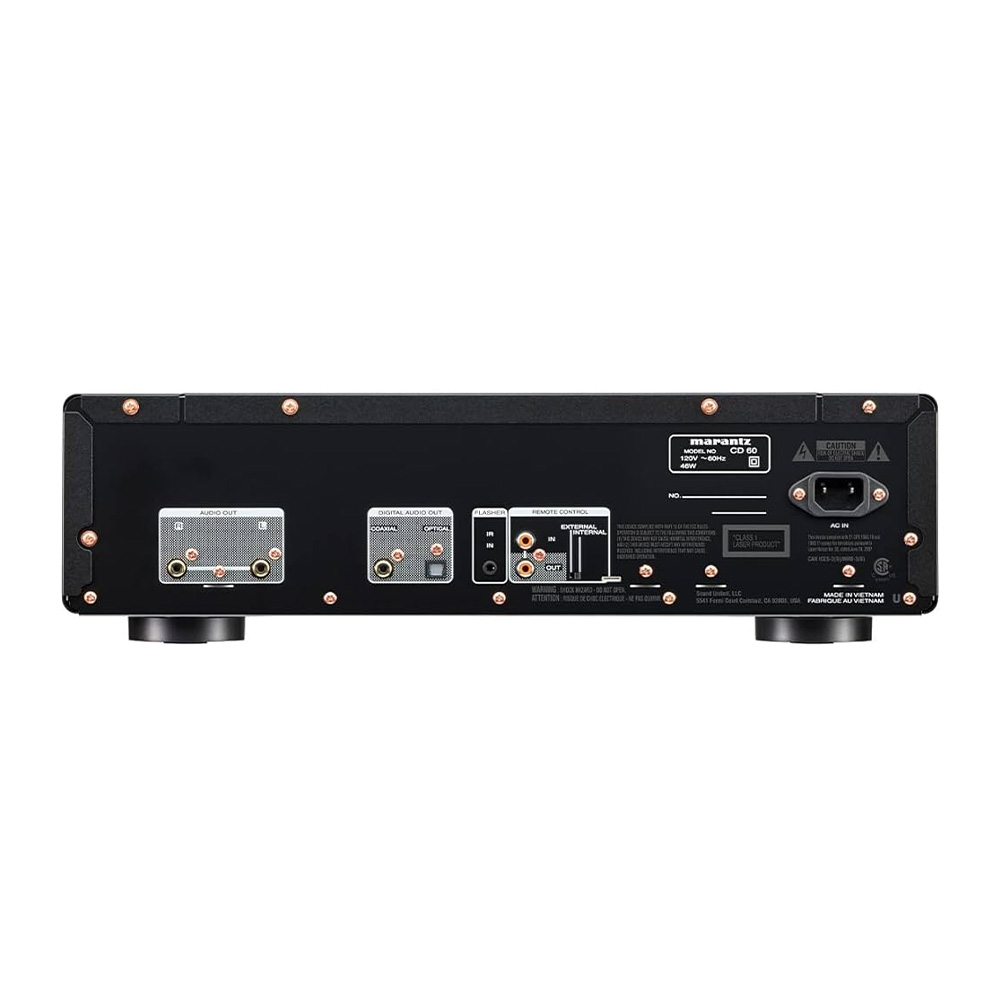

Connectivity / Playback Capability
CD CompatibilityCD / CD-R/RW / WMA / MP3 / AAC
Data Disc CompatibilityDSD / WAV / ALAC
Optical input / output (Maximum Support)0 / 1
Coaxial input / output (Maximum Support)0 / 1
Headphone Output1
Remote Control Bus TerminalYes (RC-5 In / Out)
w/ External / Internal Select Switch
USB A1 (Front)
Mass Storage Class
5V/1A
Support formatFAT 16/32
USB-A: FLAC / WAV / AIFF / ALAC / DSDYes / Yes / Yes / Yes
DSD Native PlaybackYes
Easy to use
Remote ControllerSystem Remote
(Amp and CD Player Control)
Control with App via Network Player (Use Remote Control Bus)Yes
Timer Play (Need external audio timer)Yes
On/Off selectable in Menu
Auto Standby ModeYes
