| Power Amplifier |
| Number of Powered Channels | 9 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | 125W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235W |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Multichannel Surround Technologies |
| DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Max Number of Processing (Preamp Channels) | 11.4 |
| Inputs/Outputs |

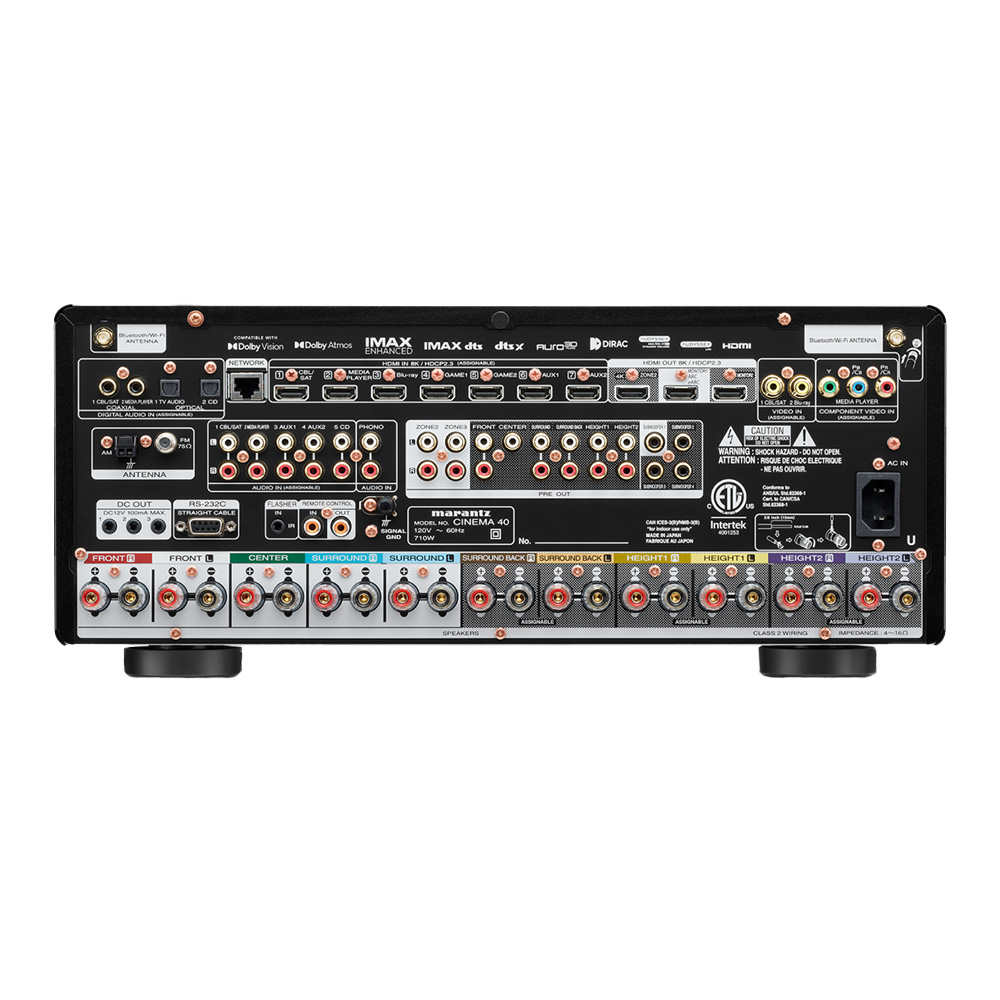

| Composite In / Out | 2 / 0 |
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out via HDMI | Yes |
| Analog In / Fixed Level Out | 5 in / 0 out |
| Number of Speaker Terminals | 11 |
| Front Inputs | USB-A |
| HDMI |
| Total HDMI Inputs / No. Support 8K | 7 / 7 |
| HDMI Upscaling | 1080P/4K to 8K |
| Max resolution @ framerate | 8K @ 60Hz, 4K @ 120Hz |
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| DSD Audio over HDMI | Yes |
| Performance Technologies |
| Copper Plated Chassis | No |
| Toroidal Power Supply Transformer | No |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
| Acoustic / Room Correction |
| Audyssey | MultEQ XT32 |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| Music File Support |
| Lossy Formats | MP3 / WMA / AAC |
| Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
| DSD Audio | 2.8MHz / 5.6MHz |
| Gapless Playback | FLAC, WAV ,ALAC ,DSD |
| Network Audio Sharing | Yes |
| Streaming Services |
| HEOS Multi-room and Streaming | Yes |
| AirPlay Audio Streaming | Airplay2 |
| Internet Radio | TuneIn |
| Network Connectivity |
| Ethernet Ports | Yes |
| Wi-Fi (include version / band) | Yes |
| Bluetooth (Include version) | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
| Smart Home Integration And Control |
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
| Apps for Smart Phones & Tablets (Ios & Android) | Marantz AVR Remote App, HEOS |
| Multi-Room zones | 3 |
| Others |
| Front Display | 2 line FLD + port hole OLED |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |
| General |
| Available Colors | Black/Silver-Gold |
| System Remote Control | RC048SR |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO on/off) in W | 65 / 110 |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions (W x H x D) | Antenna (Horizontal): 439.42 x 185.42 x 411.48mm (17.3″ x 7.3″ x 16.2″)
Antenna (Vertical): 439.42 x 254 x 411.48mm (17.3″ x 10″ x 16.2″)
W/o Antenna: 439.42 x 185.42 x 401.32mm (17.3″ 7.3″ 15.8″) |
| Weight | 15.10kg (33.3 lbs) |
