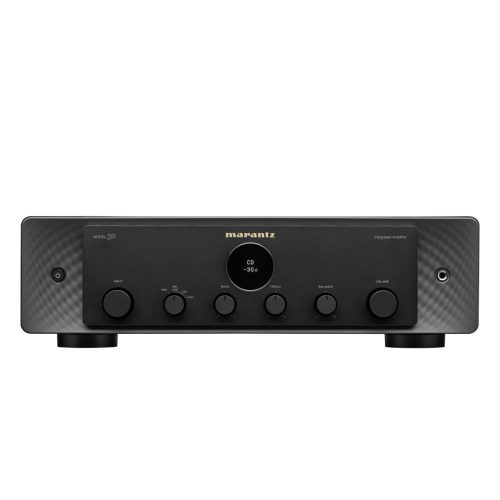

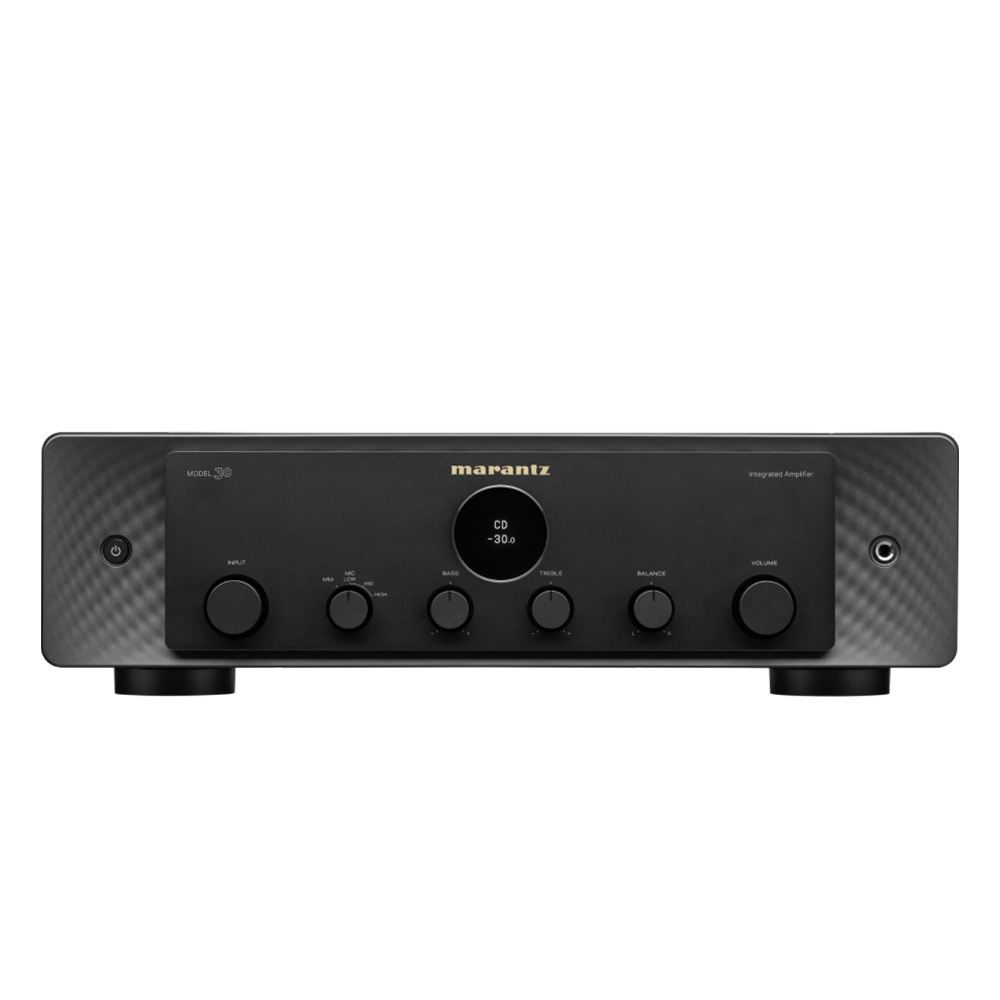

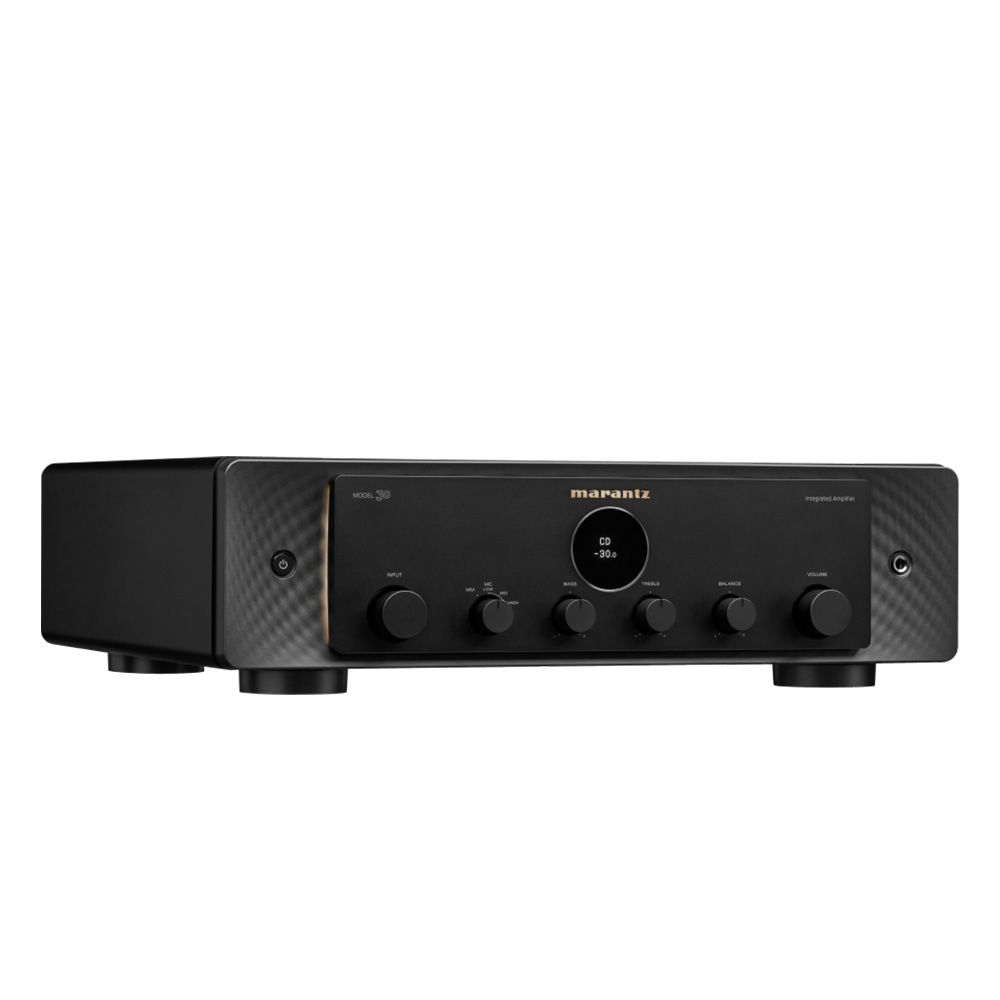

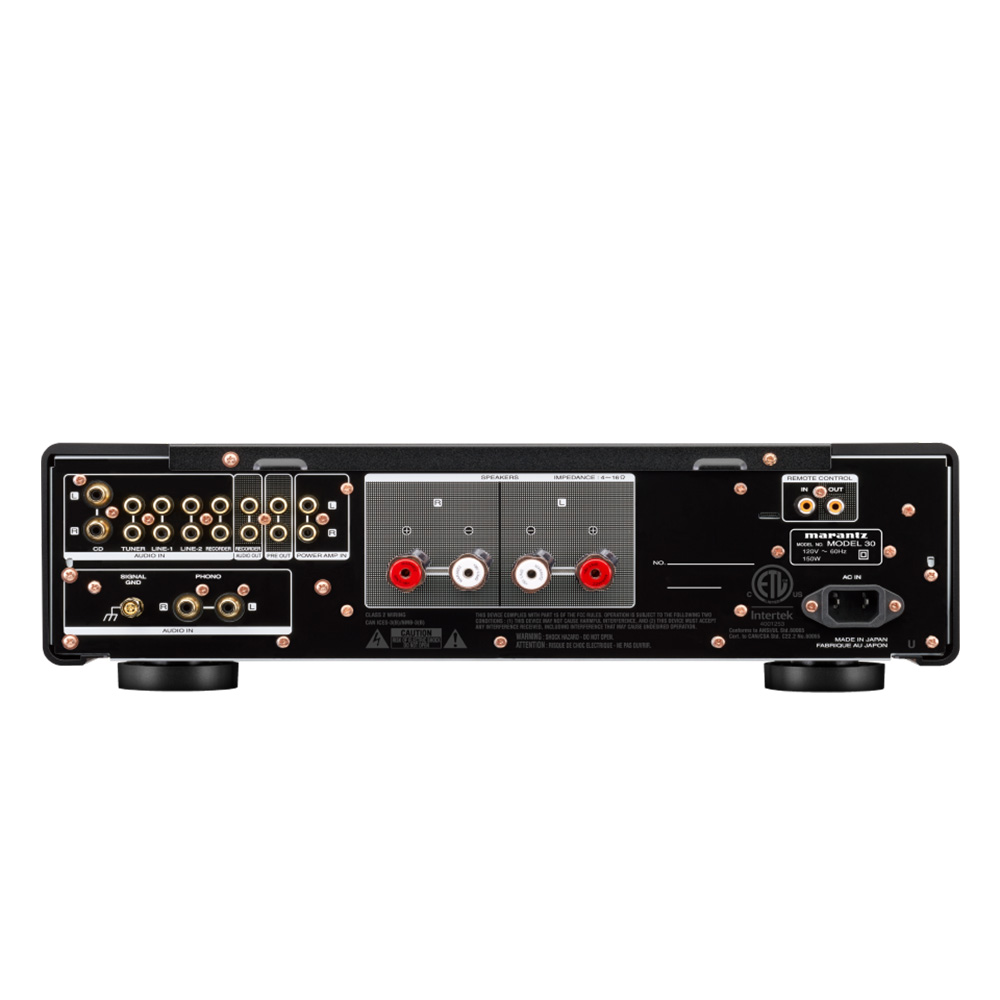

Marantz Model 30

Get the most musical sound possible from this beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make all your music unforgettable.

• Custom-built preamplifier with Marantz HDAM technology
• Tuned with passion by the Marantz Sound Master
• Output: 100W + 100W (8ohm), 200W + 200W (4ohm)
• Fully-discrete design for signal purity
• Custom HDAM®-SA3 circuitry for clean, optimal dynamics
• Separate amp and preamp power supplies reduce interference
• Toroidal transformer dedicated to preamp for clarity and power
• Current feedback preamp design with its wide-range circuitry
• MM/MC Phono input with its Premium Phono EQ circuit
• Brass machined input terminals for CD and Phono
• Marantz original high-quality/high-purity copper speaker terminals
• Linear volume control with new electric volume system
• Amplifier design inherited from our flagship models

Categories: ,


Exquisite Sound Tuning

MODEL 30 continues the renowned heritage of exquisite Marantz amplifiers. Tuned by the Marantz Sound Master who channeled his passion, experience, and extraordinary ear into the amplifier design.


The Most Musical, Accurate, Detailed Sound

MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM. By custom-curating hundreds of individual parts, rather than adopting an off-the-shelf solution, the MODEL 30 HDAM significantly outperforms standard integrated circuits to create the unique musicality you always expect from Marantz.



Marantz Musical Premium Phono EQ

Envisioned to deliver optimal sound quality by simplifying the signal path – vital given the delicate nature of phono signals – the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier.


MC / MM Phono Input Impedance Selector

In order to optimize sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector. The input impedance can be adjusted to three different settings: MC LOW (33 ohm), MC MID (100 ohm) and MC HIGH (390 ohm).


Built For Generations

Like its counterpart, the SACD 30n Streaming CD Player, the MODEL 30 Integrated Amplifier is designed to the highest standards.


More Than 65 Years Of Audiophile Heritage


Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because music matters, the MODEL 30 continues Marantz’s long tradition of delivering a best-in-class listening experience for music and cinema. Your music always sounds better on a Marantz.


Output Power
Rated Output Power100W + 100W (8ohm)
200W + 200W (4ohm)
JEITA Power outputNo
Amplifier CircuitSwitching Amp (Hypex NC500/SMPS600 by single)
Power TransToroidal w/case
Pure DirectNo
Jitter reducerNo
Wide Range5Hz – 50kHz
Total Harmonic Distortion0.005% (1kHz, 8Ω)
Damping Factor500
Input Sensitivity: Phono inputMM: 2.3 mV / 39 kohm
MC: 250
Input Sensitivity: CD/Line/Recorder220 mV / 13kohm
Input Sensitivity: Power Amplifier input1.1 V / 13kohm
SN RatioPHONO (MM): 88dB
PHONO (MC): 75dB
CD: 107dB
Computer music file streamingNo
Gapless Playback Music ServerUSB ANo
Internet radioNo
Wi-Fi SharingNo
DisplayYes (Porthole, OLED)
App Control via Network PlayerYes
System Remote ControllerYes (New system remote controller to control SACD 30 and MODEL 30)
Trigger 12VNo
TV Auto-play (Opt/Coax digital-in sensor)No
Unit (W x H x D)443 x 130 x 432mm
Packaging Dimensions (W x H x D)534 x 255 x 522mm
Net weight14.8kg
Packaging gross weight17.6kg
Power Consumption130W
at Standby0.2W
at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB)No
