Stealth Acoustics Invisible Speakers LR8G

2-WAY INVISIBLE IN-WALL OR IN-CEILING SPEAKER

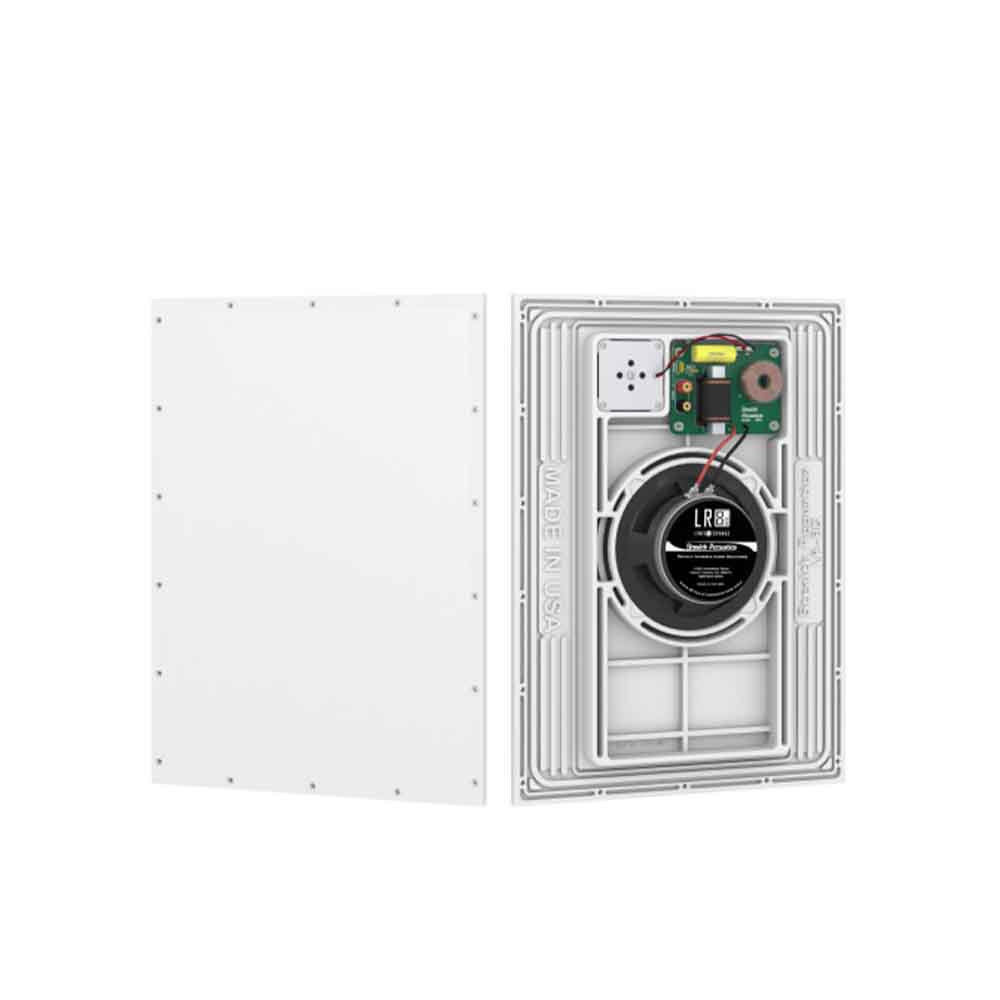

The Stealth Acoustics model LR8G is a two-way, full-range loudspeaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.

Description

Frequency Response:
45Hz to 20kHz
Power Capacity:120 watts RMS

60 watts minimum
recommended power
Protection:Two independent self-resetting
devices (low and high frequency)
Sensitivity:83 dB (1 watt / 1 meter)
System Impedance:8Ω nominal
Driver Components:High frequency:1” (25 mm) neodymium motor
Low-frequency:1.5” (38 mm) voice coil, 8” (203 mm) woofer

Ceramic 20 oz. (622 gr) magnet
Polar Dispersion:170 degrees vertical and horizontal

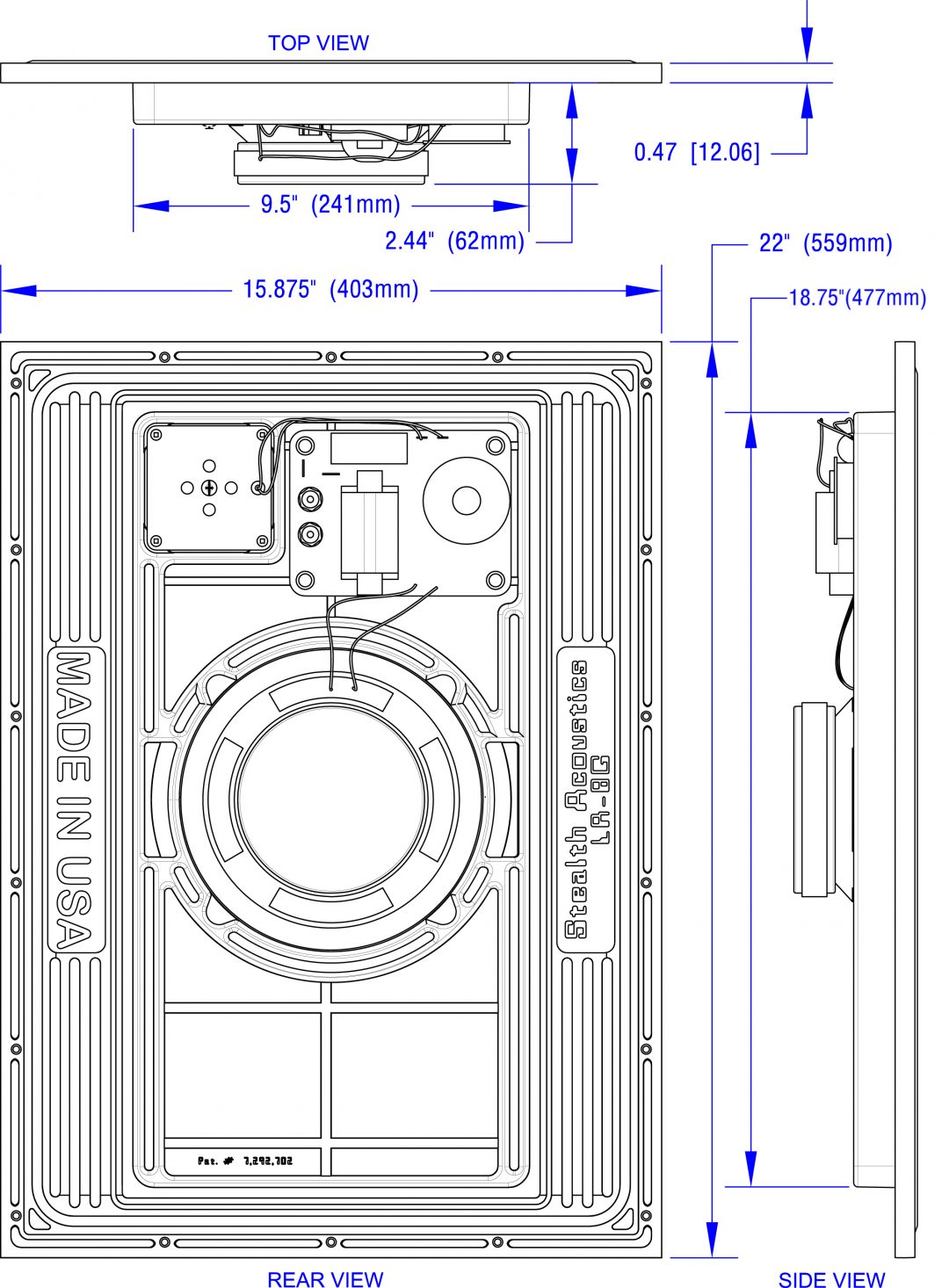

Dimensions:W15-7/8” (403 mm)
H22″ (559 mm)
Mounting Depth:2-1/2” (58 mm)
Product Weight:14 lbs. (6.3 kg) each
Shipping Weight:32 lbs. (14.5 kg) per pair

20 lbs. (9.0 kg) per single
Included Accessories:Mounting shims

Mounting screws

Terminal wrench
Optional Accessories:PS-22 PlaceSaver

BX-22 MDF Acoustical Back Box

MBX-22 UL Listed Metal Back Box

MBA-22 UL Listed Adjustable Metal Back Box

MBC-22 Concrete Back Box

SK-1 Shim Kit

CVXMR 100, 75 and 25 volt Constant Voltage Transformers

WARRANTY – Extended Warranty 15 year
