SUB-80X

Earthquake SUB-80X is the market value performance leader. No other subwoofer gives so much bass and punch in this class. Everything superfluous is cut away and all resources concentrated on the most important, namely Bass – hard-hitting, detailed, and in massive quantities. Even with its incredibly low price, the SUB-80 is built right with strong quality components all the way through.

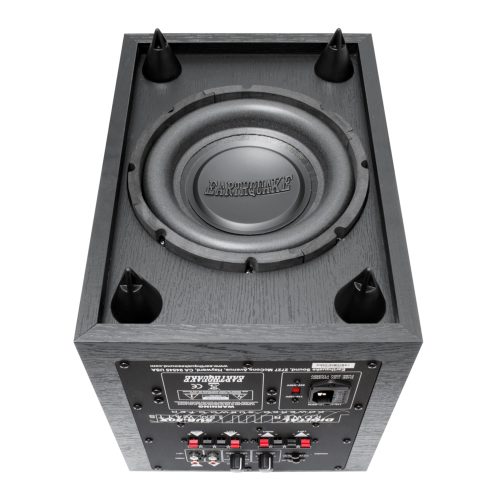

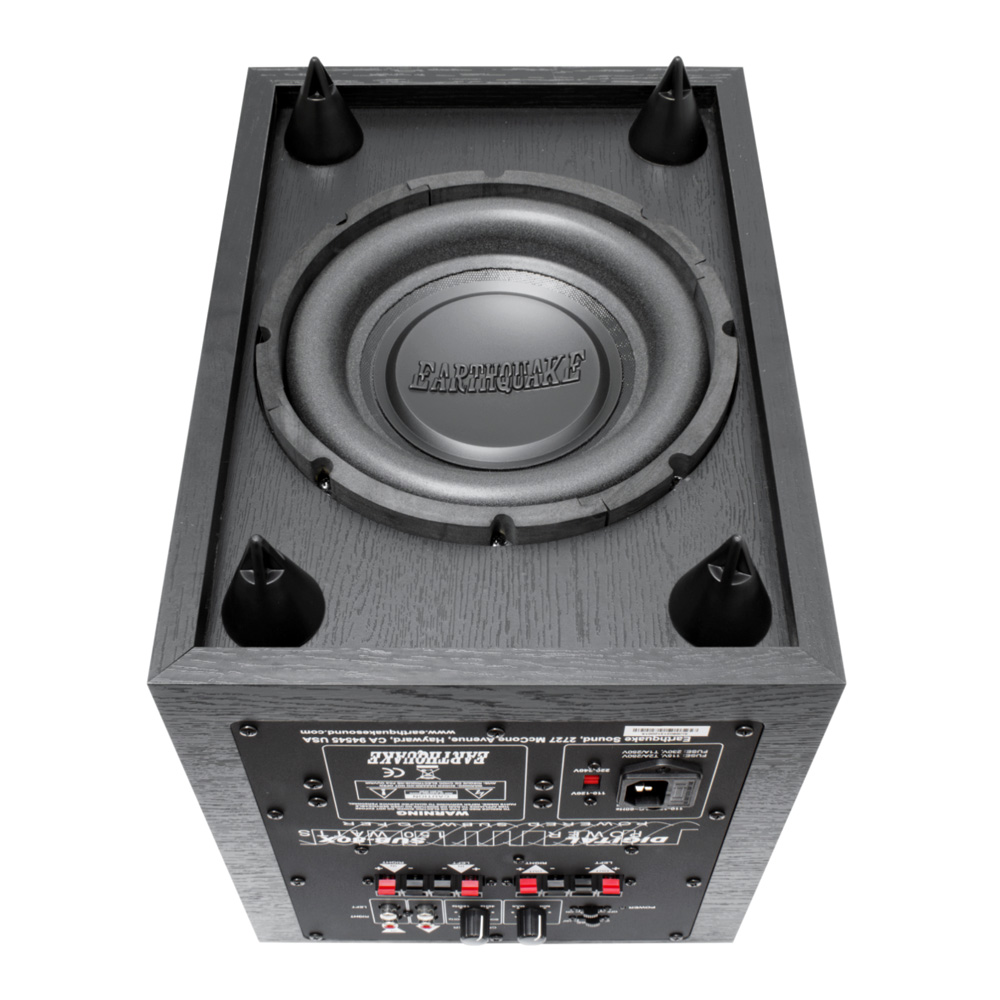

With its compact and rational design, this subwoofer absolutely does not compromise on sound quality. It has surplus and control even under hard and continuous operation. To enhance bass output of the SUB-80X, it is fitted with an optimized front facing flared bass port and also features a down firing construction that uses the floor as an acoustic amplifier. The impressive performance is complemented by a black ash finish that will fit in with any interior. The SUB-80X can fill the room with accurate musical bass and thundering sound effects. It offers versatile connectivity options and is compatible with all satellite speakers.

  • 8″ long throw woofer with santoprene surround
  • 48oz high gauss magnet
  • 2″ high temperature voice coil

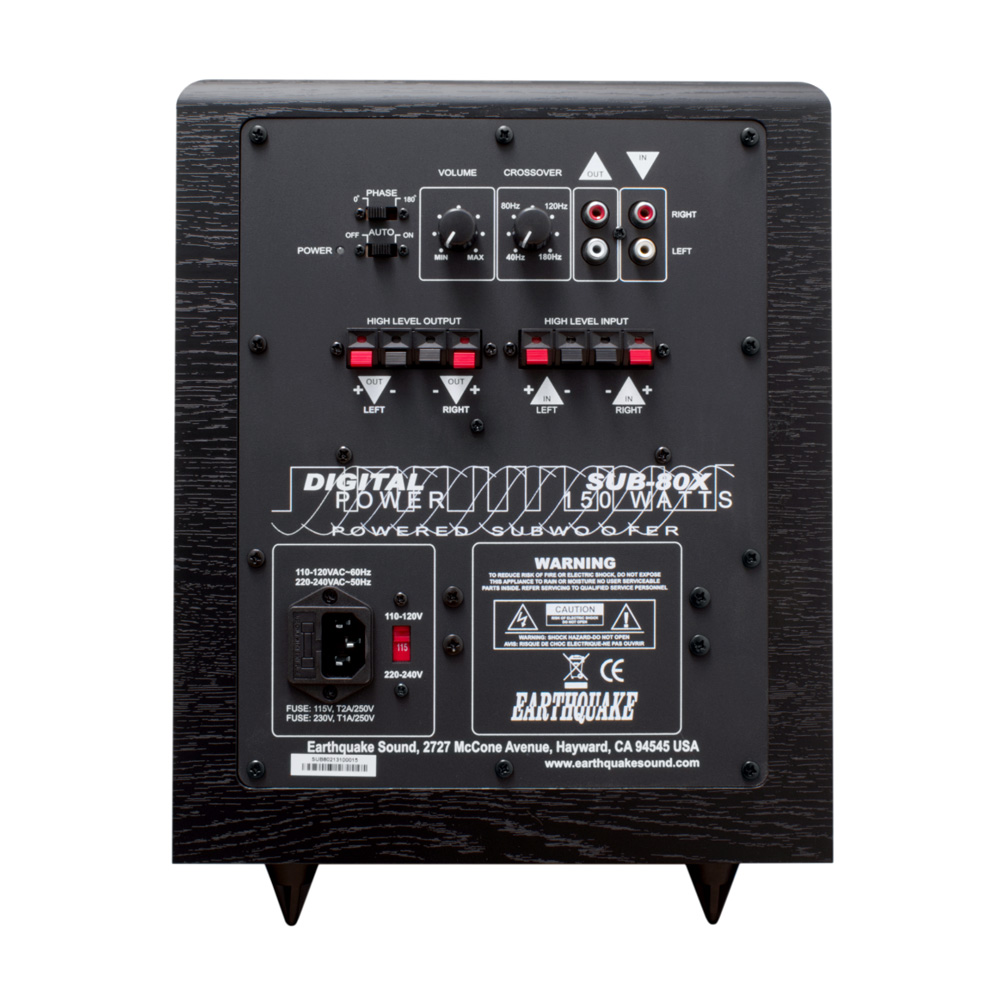

  • Speaker level input up to 10 volts
  • RCA level (low) audio input
  • Auto turn on / signal detection circuitry
  • 0–180° phase shift switch
  • Unobtrusive and easy to position
  • Versatile setup options with broad compatibility
  • Great option for apartments, condos, and town homes

Description

Power Output150W continuous
300W peak
Crossover Slope12db/Octave
Crossover Frequency40Hz–180Hz
Frequency Response23Hz–180Hz
Typical THD0.09%
89dB 1W/1M
FS38Hz
Qts0.516
Input Impedance47,000 ohms
Input Sensitivity50mV–2.3V
Power Supply115V/230V (50Hz~60Hz)
Fuse Rating1 amp
Dimensions (W x H x D)241 x 343 x 349mm (9.5″ x 13.5″ x 13.75″)
Weight9.52kg (21 lbs)
