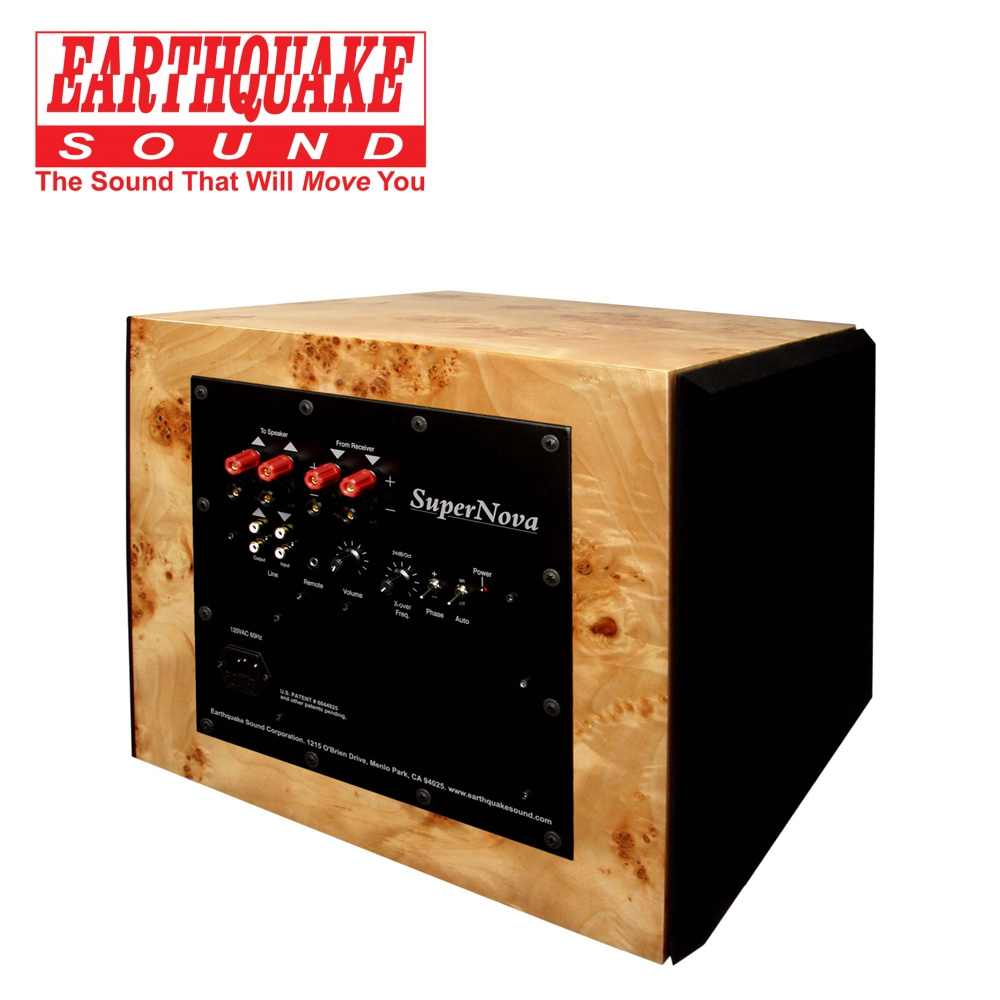

Supernova MKV-10 Burl

Earthquake’s SLAPS Passive Radiator
Earthquake’s patented symmetrically loaded passive radiator allows the user to enjoy the benefits of deep bass and the full impact of sound effects without having to put up with a giant eyesore in the room. SLAPS lets Earthquake subwooofers go very low without having to increase enclosure volume. SLAPS can be used in car as well as in home-audio applications. Wherever subwoofers must be tuned to a low frequency without increasing the enclosure volume, and without the need to deal with the traditional shortcomings of port tuning such as port noise, port length, and availability.

Earthquake’s Overdrive
Overdrive is a patented feature that allows the Supernova amplifier to generate maximum output with virtually any level of input audio signal.

Earthquake’s Optical Distortion Limiting Circuitry (ODL)
ODL was created to eliminate audio amplifier input stage clipping without distorting the audio signal.

Description

  • Built-in Class “D” amplifier
  • 10″ DBXi high excursion active driver
  • Patented 10″ SLAPS (Symmetrically Loaded Audio Passive System)
  • ODL (Optical Distortion Limiting) Circuitry
  • Volume Control
  • Remote Control Detection
  • Low level RCA inputs and outputs
  • High level inputs and outputs
  • ON/OFF switch w/ auto ON option
  • Phase flip switch
  • Luxurious Burl Wood Skin Veneer
Power Output600W RMS Class “D”
1200W MAX
Crossover Slope24db/Octave
Frequency Response18Hz-145Hz
Phase delay0-20ms
Input Impedance18kOhm
Dimensions609.60 x 508.00 x 508.00 mm(24″ x 20″ x 20″)
Weight29.48 kg (65 lbs)
