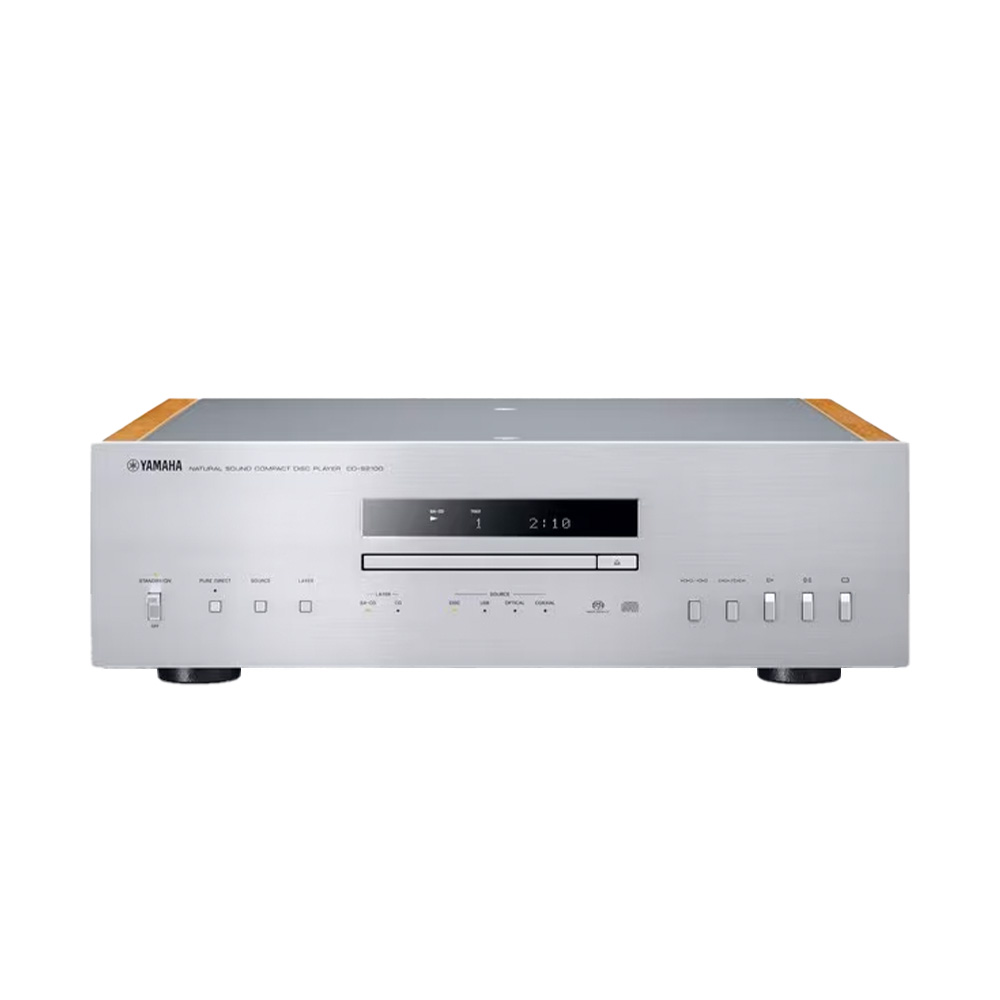

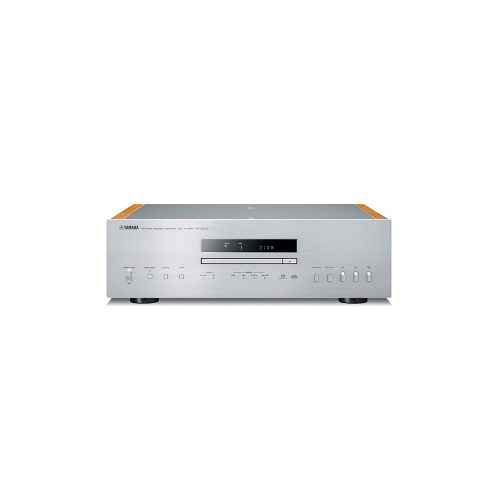

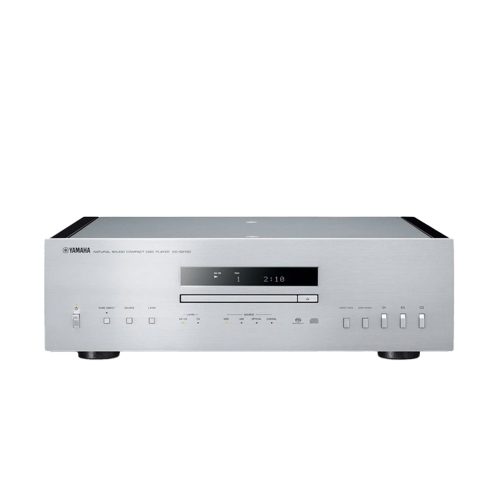

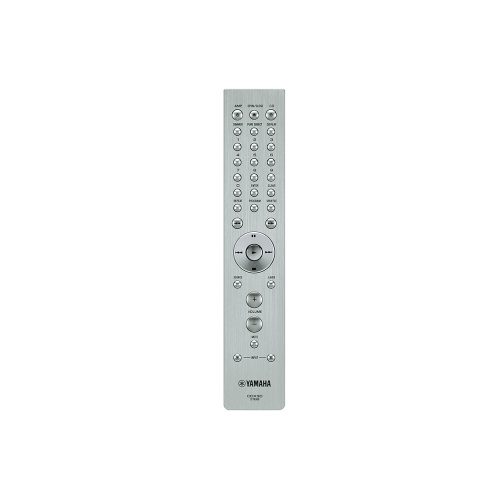

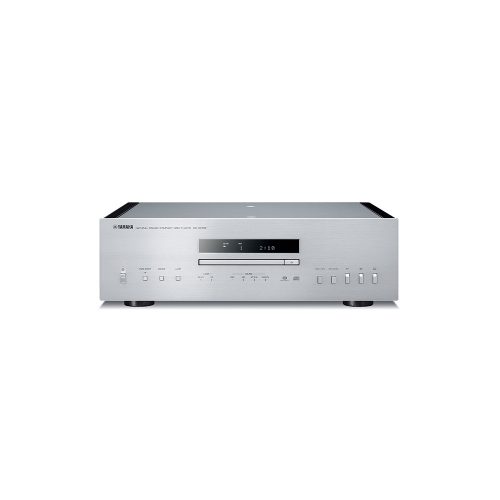

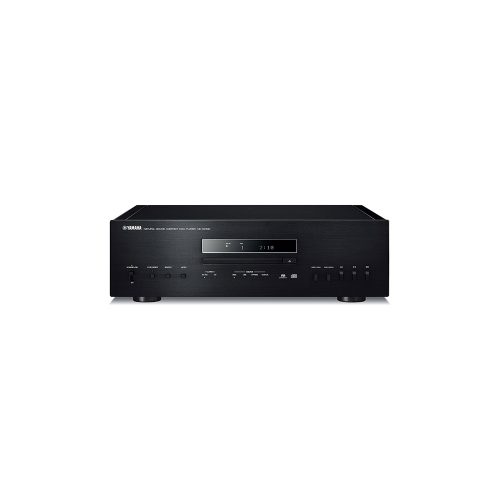

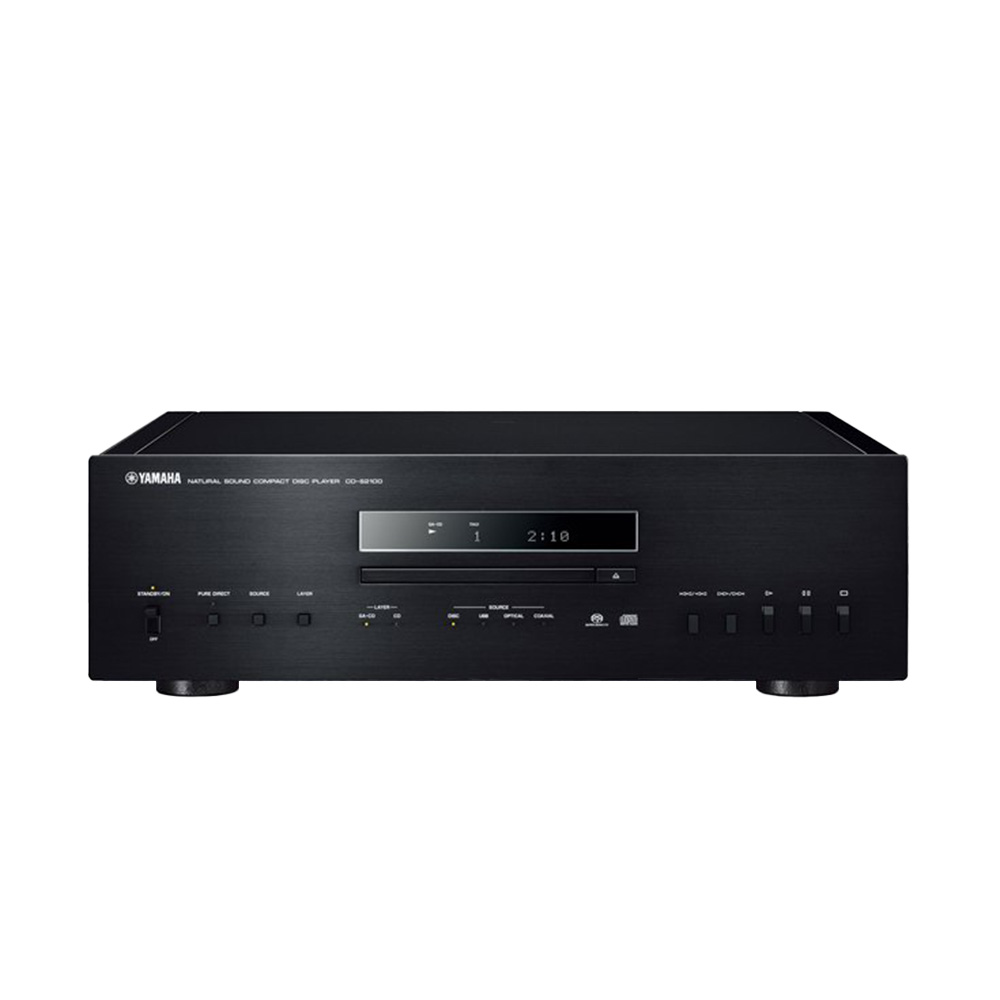

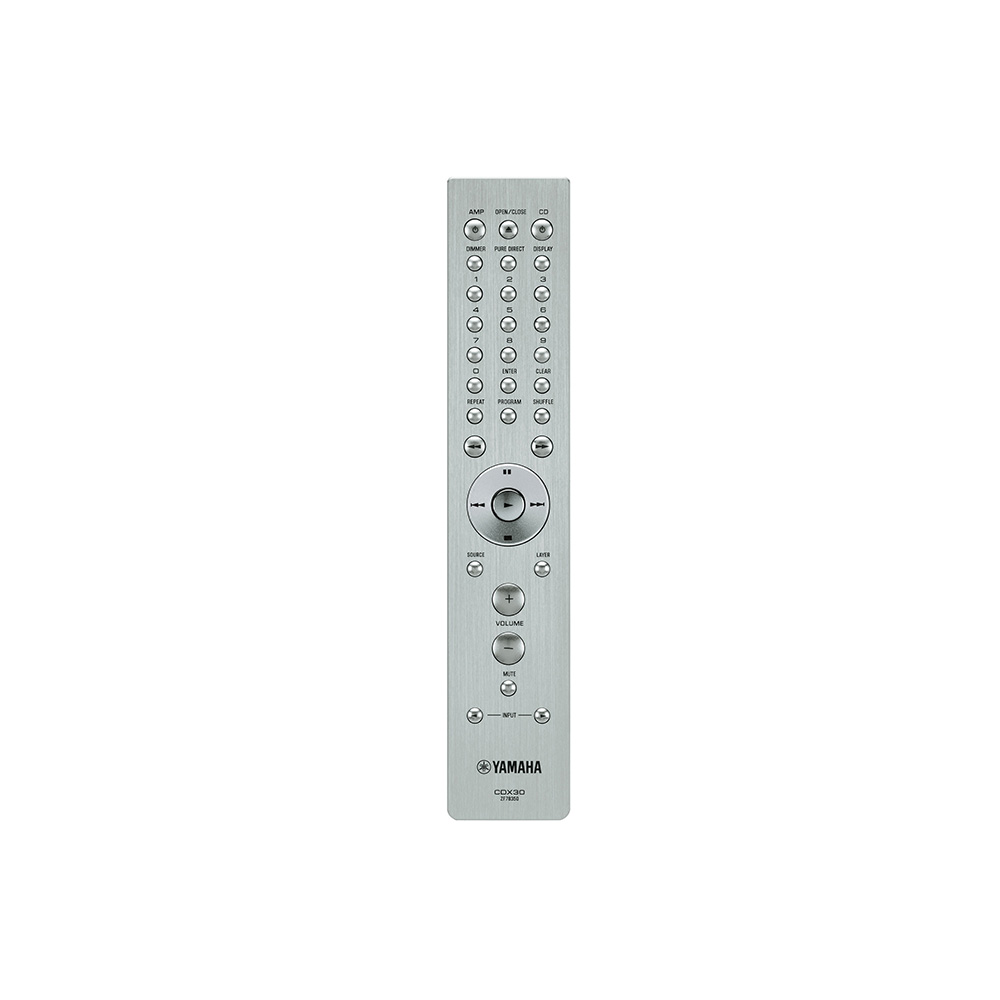

Yamaha CD Player CD-S2100

New circuit design for elimination of audio loss, plus high-precision drive mechanism for reproduction accuracy. This high-grade CD player delivers the new sound of Yamaha, and is equipped with high-performance USB audio and DAC, and other advanced functions.

  • Left-right symmetrical construction, independent digital/analogue circuit configuration, with top priority on sound quality
  • Digital/analogue circuitry with integrated power supplies and screw type connections eliminate signal transmission loss
  • Single-stage configuration I/V conversion circuit enables direct analogue output
  • Independent power supplies with complete separation of digital and analogue
Categories: , ,

Description

Yamaha

Left-right symmetrical construction, independent digital/analogue circuit configuration, with top priority on sound quality

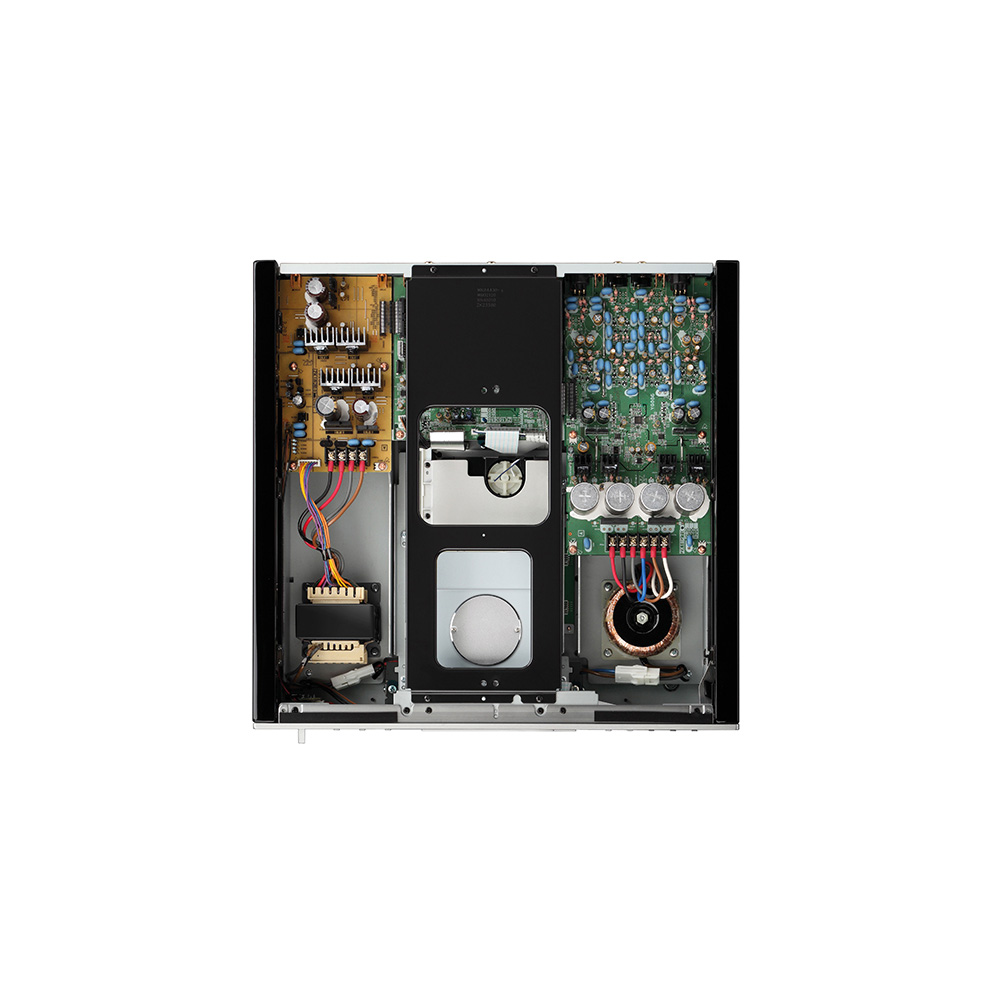

The CD-S2100 has completely symmetrical construction: the rotating loader mechanism is in the centre, the digital power supply and circuit board are on the left side, and the analogue power supply and circuit board are on the right. Completely isolating the digital unit and the analogue unit eliminates detrimental impacts of interference between the circuits, while achieving ideal weight balance. The centre frame that extends from the front to the back of the body and the front panel made of 5mm (1/4”) thick aluminium increases rigidity of the entire chassis and ensures stable disk play.



Digital/analogue circuitry with integrated power supplies and screw type connections eliminate signal transmission loss

The internal design of the CD-S2100 does not separate the power supply circuit boards, which include the power transformer; the block capacitors are mounted directly on the respective digital/analogue circuit boards. Thus, an original board configuration which integrates the power supply circuits was adopted. Eliminating cabling from the power supply circuits to each circuit board and mounting directly have the benefit of reducing connection loss, as well as achieving low impedance. Moreover, cabling from the power transformer utilises the same screw-type connections we’ve given the companion A-S2100 Integrated Amplifier. Connecting directly without soldering achieves thorough contact point loss and low impedance. Signal is transmitted to the amp without loss of any information that has been read, delivering sound reproduction filled with a sense of energy and crisp openness—the over-arching aim of the S2100 Series.



Single-stage configuration I/V conversion circuit enables direct analogue output

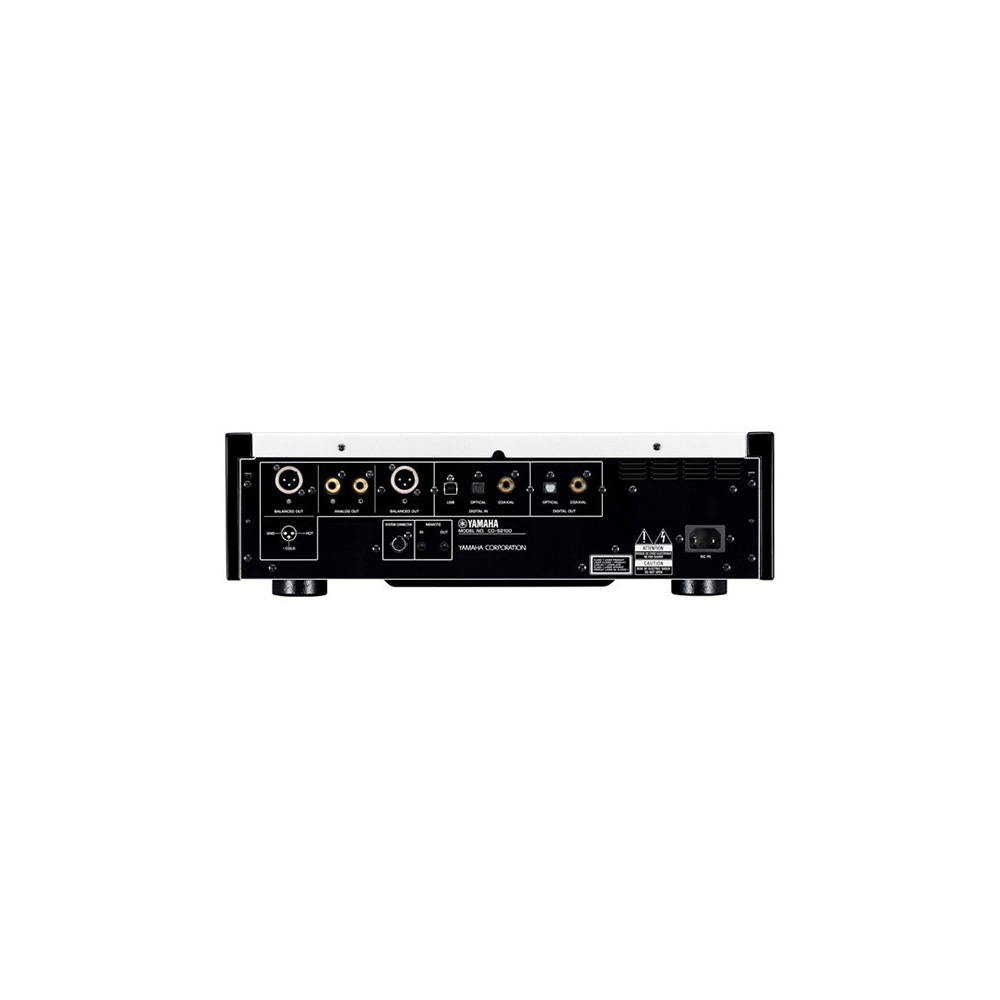

To thoroughly eliminate audio signal loss, the CD-S2100 adopts an innovative circuit configuration for the analogue circuit. The signal from the D/A converter is conventionally output as an analogue signal through an I/V conversion circuit configured in multiple stages. However, in the CD-S2100, the signal is output by a single-stage configuration based on a discrete design of the I/V conversion circuit. This single-stage configuration with high slew-rate sharply lowers audio signal loss compared to a multi-stage configuration circuit, and lowers NFB (Negative Feedback), eliminating any sonic suppression, resulting in a natural, spacious sound. The circuits beyond this D/A converter perform balanced transmission with a circuit configuration marked by symmetrical plus and minus sides. Using a balanced connection with the A-S2100 Floating and Balanced Power Amplifier lets you enjoy profoundly pure sound reproduction without any impact of transmission loss.



High precision CD drive for greater vibration resistance and high-precision signal reading

The CD-S2100 is equipped with the same drive mechanism as the Yamaha flagship model CD-S3000, in order to perform high-precision reading of the vast quantity of audio data recorded on a disk. And the loader mechanism is connected firmly to the chassis by installing heavy, specially specially bent 1.6mm (1/16”) thick iron reinforcing anchors in front of and behind the loader mechanism, eliminating the transmission of vibration caused by disk rotation to the circuit board. In the process of assembling the CD-S2100, after the drive mechanism has been attached to the chassis, horizontal fine adjustment of each anchor is performed carefully. While this is troublesome, it shows Yamaha’s commitment to providing the ultimate in precise signal reading. By eliminating even the slightest tilting of the mechanism, this achieves stabilised rotation and ultra-precise reading. Reducing the load of the servo that drives the pickup and lowering the impact of change of servo amperage on the signal, achieves clean signal read out with little impact of noise—drawing out every little nuance the artist has recorded.



Exceptionally high performance 32-bit D/A converter

The D/A converter for the CD-S2100 is the ES9016 from ESS Technology, Inc. We selected this after careful examination of all points—not only its high-precision processing of 32-bit audio, but also the ability to handle large amounts of audio data, strength in the low register, and high-quality definition in the high register. Since the built-in D/A converter generates its own master clock, an original Jitter Elimination function is also included, permitting D/A conversion with extremely low impact of clock jitter. Moreover, an 8-channel D/A converter is housed inside the chip, and applies double differential operation using 4-channel D/A converters on the right and left sides respectively. It delivers exceptional high performance and high-quality signal output with superior signal-to-noise ratio, since it employs an analogue signal processing circuit with balanced configuration.

Disc CompatibilitySA-CD, CD, CD-R/RW (MP3, WMA) and USB (Type B)
Output Level2 +/- 0.3 V (1 kHz, 0 dB)
Signal-to-Noise Ratio116 dB
Dynamic Range[CD] 100 dB, [Super Audio CD] 110 dB
Harmonic Distortion[CD] 0.002% (1 kHz), [Super Audio CD] 0.002% (1 kHz)
Frequency Response[CD] 2 Hz-20 kHz, [Super Audio CD] 2 Hz-50 kHz (-3 dB)
Dimensions (W x H x D)435 x 137 x 438 mm; 17-1/8” x 5-3/8” x 17-1/4”
Weight15.6 kg; 35.2 lbs.
