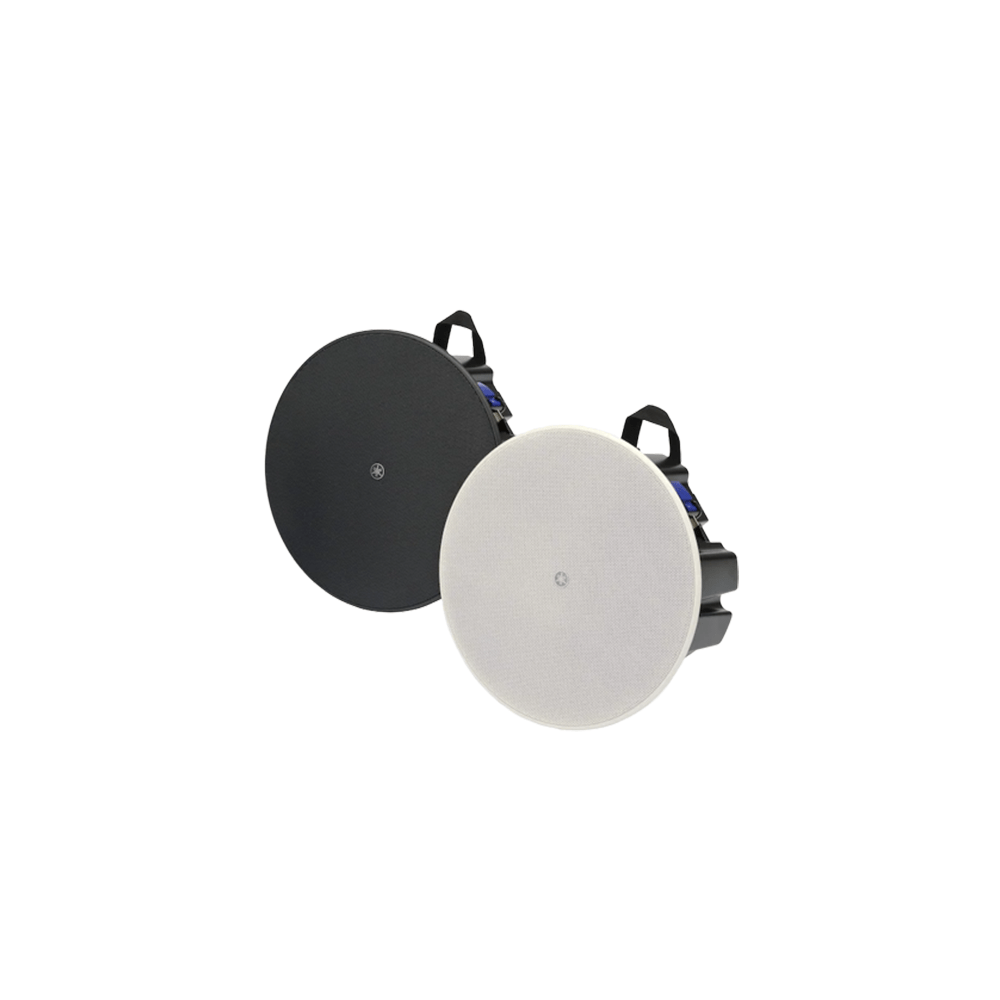

Yamaha Ceiling speaker VXC3F-VA / VXC3F-VAW

Yamaha Ceiling speaker VXC3F-VA / VXC3F-VAW

Low-profile ceiling speakers designed for superior music reproduction

Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele. By combining Yamaha’s unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F’s shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed.

Categories: ,

Description

EN54-24 certified version of VXC3F/VXC3FW speakers (3.5” full-range type) *Not available in some regions.
  • Certified to European EN54-24 voice alarm system requirements
  • 3.5” full-range speaker unit
  • Engineered for optimum BGM reproduction
  • Low-profile design facilitates installation in limited ceiling spaces
  • Direct support for low-impedance or high-impedance connections
  • Built-in carrying band increases safety during installation
  • Anti-drop tab mechanism provide secure temporary positioning during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 2.6 kg (5.7 lbs), Ø285 x D112 mm (Ø11-1/4″ x D4-7/16″)

Yamaha’s deep understanding of music comes together with cutting edge technology in newly designed speaker units and enclosures, resulting in refined, natural music reproduction at any volume level without the midrange distortion that often plagues speakers of this type. The VXC-F's speaker unit size and back box volume have also been painstakingly matched to achieve well-balanced reproduction from low to high frequencies even at low output levels.

Recommended Applications

Restarurant, cafe, bar, retail stores, spa, museum, hotel lobby, ball room, etc.

Yamaha


The VXC-F ceiling speakers feature low profile back boxes, reduced weight, and mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

Carrying Band

Anti-Drop Tab

Hi-Z or Lo-Z

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

Low Profile

Reduced physical depth allows installation in ceilings where space is limited.

Lightweight

Reduced weight increases installation flexibility while lessening the burden on installation personnel.

Portable

A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

Secure

An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.

* Not available with the VXC2F

Fast

Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.

Streamlined

The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.

Paintable

The supplied grilles can be painted any color to match interior decor.

EN54-24 Certified Versions with Uncompromised Performance

EN54-24 Certified Versions with Uncompromised Performance

VXC3F-VA / VXC3F-VAW
General specifications
Speaker typeSpeaker typeFull range, Bass reflex
Frequency range (-10dB)Frequency range (-10dB)71 Hz – 20 kHz (Half-space:2π)
Nominal coverageNominal coverage140° conical (Half-space :2π)
ComponentsLF-HF3.5” Full range unit
Power ratingNOISE20 W
Power ratingPGM40 W
Power ratingPEAK80 W
Nominal impedanceNominal impedance8 Ω
Transformer taps100V15W, 7.5 W, 3.8 W
Transformer taps70V15 W, 7.5 W, 3.8 W, 1.9 W
SPLSensitivity (1W; 1m on axis)86 dB SPL (Half-space:2π)
SPLPeak (Calculated)105 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
I/O connectorsI/O connectors1x Ceramic terminal block (3P) (input: +/-, Earth)
Protection circuitLoad protectionFull-range power limiting to protect network and transducers
FinishFinishVXC3F-VA: Black (approx. Munsell N3), VXC3F-VAW: White (approx. Munsell N9.3)
WaterproofWaterproofIP32
DimensionsDiameter285 (11-1/4")
DimensionsD112 mm (4-7/16")
Net weightNet weight2.6 kg (5.7 lbs)
Cutout sizeCutout sizeØ247 mm (Ø9-3/4")
Required ceiling board thicknessRequired ceiling board thickness5 mm – 37 mm
AccessoriesAccessoriesO-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
PackagingPackagingPackaged in pairs
CertificateCertificateEN54-24, CE, EAC
EN54-24 complianceEN54-24 complianceYes (DoP No. 0560-CPR-152190028)
OthersOthersConduit tube: Ø15.4 mm - Ø21.3 mm
General specificationsGeneral specificationsGeneral specifications
Speaker typeSpeaker typeFull range, Bass reflex
Frequency range (-10dB)Frequency range (-10dB)71 Hz – 20 kHz (Half-space:2π)
Nominal coverageNominal coverage140° conical (Half-space :2π)
ComponentsLF-HF3.5” Full range unit
Power ratingNOISE20 W
Power ratingPGM40 W
Power ratingPEAK80 W
Nominal impedanceNominal impedance8 Ω
Transformer taps100V15W, 7.5 W, 3.8 W
Transformer taps70V15 W, 7.5 W, 3.8 W, 1.9 W
SPLSensitivity (1W; 1m on axis)86 dB SPL (Half-space:2π)
SPLPeak (Calculated)105 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
I/O connectorsI/O connectors1x Ceramic terminal block (3P) (input: +/-, Earth)
Protection circuitLoad protectionFull-range power limiting to protect network and transducers
FinishFinishVXC3F-VA: Black (approx. Munsell N3), VXC3F-VAW: White (approx. Munsell N9.3)
WaterproofWaterproofIP32
DimensionsDiameter285 (11-1/4")
DimensionsD112 mm (4-7/16")
Net weightNet weight2.6 kg (5.7 lbs)
Cutout sizeCutout sizeØ247 mm (Ø9-3/4")
Required ceiling board thicknessRequired ceiling board thickness5 mm – 37 mm
AccessoriesAccessoriesO-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
PackagingPackagingPackaged in pairs
CertificateCertificateEN54-24, CE, EAC
EN54-24 complianceEN54-24 complianceYes (DoP No. 0560-CPR-152190028)
OthersOthersConduit tube: Ø15.4 mm - Ø21.3 mm
