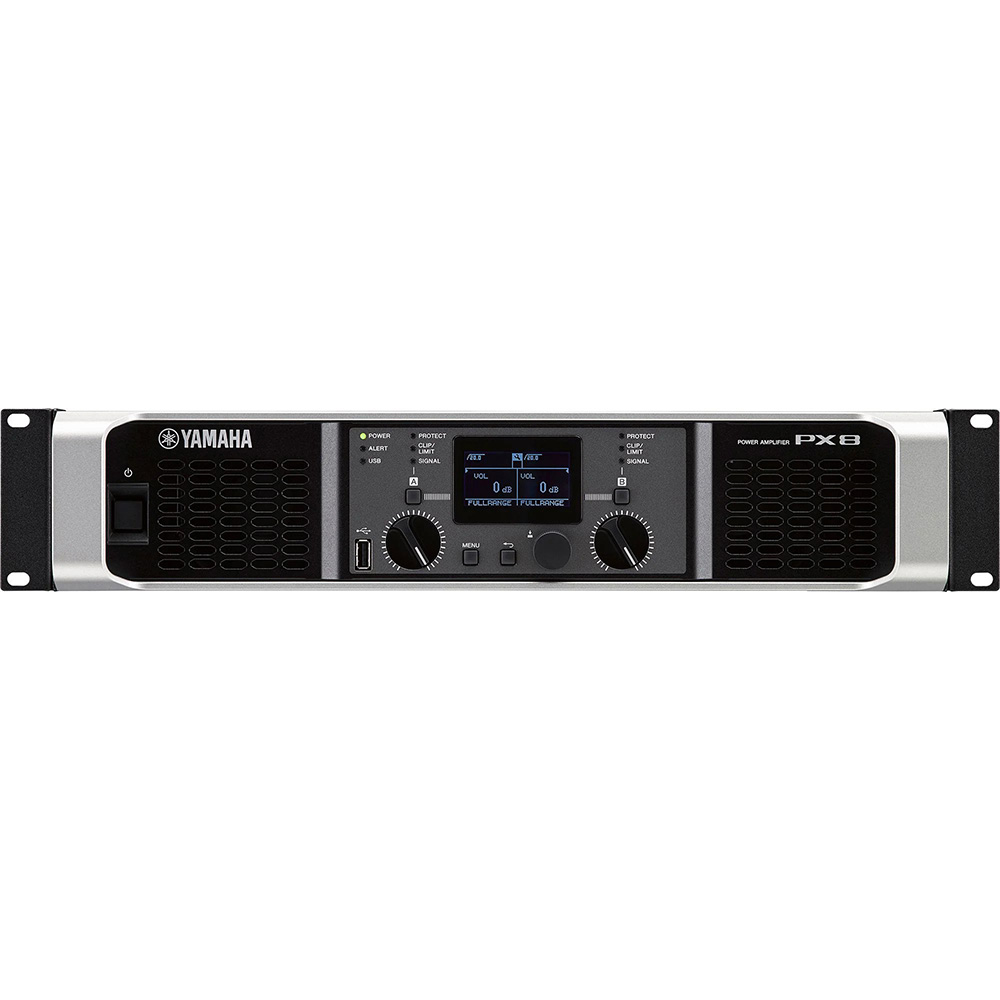

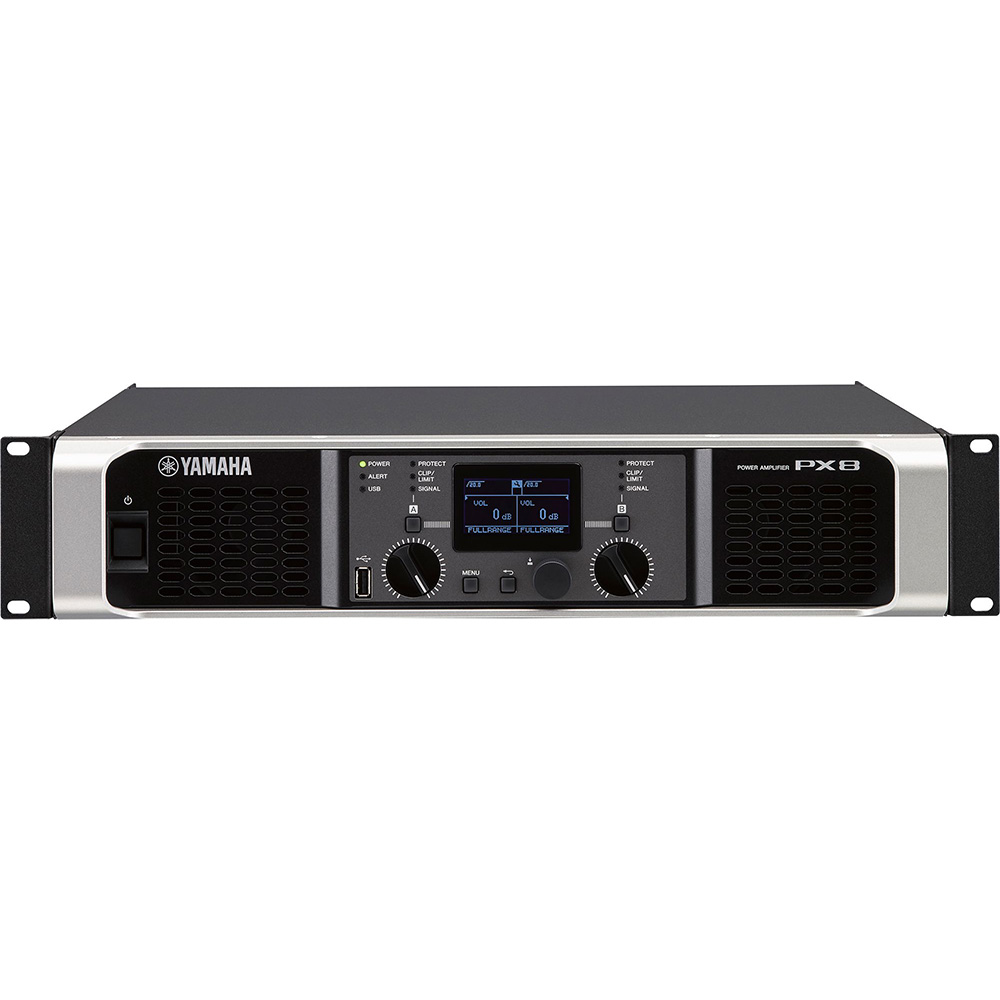

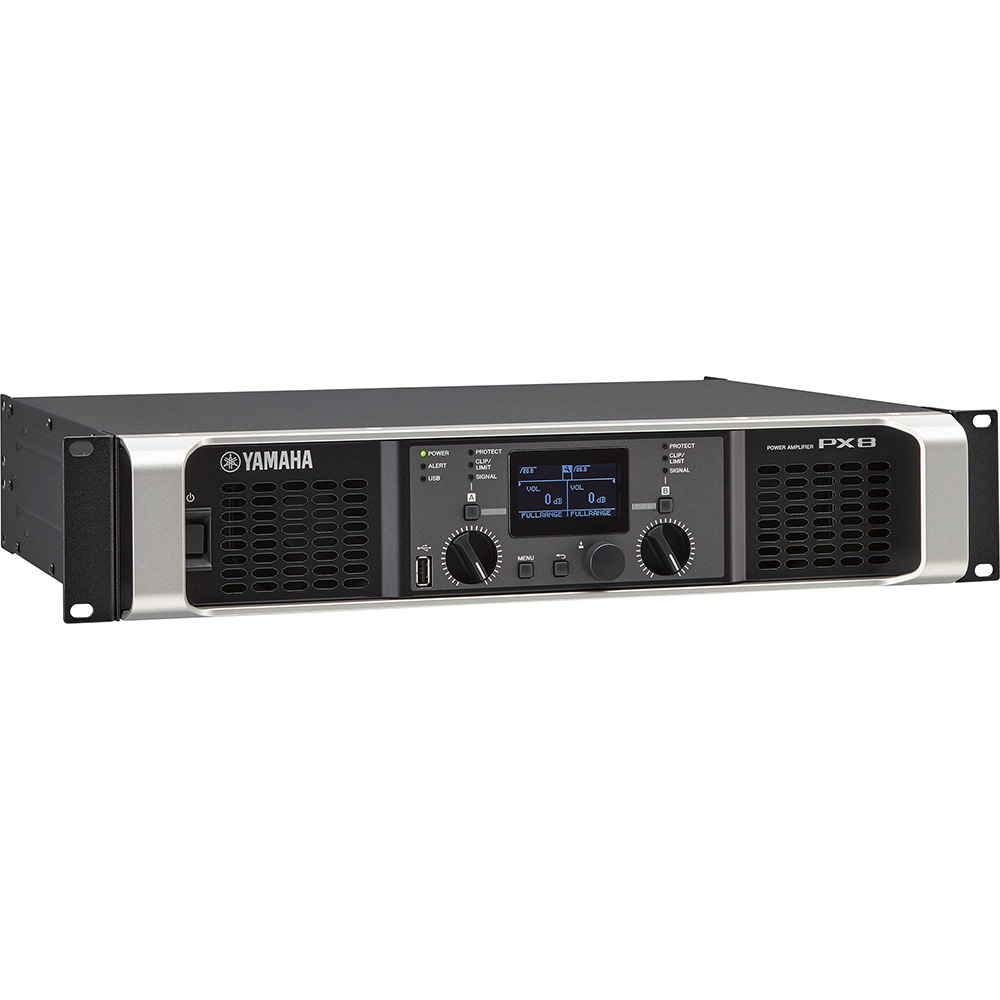

Yamaha PX Series PX8

The versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. 800W x 2 at 8Ω / 1050W x 2 at 4Ω.

  • 2x 800W at 8Ω
  • 2x 1050W at 4Ω
  • Flexible onboard PEQ, crossover, filters, delay, and limiter functions
  • Yamaha Speaker presets

Description

Powerful, Efficient Design

PX series models are driven by a newly developed Class-D amplifier engine that concentrates all the necessary functions into a single custom LSI chip, and uses PLL technology to control transfer characteristics in real time, achieving impressive sound quality and power. This new single-chip architecture offers higher output and improved performance in a more lightweight, yet reliable design. A combination of cutting-edge technology and an exhaustive component selection process make PX Series amplifiers supremely efficient amplifiers with low noise, reliable protection features, and above all, outstanding sound quality.

DSP for audio processing – Input Routing & Output Routing

Amp Mode allows the user to configure the system without difficulty by selecting the input routing and output routing. A total of 15 types of patterns can be selected.

Input routing (Dual/Parallel/Single/SUM)

Speaker System Structure

– FULL+FULL

– SUB+SUB

– FULL+SUB

– Bi-Amp

– Boost Full

– Boost Sub

Versatile Lineup

With a lineup comprising four new models – 1,200 W x2 PX10, 1050 W x2 PX8, 800 W x2 PX5, and 500 W x2 PX3* – the PX series offers a versatile range of different power output capabilities suitable for a wide variety of sound reinforcement applications. The PX3 and PX5 also come equipped with a Power Boost Mode that combines the power output from two channels into one, achieving significantly higher single-channel power levels to drive high power handling speakers when needed (note that the number of channels available is halved in this case). *Power output figures rated at 4 Ω

Sophisticated Signal Processing

PX series models come with flexible onboard crossover, filters, delay, limiter and PEQ (fixed preset) functions as standard, allowing quick and easy system setup via the LCD display, without the need for any additional outboard gear. All models also feature Yamaha’s intelligent D-CONTOUR multi-band dynamic processing, allowing users to achieve consistent clarity and high-quality sound for either front-of-house or monitor configurations.

Easy, Intuitive Setup

To accommodate users with varying levels of sound reinforcement experience, the PX series offers both Basic and Advanced setup modes. Basic mode allows even inexperienced users to easily configure a system that meets their needs, while Advanced mode offers experienced users more precise control over every aspect of their sound. All models feature eight programmable presets for instant recall and reduced setup time that can be saved to a USB thumb drive and shared with other PX amplifiers.

Smart Configuration Wizard

The Config Wizard allows users to save even more time during system setup by assigning optimized speaker settings that match your system configuration– simply select the appropriate filter and crossover for each speaker, and Config Wizard will do the rest. Config Wizard also features presets* specifically tuned for each model in Yamaha’s extensive lineup of passive speakers, including the popular CBR, Club, Installation, and VXS/VXC series, and an advanced mode that allows more detailed configuration of parameters such as input routing, input sensitivity, amp gain, and speaker impedance. *Presets may be added and updated in the future.

Flexible Connectivity, Durable Construction

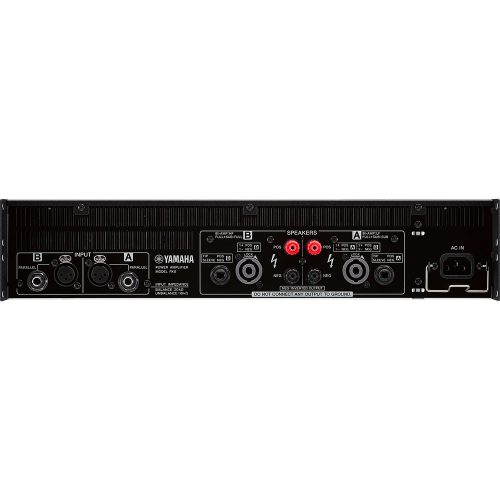

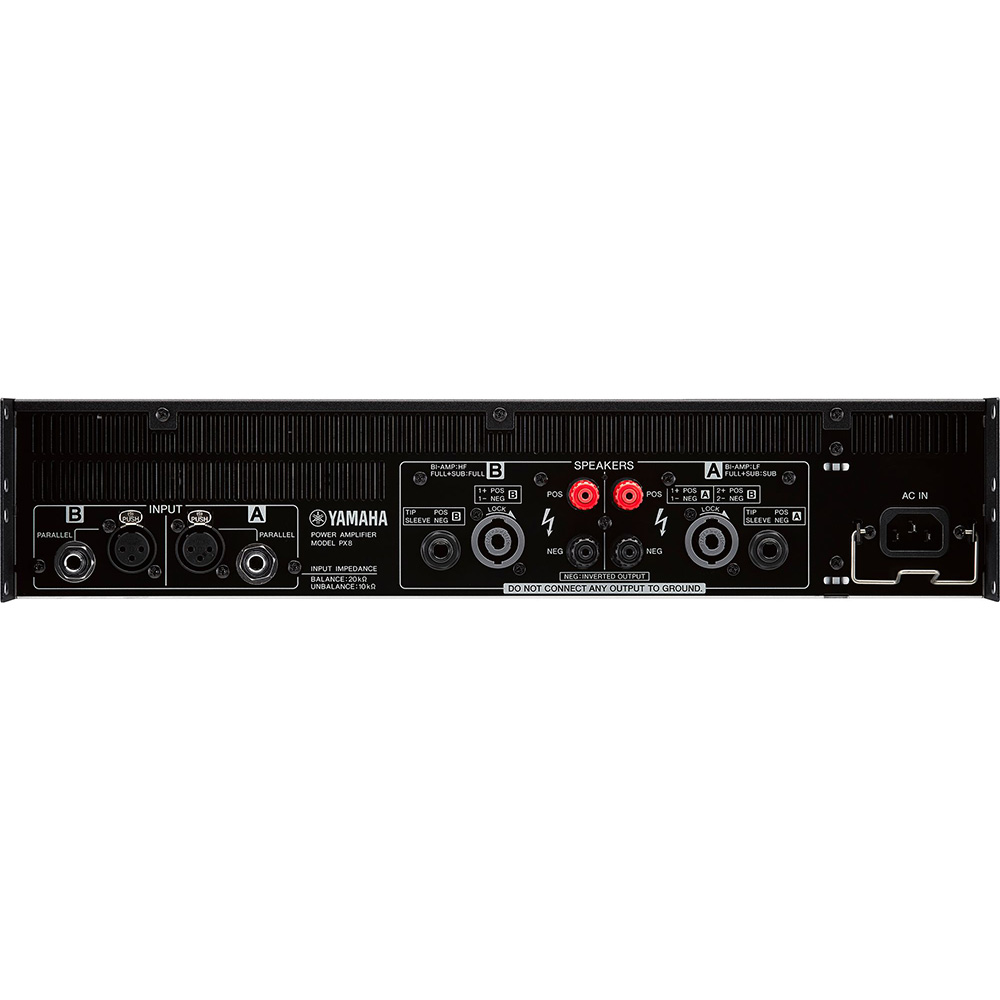

Equipped with both XLR and TRS inputs, and binding post, SpeakON and phone outputs, PX Series amplifiers offer the flexibility needed for a variety of setups and environments, and the durability to stand up to extended road-use thanks to the sturdy chassis and carrying handle design.

Utilities for Safe and Secure Operation

PX Series amplifiers make it fast and easy to configure panel settings, monitor amplifier status, and transfer data via USB, and also feature a panel locking function to keep your settings safe. Users can even export information such as internal device and log data to USB for rapid troubleshooting should difficulties arise.

100V models
Output power; 1kHz Non-clip 20msec Burst Both channels driven800W x 2
1050W x 2
600W x 2
8Ω/Power Boost Mode
4Ω/Power Boost Mode
120V models
Output power; 1kHz Non-clip 20msec Burst Both channels driven800W x 2
1050W x 2
600W x 2
8Ω/Power Boost Mode
4Ω/Power Boost Mode
220V-240V models
Output power; 1kHz Non-clip 20msec Burst Both channels driven800W x 2
1050W x 2
600W x 2
8Ω/Power Boost Mode
4Ω/Power Boost Mode
General specifications
Sampling frequency rateInternal48kHz
A/D D/A ConvertersAD/DA: 24-bit linear, 128 times over sampling
Total harmonic distortion0.1% (1kHz, 10W), 0.3% (1kHz, Half power)
Frequency response±1.0dB (1W, 8Ω, 20Hz to 20kHz)
S/N ratio101dB (A-weighted, 8Ω, Gain setting = +14dBu)
CrosstalkLess than -60dB (Half Power, 8Ω, 1kHz, Vol max input 150Ω shunt)
Voltage Gain/Sensitivity8Ω Volume max32.0dB/+8.3dBu (Gain setting: 32dB), 26.0dB/+14.3dBu (Gain setting: 26dB), 36.3dB/+4dBu (Gain setting: +4dBu), 26.3dB/+14dBu (Gain setting: +14dBu)
8Ω Volume max /Power Boost mode
Maximum input voltage+24dBu
Input impedance20kΩ (Balance), 10kΩ (Unbalance)
I/O ConnectorsSpeaker output portsNeutrik speakON NL4 x2, Binding post x2 pairs, 1/4″ PHONE(TS) x2
Line InputXLR-3-31 x2, 1/4 “PHONE(TRS) x2
OthersUSB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
IndicatorsPOWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature
ProcessorsInput summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 – 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ + Limiter + Delay)
Latency1.5 msec (Analog Input to Speakers)
Presets8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers)
Protection circuitLoad protectionPOWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically)
Amplifier protectionThermal: Output limiter (Restored automatically) → Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically)
Power supply protectionThermal: Output limiter (Restored automatically) → Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown
Amplifier classClass D, Balanced output circuit (BTL)
Cooling16 step variable speed fan x 2, front to rear airflow
Power requirementsDepending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage.
Power consumption280W (1/8 MAX power, 4Ω, Pink noise at all channels), 60W (4Ω, Idling)
DimensionsW480mm (18-7/8″)
H88mm (3-7/16″): 2U
D388mm (15-2/8″)
Net weight7.2 kg (15.87 lbs)
AccessoriesUSB cover, Owner’s Manual, Specification sheet, AC cable (2.0m) x 1
OthersOperating Temperature: 0°C to +40°C, Storage temperature: -20°C to +60°C
