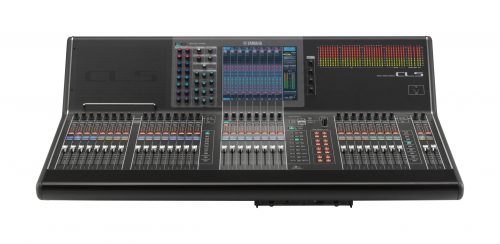

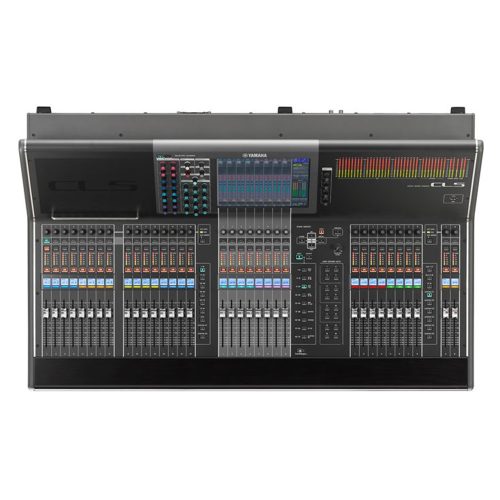

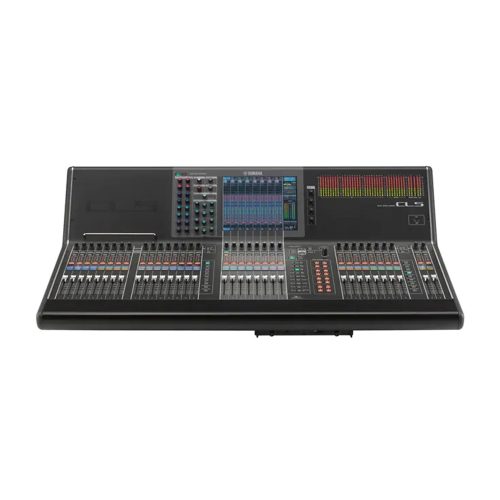

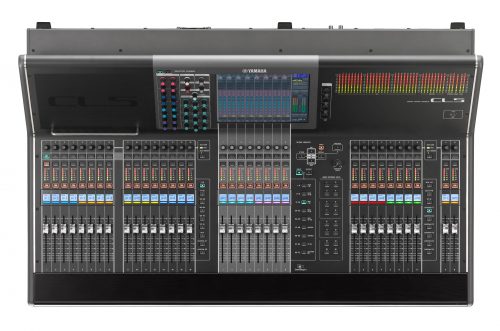

Yamaha CL Series CL5

Description

Features
Specifications

Sound Quality

Every engineer, artist, and audience agrees that sound quality is the bottom line. That’s a given. Through thorough analysis, review, and refinement of every detail of the circuitry and technology used, Yamaha CL series consoles deliver naturally superior sound plus a comprehensive range of “coloring” options that give the sonic craftsmen who will use them extraordinary creative freedom. The signal processors provided are plentiful and of the highest quality, including extraordinary Portico 5033/5043 EQ and compressor devices that bring Yamaha VCM technology together with the legendary talents of Rupert Neve. The platform is pure and natural, so the engineer can create and deliver the ideal sound.

Creating the Ideal Natural Sound Platform

The full impact of the most advanced digital audio technology available has been applied throughout the CL series to deliver natural sound that provides a perfect foundation for the artist’s and engineer’s imagination. This type of sonic quality cannot be realized through specifications alone. Repeated listening evaluations and refinements by some of the most reliable ears and respected minds in the business are an indispensable part of the process. The CL series digital mixing consoles are proof that the time and effort involved have been well spent.

The Sound Is In the Details

The challenge begins right from the console’s inputs. In order to achieve the required level of sound quality, individual components, power supply, grounding, circuit layout, mechanical construction, and countless other details of the initial input stages must be selected and designed with the utmost care. Listening evaluation becomes an important part of the development process right from this first stage as well. Changing even a single electronic component can alter the sound in unexpected ways, and the tiniest variations must be noted and evaluated as development proceeds. Extreme measures have been taken to maximize AD and DA conversion performance as well, right down to making detailed spectral analyses of the AD/DA master clock and adjusting the FPGA clock signal routing so that the most natural, musical sound is achieved. Another critical part of any audio system is the power supply. Of course the capacity of the supply is important, but so are the types of capacitors used, and the grounding must be engineered to ensure the lowest possible impedance. The resultant sound is an eminently natural representation of the input signal, providing an ideal foundation for processing and effects that will lead to the final, polished sound.

Prodigious Quality & Creative Potential

In creating the best possible sound for a profusion of venues and artist requirements, sound engineers draw on their experience and imagination to make a multitude of practical as well as creative decisions. The engineer’s primary hands-on tool, the mixing console, must be able to accommodate them all. Of course the bottom line is sound quality, and this is just one of the areas in which the CL series consoles excel. They also feature some of the most advanced analog circuitry modeling technology available to add unprecedented character and shape to the sound as needed, while maintaining the utmost sonic quality.

A Digital Approach to Acclaimed Analog Quality

Rupert Neve is a legend. His contributions to the fields of audio recording and production began at the dawn of the era and continue to this day in the form of microphone preamplifiers, equalizers, compressors, and mixing consoles that are the gold standards of professional audio.Clearly Mr. Neve is very serious about his sound, so it’s an honor that he and his company, Rupert Neve Designs, have officially recognized Yamaha’s original VCM (Virtual Circuitry Modeling) technology as being the first of its kind that is capable of accurately modeling the rich, expressive analog sound they have championed for so long. With VCM technology, digital audio is at last capable of matching analog designs for sonic quality.VCM, developed by Toshi Kunimoto (“Dr. K”) and his team at Yamaha’s innovative “K’s Lab” division, is a circuit modeling concept that effectively simulates the most detailed characteristics of individual circuit components, right down to capacitors and resistors, resulting in astonishingly realistic circuit simulations that easily outclass conventional digital simulations. But accuracy isn’t the only consideration, musicality is essential as well, and VCM modeling delivers both.The CL series consoles come equipped with VCM models of the renowned Neve Portico 5033 equalizer and Portico 5043 compressor/limiter, both developed through close cooperation with Rupert Neve Designs. A valuable range of other VCM equalizers, compressors, and studio-quality effects is also included. You will hear the difference.

Revolutionary Dan Dugan Automatic Mixer Built In

Thanks to in-depth collaboration with Dan Dugan Sound Design, renowned Dan Dugan automatic microphone mixing with its advanced algorithms is built into the CL series consoles. Setup is easy: just insert the processor into up to 16 channels for automatically optimized microphone gain distribution. Gain control is smooth and natural, as though experienced human operators were doing the mix. The system also effectively reduces feedback and comb filter issues. For speech applications, especially non-scripted situations, this allows the operator to concentrate on details other than fader operation for consistently high-quality mixes.

Operability

A truly useful sound reinforcement console is one that can keep pace with the rapidly and dramatically changing demands of live sound applications. Efficient, intuitive operation is essential. Yamaha’s acclaimed Centralogic concept is the core of a refined user interface that offers a new, unprecedented level of operating efficiency in the CL series, from visual feedback right down to the form and feel of the faders and controls. The CL consoles are also ready for seamlessly integrated remote control and offline editing via an Apple iPad® or other computer. Control is familiar and intuitive, while at the same time offering extensive freedom.

Centralogic at the Heart of an Evolved Interface

Yamaha’s Centralogic user interface has already proven its value as the most user-friendly digital operating environment available, even for engineers who were previously only comfortable with analog consoles. Founded solidly on Centralogic roots, the CL series takes intuitive, efficient operation to an even higher level, offering an operating experience that engineers will not only feel immediately familiar with, but will be able to grow with into the future.

Overview – Analog Style Intimacy

Clear visual continuity from the Centralogic section’s physical faders to virtual on-screen controls via the console’s elegantly curved panel matches the unambiguous directness of analog console channel modules. Any of the console’s input and output channels can be instantly assigned to the Centralogic section in 8-channel groups.

Selected Channel – Another Industry Standard from Yamaha

The Selected Channel display provides a comprehensive view of the many controls and functions available for the currently selected channel. The corresponding physical controllers to the left of the display are labeled and laid out in the same way as the on-screen controls, for confident access and operation. The CL series includes a number of refinements to this now-standard interface for unprecedented operating ease.

Every Detail Designed for Optimum Operating Feel

The way CL series functions and controls work together is a perfect example of how a whole can be greater than the sum of its parts. Within the larger framework of the user interface, the visibility, feel, and precision of individual faders, knobs, and switches are an essential part of the overall operating experience. The visual flow of the control layout across the consoles’ sweeping curves makes a significant contribution to smooth operation as well. The outstanding balance of the entire system, plus refinements such as programmable channel names/colors and user defined knobs, add up to operation that is, in a word, sublime.

Newly Designed Faders

No detail of form or function has been overlooked, right down to how the curvature of the elegant fader knobs comfortably fit the fingers at any angle. The fader knobs even have non-slip inserts that provide ideal friction for smooth, slip-free fades. Visibility is important too, so the knob edges are sculpted to provide a clear view of the fader scale from just about any angle.

Editable Channel Names and Colors

Editable channel name displays above each fader automatically switch to a larger character size for short names, and show pan and fader values as well. Below each channel name display is a color bar that illuminates in any of eight selectable colors, the same as those used in the central touch screen, for at-a-glance channel and group identification. Brightness can be adjusted for optimum visibility under any ambient lighting conditions.

Direct Access to the Parameters You Need

The User Defined Keys provided on Yamaha digital consoles are already a standard. The User Defined Knobs provided on the CL series consoles will quickly achieve the same status. Just about any of the console’s variable parameters can be assigned to the four User Defined Knobs for direct, instant access. Another advanced control feature is Custom Fader Bank selection, allowing the faders in each section to be instantly reordered as required.

Harmony in Form and Function

The sweeping form of the CL consoles is not only elegant, but it provides the best possible view of all controls and displays from the operator's position. The visual continuity from the Centralogic faders to the display is seamless. The hand rest is genuine oak with a gorgeous finish that matches the visual and tactile sophistication of the overall design.

Functionality

Network capabilities are rapidly becoming fundamental and indispensable in today’s fast-paced world of digital live sound. CL series consoles feature separate console and I/O rack components that communicate via the Dante™ network audio protocol, allowing fast, efficient design and deployment of capable systems from the most basic to the dazzlingly complex. The ability to add Lake® processing via expansion slots also adds to the system’s versatility and adaptability to the widest range of mixing needs.

Dante for Fast, Flexible Networking

The complexity and variety of today’s live sound systems makes fast, adaptable configuration and setup capability vital. Of course the highest level of sonic performance must be maintained at the same time. CL series consoles use the Dante network protocol developed by Audinate to allow flexible connection to multiple I/O rack units configured and located according to the needs of the application, while at the same time providing redundancy for superior reliability.

Up to Eight I/O Rack Units

Dante directly supports star network configurations, so up to eight I/O rack units can be connected to any single CL series console and conveniently located wherever they are needed most. A few simple DIP switch settings are all that is required to change to daisy-chain networking as required.

Simple Setup

The ability to set up even complex systems quickly and easily is another benefit of Dante networking. In most cases devices on the network are recognized and set up automatically. And since patching operations that usually require a separate computer can be carried out directly from the CL console, changes to the initial setup are painless as well.

Redundancy for Reliability

Dante also makes it easy to maximize system reliability. Star networks allow the use of redundant primary and secondary lines for each device, for the utmost reliability in critical applications. With this type of setup a malfunction in a cable or other network component won’t bring the whole system down. The show will go on.

NXAMP Discovery and Patching

Here's a case where Dante offers not only extended system flexibility, but enhanced operability as well. NEXO NXAMP discovery and patching operations that normally require a computer running the Dante Controller software application can now be carried out directly from the CL console touch screen display when the NXDT104 Dante network card is installed.

* CL firmware version 1.5 or higher required.

Full Integration of FOH and Monitor Control

Multiple CL series consoles can share control of the same I/O rack unit, allowing unprecedented system flexibility and efficient use of system resources. A new Gain Compensation function adds the ability to combine FOH and monitor control via a single network, for comprehensive digital live sound integration.

I/O Rack Unit Sharing with Gain Compensation

One obvious drawback of connecting multiple consoles to a single I/O rack unit is that gain adjustments made from one console can cause unexpected gain changes at the other consoles. The Gain Compensation function implemented in the CL consoles ensures that when the analog gain stage is adjusted from one of the consoles, corresponding compensation is automatically applied at the digital stage so that the level sent from the I/O rack unit to the connected CL consoles remains constant.

Digital Gain Control

Gain compensation applied after any initial analog gain levels are set is carried out entirely in the digital domain. Digital gain control is another original CL series feature that contributes to extraordinarily smooth, efficient operation and integration of the entire system.

A Complete Live Sound Toolkit

The quality and variety of internal effects have become major factors in choosing a digital live sound console. Studio quality sound is a must, but so is having the right processors for the job at hand. CL series consoles feature virtual effect racks that are packed with a selection of effects that have been chosen and developed to meet the real-world needs of live sound professionals. Everything you need to create perfectly polished sound for your application is right here.

Premium Rack Brings Studio Standards to the Live Stage

As the name implies, “virtual racks” provided in the CL series consoles let you combine signal processors you need for your application in one easily accessible location, much like traditional analog outboard racks. The new CL series Premium Rack can accommodate up to eight instances of the six expressive EQ and dynamics effects provided, including the Rupert Neve Designs Portico 5033 equalizer and Portico 5043 compressor/limiter. The ability to use some of the most highly regarded studio effects in live mixes can help you deliver unprecedented sonic quality in any venue.

Effect Rack With More Than 50 Effects

In addition to the Premium Rack described above, the CL consoles feature an Effect Rack that allows simultaneous use of up to 8 effects from a selection of 46 ambience effects and 8 insertion effects, all of outstanding quality. Although a separate EQ rack is provided for the output buses, any of the 8 effects in the Effect Rack can be replaced by graphic EQ units as needed.

32-channel Graphic Equalizer Rack

The CL consoles also feature a GEQ rack that allows graphic EQ to be inserted into the output buses as required for room equalization and other functions. Up to 16 31-band GEQ units can be mounted in the rack for simultaneous use, and those GEQ units can be individually switched to Flex15GEQ mode, effectively providing two EQ channels that allow up to 15 bands to be used at a time. With a full rack of GEQ units all functioning in Flex15GEQ mode, you have a total of 32 GEQ channels for extensive equalization capacity.

A Comprehensive Range of Valued Devices

VCM technology delivers refined, musical tonality in the outstanding lineup of devices provided in the CL series Premium Rack and Effect Rack.

Premium Rack

Portico 5033/5043: These devices immaculately model the full sonic depth and breadth of the original analog equalizer and compressor/limiter modules by Rupert Neve. They are not only ideal for adding first-class studio-quality processor sound to your mix, but are also remarkably easy to set up for optimum effect. Merely inserting these outstanding models in the signal path can enhance the sound.

U76: A studio standard that is ideal for a wide range of applications. It even features a RATIO “ALL” button that simulates the effect of engaging all of the ratio buttons on the original.

Opt-2A: This is a model of one of the most widely used optical studio compressors from the 1960’s. The distinctive and highly regarded compression and release characteristics of the original are recreated with remarkable precision.

EQ-1A: The classic studio equalizer that is the basis for this model is still in demand today, highly prized for the musical response of its vacuum tube and transformer EQ circuitry, as well as its distinctive boost/cut characteristics.

Dynamic EQ: This original EQ module detects level variations in specified frequency bands in real time, dynamically adjusting EQ gain to provide pinpoint compression, limiting, and de-essing. A refined interface contributes to fast, easy operation.

Buss Comp 369: The K's Lab team has created an accurate VCM (Virtual Circuitry Modeling) model of an acclaimed buss compressor that is relied on in broadcast and recording studios around the world. As the name implies, Buss Comp 369 is ideal for inserting on the stereo mix buss for increased loudness, more uniform levels, and warm overall sound. It is an excellent choice for live sound as well as broadcast applications.

MBC4 Multiband Compressor: The MBC4 is a four-band multiband compressor for the console's Premium Rack, combining a refined GUI with advanced VCM modeling for high overall operability and sonic performance. The musical response of highly regarded analog compressors was studied in depth and recreated in detail in the MBC4, providing flexible dynamics processing while retaining the integrity and musicality of the source.

Effect Rack

Comp 276: This model is a composite of several analog compressors that were popular in recording studios in the 70’s. Anyone who is familiar with the originals will recognize the characteristic punch and fatness this device delivers.

Open Deck: Here’s a unique effect that models both the analog circuitry of well-known professional tape decks plus the characteristics of the tape used with them. You can simply choose a deck that offers the sound you need, or combine different recording and playback decks for a range of useful variations.

Comp 260: The compressor/limiter modeled in this device was all the rage in the late 70’s, featuring solid-state RMS level detection circuitry and VCAs for level control. The sonic signature of this model is unmistakable.

EQ 601: For a sweet analog EQ sound, this model recreates a popular circuit topology from the 70’s.

Two Ways to Record Live

CL series consoles offer two live recording solutions: convenient 2-track recording direct to USB memory, and high-performance multitrack recording to a digital audio workstation via Dante. Whether it’s for a simple web upload, a commercial release, or just material to be used for a virtual sound check the next day, you have all the recording capability you need.

Seamless Integration with Nuendo Live for Serious Multitrack Recording

The Nuendo Live DAW application has been specifically designed for live multitrack recording, providing comprehensive control and overview for smooth operation under the most demanding live situations. An extension plug-in provides seamless integration with CL console features, such as channel names, markers, transport control, and more

Dante Virtual Soundcard : Dante Virtual SoundcardDante Virtual Soundcard software, included with CL consoles and Rio3224-D/Rio1608-D I/O racks, enables direct multitrack recording to a Windows or Mac based DAW without the need for an audio interface between the console and computer. A high-performance DAW application such as Steinberg Nuendo Live can be used to record up to 64 tracks with studio quality and editing capabilities.

Virtual Sound Check : DAW playback can be instantly patched to the CL console’s input channels so that multitrack recordings can be used for “virtual” sound checks when the performers aren’t available. Recordings of the previous day’s performance can be used for sound check on the following day!

Convenient 2-track Recording to USB Memory

2-track recording in mp3 format couldn’t be easier. Simply plug a USB memory into the USB connector on the front panel of the console and start recording. No other equipment is required. Of course playback from the USB memory is possible as well, making it a convenient source for BGM or sound effects.

Expandable and Adaptable

Three Mini-YGDAI card slots on the CL consoles provide easy I/O expansion as well as extra processing capabilities. New additions to the expansion card lineup include an MY8-LAKE card that integrates Lake Processing, a staple in today’s live sound field, into the console, and a Dugan-MY16 card that adds the most advanced automated microphone cueing and gain control available.

New Remote Control Freedom

With the CL StageMix application, an iPad becomes a wireless remote controller that can be used to set up and operate CL consoles from anywhere on stage or in the audience seating area. There’s even a built-in iPad stay on the CL5 and CL3 panels, providing a convenient mount for an iPad to be used for additional control functionality. There’s also the CL Editor application for computers running Windows or Mac operating systems, for both extended online operation and offline setup and editing. In addition to full Selected Channel and Overview display operation, the CL Editor facilitates scene data management, patch list editing, channel name editing, and much more. It’s even possible to use the CL StageMix and CL Editor applications at the same time.

Smart Looks and Flexible Design for Custom Control Panels

No specialized programming skills are required. An intuitive interface makes it easy to create faders for volume control and switches for channel on/off, for example, and position photographs or other graphic elements on the tablet screen as required to create original control panels that are ideally suited to individual applications and users. In addition, ProVisionaire Touch and ProVisionaire Control can control CL/QL/TF series digital mixers, MTX and MRX series processors, XMV series and PC-D/PC-DI series power amplifiers, R series (ADDA) and Tio1608-D I/O rack, DZR-D series powered loudspeakers and DXS XLF-D powered subwoofers and Nexo NXAMPmk2 powered TD controller. It is easy to combine those parameters onto the one screen.

Increased Power with Lake Speaker Processing Power

Lake processing has become a standard for loudspeaker processing in live sound applications. An alliance between Yamaha and Lab.gruppen brings Lake Processing right into the CL series mixing consoles, via the MY8-LAKE expansion card. The MY8-LAKE card provides 8-in/8-out in Mesa (system EQ), 4-in/12-out Contour (crossover), and 4-in/4-out and 2-in/6-out Mesa & Contour (combination) modes.Although primarily intended for speaker processing, the asymmetrical Mesa EQ can also be very useful on input sources. The Lake Controller application running on a compatible computer allows management of multiple Lake devices in the system, while close compatibility with Smaart® contributes to smooth, efficient speaker system tuning.

Automatic Gain Control for Up To 16 Microphone Inputs

The Dugan-MY16 automatic mixer card, developed in cooperation with Dan Dugan Sound Design, provides smoothly automated microphone cueing and gain control for up to 16 input channels. Rather than using gates to open and close channels, the Dugan system uses gain sharing and fades for smooth, natural level changes.

Cascade Link

For applications that require a large number of input channels, CL consoles can be cascade-connected via I/O cards such as the MY16-AE installed in their Mini-YGDAI expansion card slots.

Today's Data for Tomorrow's Show

The Yamaha Console File Converter is an application that allows data to be shared between a number of Yamaha digital mixing consoles, and the CL series consoles are included in the latest version. You can share data between CL series, PM5D, M7CL, and LS9 consoles, so data from one show doesn't have to be completely reprogrammed from scratch for the next, even if different consoles are used.

Features Optimized for Live Sound

Although there are as many ways to use a mixing console as there are sound engineers, extensive feedback from professionals in every possible sector of the business has made it possible to provide a feature set that is ideally suited to the real-world needs of demanding live sound applications.

300 Scene Memories

Up to 300 complete console setups can be stored as “scenes” and instantly recalled whenever needed. Recall Safe, Focus, and Preview functions are also provided.

Versatile Input and Output Delays

Up to 1000 ms delay on input channels facilitates precise microphone phase compensation, while up to 1000 ms delay on the output ports is useful for speaker distance compensation and room tuning.

Ample EQ and Dynamics Processing

All channels feature 4-band parametric EQ and two dynamics processors (one dynamic processor on outputs). The processors include an HPF for every input, and one also functions as a highly effective de-esser with advanced processing algorithms that also offers a bandpass mode.

16 DCA Groups

16 DCA groups allow flexible grouping of multiple input channels for simultaneous control.

8 Mute Groups

Multiple channels can be assigned to any of 8 mute groups for instant muting or un-muting, with a new Dimmer Level function.

16 User Defined Keys

A large number of console functions including Sends on Fader, Tap Tempo, and Set by Sel can be assigned to 16 User Defined Keys for instant hands-on access.

Multiple User Key Sets

Limited access to CL console functions can be provided for less experienced operators and accident prevention via multiple User Key sets that can be stored in the console itself as well as on USB memory.

5-in/5-out GPI Interface

A 5-input/5-output GPI interface allows the CL consoles to respond to input from external switches, as well as to transmit on/off status to external devices.

Help File

Simply tap the on-screen “Help” button to access the onboard operation manual. Once loaded all essential information is available directly via the console’s display, so you won’t need to keep the printed manual with you.

Technical Specification

Mixing Capacity	Input Mixing Channels	72 mono + 8 stereo
	Mix Buses	24
	Matrices	8 (Input to Matrix supported)
	Stereo Bus	1
	Mono	1
	Cue	1 (Second Cue Bus supported in CL V4.0 or later)

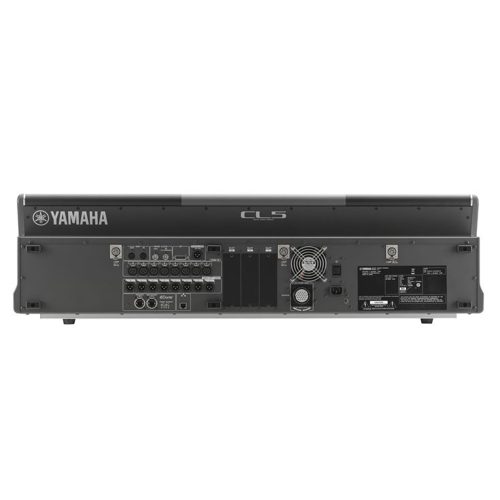

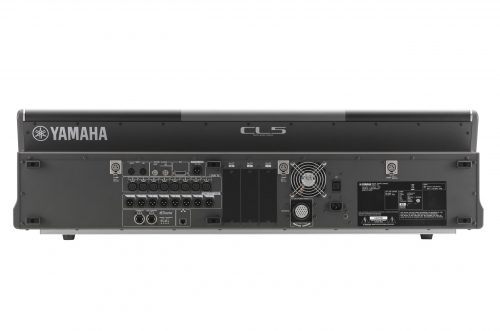

Local Connectors	Analog Inputs	8
	Analog Outputs	8
	MY Slots	3
	Dante I/O	Primary / Secondary
	Digital Out	1 (AES/EBU)
	GPI	5 in / 5 out (CL V1.11 or later)
	Word Clock I/O	Yes
	MIDI I/O	In / Out
	External Redundant PSU	Optional PW800W
	Meter Bridge	Output meter built-in
	Ethernet	Yes
	AC Inlet	V-Lock Type
Scene Memory	Number of Scenes	300
	Recall Safe	Yes
	Focus Recall	Yes
	Fade Time	Yes (0s ~ 60s)
	Preview	Yes (CL V1.51 or later)
	Selective Load / Save	Yes (CL V1.7 or later)
	Tactile Control Keys	Yes
Input Channel Functions	Gain Compensation	Yes
	Digital Gain	Yes (-96dB ~ +24dB)
	ATT	-96dB ~ 0dB
	HPF	20Hz ~ 600Hz, -6 or -12dB/oct Selectable (CL V1.51 or later)
	PEQ	4 Band Full PEQ_x000D_ (RTA overlay support in CL V3.0 or later, New EQ Algorithms support in CL V4.0 or later)
	Dynamics 1	Gate / Ducking / Compressor / Expander (Key-in Filter on the Compressor and Expander in CL V4.0 or later)
	Dynamics 2	Compressor / Compander-H / Compander-S / De-esser
	Input Delay	Yes (0ms ~ 1000ms, frame delay support in CL V3.0 or later)
	Pan	CENTER NOMINAL or LR NOMINAL for monaural input channels in CL V3.1 or later_x000D_ L-MONO, R-MONO or LR-MONO for stereo input channels in CL V3.1 or later
	DCA Group	16 (Output DCA and DCA Roll-Out support in CL V2.0 or later, Scrollable DCA Roll-Out support in CL V4.0 or later)
	MUTE Group	8
	Number of Inserts	2 (CL V2.0 or later)
	Direct Out	Yes
Output Channel Functions	PEQ	4 Band Full PEQ_x000D_ (RTA overlay support in CL V3.0 or later, New EQ Algorithms support in CL V4.0 or later)
	Dynamics 1	Compressor / Expander / Compander-H / Compander-S
	MUTE Group	8
	Number of Inserts	2 (CL V2.0 or later)
Premium Rack	Number of Premium Racks	8
Premium Rack	Mountable Device	RND Portico5033 / RND Portico5043 / U76 / Opt-2A / EQ-1A / Dynamic EQ / Buss Comp 369 (CL V3.0 or later) / MBC4 (CL V4.0 or later)
Effect Rack	Number of Effect Racks	8
	Number of Effect Programs	54
	Mountable Device	Effect / 31BandGEQ / Flex15GEQ / 8Band PEQ (CL V3.0 or later)
GEQ Rack	Number of GEQ Racks	16
GEQ Rack	Mountable Device	31BandGEQ / Flex15GEQ / Dugan Automixer (CL V3.0 or later) / 8Band PEQ (CL V3.0 or later)_x000D_ (RTA overlay support in CL V3.0 or later, GEQ gain control from the TOUCH AND TURN knob in CL V4.0 or later)
Dante	Number of I/O Channels	64 in / 64 out
	Number of I/O devices that can be discovered from the console *1	63
	Number of I/O devices that can be mounted	24
	Number of I/O devices with HA remote control *2	8
	Dante Patch from Console	Yes
Recording	USB Memory Recording	Yes
Recording	DVS Recording	Yes (DVS and Nuendo Live bundled)
Broadcast Functions	5.1 Surround Panning	Yes (CL V3.0 or later)
	Surround Monitor	Yes (CL V3.0 or later)
	Mix Minus	Yes (CL V2.0 or later)
	L-Mono / R-Mono / LR-Mono	Yes (CL V3.0 or later)
Monitor	Solo Mode	Yes (CL V4.0 or later)
	Second Cue Bus_x000D_ (allows the MATRIX 7/8 to be used as a CUE B bus)	Yes (CL V4.0 or later)
	Oscillator	Sine Wave 1ch / Sine Wave 2ch (CL V3.0 or later) / Pink Noise / Burst Noise
Other Functions	Port to Port	No
	RTA	Yes (CL V3.0 or later)
	Output Port Delay	Yes (0ms ~ 1000ms, frame delay support in CL V3.0)
	Cascade	Yes (via MY slots)
	User Level	Yes
	Help File	Yes (CL V1.51 or later)
	Channel Link	Yes (Output Channel Link support in CL V3.0 or later)
	Channel Copy/Move	Yes
	Control & Monitoring for Digital Wireless Receivers	Shure ULXD4D/ULXD4Q (CL V4.0 or later)
User Interface	Display	10 inch Touch Panel
	Centralogic Section	Yes
	Faders	16 + 8 + 8 + 2
	Selected Channel Encoders	Gain, HPF, PEQ (controls for 4 bands), Dynamics 1/2(Threshold only), Pan, Mix/Matrix Sends
	Channel Encoder	Yes (for Gain, Send Level, or an assigned parameter)
	Channel Name / Color Display	Yes
	Custom Fader Banks	Yes (customized for each fader section)
	User Defined Keys	16 (x 4 banks in CL V3.0 or later)
	User Defined Knobs	4
	Touch and Turn Knob	Yes (using a User Defined Knob)
	Monitor Level Knob	Yes
	Wooden Arm Rest	Yes
	iPad Stay	Yes
	Rack-mounting	No
Software	Editor	CL Editor (Win/Mac, CSV files import/export in CL Editor V4.0.0 or later)
	StageMix	CL StageMix (iPad app)
	MonitorMix	Yes (CL V4.00 or later)
	Console File Converter	Yes (Win/Mac)

General Specification

Sampling frequency rate	Internal	44.1kHz / 48kHz
	External	44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
Signal delay		Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz
Total harmonic distortion		Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min.
Frequency response		+0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT
Dynamic range		112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min.
Hum & noise level	Equivalent input noise	-128dBu typ., Equivalent Input Noise, Input Gain=Max.
	Residual output noise	-88dBu, Residual output noise, ST master off
Crosstalk		-100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min.
Power requirements		US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
Power consumption		170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W
Dimensions	W	1053mm (41 1/2in)
	H	299mm (11 3/4in)
	D	667mm (26 1/4in)
Net weight		36kg (79.4lb)
Others		Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
