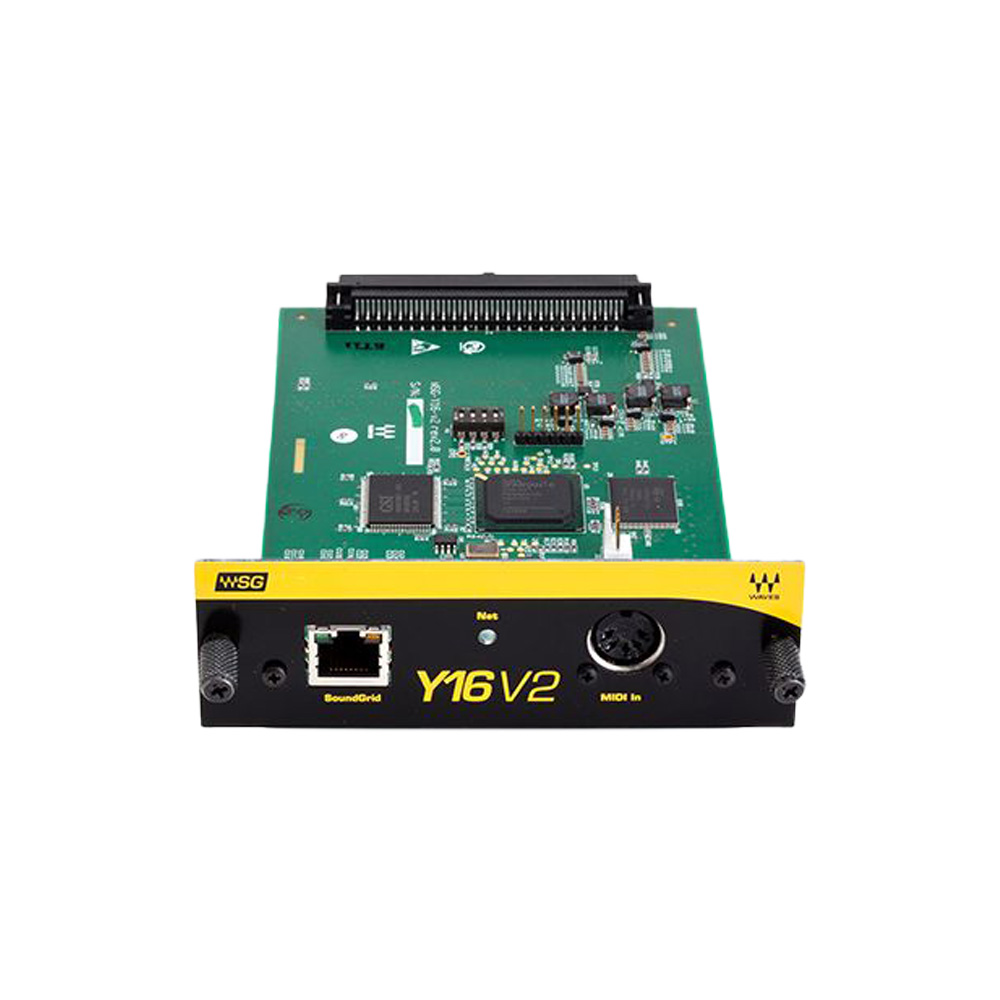

Yamaha Waves SoundGrid WSG-Y16 V2


Waves SoundGrid Interface Card

  • 24-bit sample resolution
  • Supports both native/generic and emulation modes of the YGDAI interface
  • Record to two computers simultaneously
  • Extremely low-latency networking platform for processing, playback and recording
  • Connects to SoundGrid systems and SoundGrid-compatible devices
  • Supports 44.1, 48, 88.2 & 96 kHz sample rates
  • 16 I/O channels of audio at 44.1/48 kHz; 8 I/O channels of audio at 88.2/96 kHz
  • Clock Sync over Ethernet (SoE) for digital splits and audio networking
  • Works with all consoles installed with WSG-Y16 V1 card
  • Redundancy and recovery options
  • Compatible with standard computers and switches
  • Comes with the SoundGrid Studio Application for ASIO/Core Audio recording and playback
  • MIDI control from consoles
  • Add up to four cards for 64/32-channel processing and recording
General Specifications
Channel Count16IN / 16OUT
Sampling frequency44.1kHz, 48kHz, 88.2kHz, 96kHz
Resolution24 bit
Connector1 x RJ-45_x000D_
1 x MIDI
