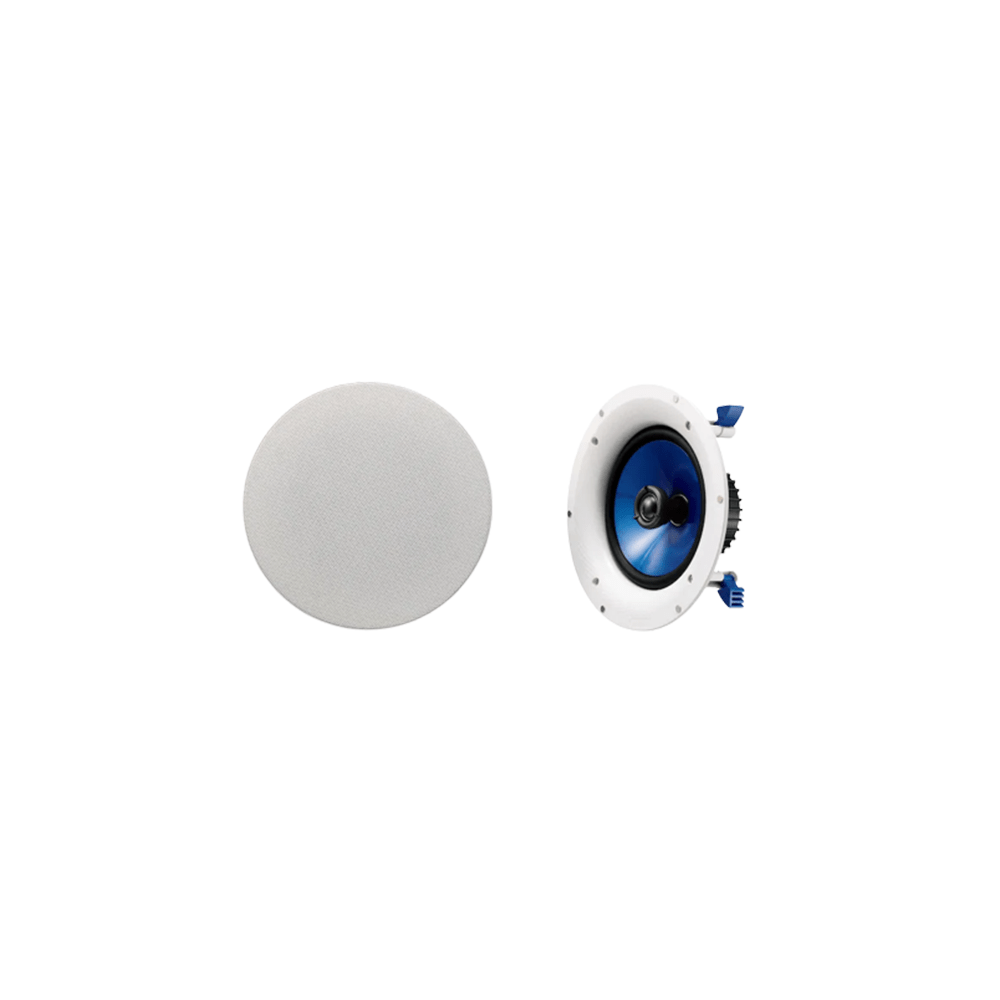

Yamaha Coaxial Ceiling Speaker NS-IC800

An 8″ coaxial ceiling speaker with cone woofer, fluid-cooled soft-dome swivel tweeter, 140W power handling, horn-shaped acoustic baffle and thin, light grille with magnets

Categories: ,

Description

  • Blue PP mica cone woofer
  • Fluid-cooled soft-dome swivel tweeter
  • 140W high power handling capacity
  • Horn-shaped acoustic baffle with spiral pattern produces a clean and natural sound
  • Thin grille with slim edge becomes almost invisible after installation
  • Protective plastic cover on the back
  • Light grill with magnetic catch is easy to attach and remove for spray painting and cleaning
  • Large dog-eared clamp with non-slip tread for sure installation
Type2-way coaxial
Woofer8” (20 cm) PP (polypropylene) mica cone
Tweeter1” (2.5 cm) fluid-cooled soft dome, swivel
Frequency Response50 Hz – 28 kHz
Maximum Input Power140 W
Sensitivity90 dB
Impedance8 ohms
Dimensions (W x H x D)Φ11-1/8” x 4-3/4”; Φ283 x 120 mm
Mounting Depth4-1/4” (109 mm)
Weight4.2 lbs. (1.9 kg)
Crossover Frequencies12dB/oct. (3.5 kHz)
General specifications
I/O connectorsPush Terminal ( Applicable Cable *Max, Twisted wire : 8mm²/ AWG 8)
