Yamaha DBR Series DBR15

The DBR15 achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.

Description

High-Efficiency 1000W Class-D Amplifiers

The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.

*DBR10 has an output level of 700W.

Yamaha

Custom Designed Transducer

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4″ precision compression driver* produces accurate mid-range and high frequencies.

*DBR10 features a 1″ compression driver.

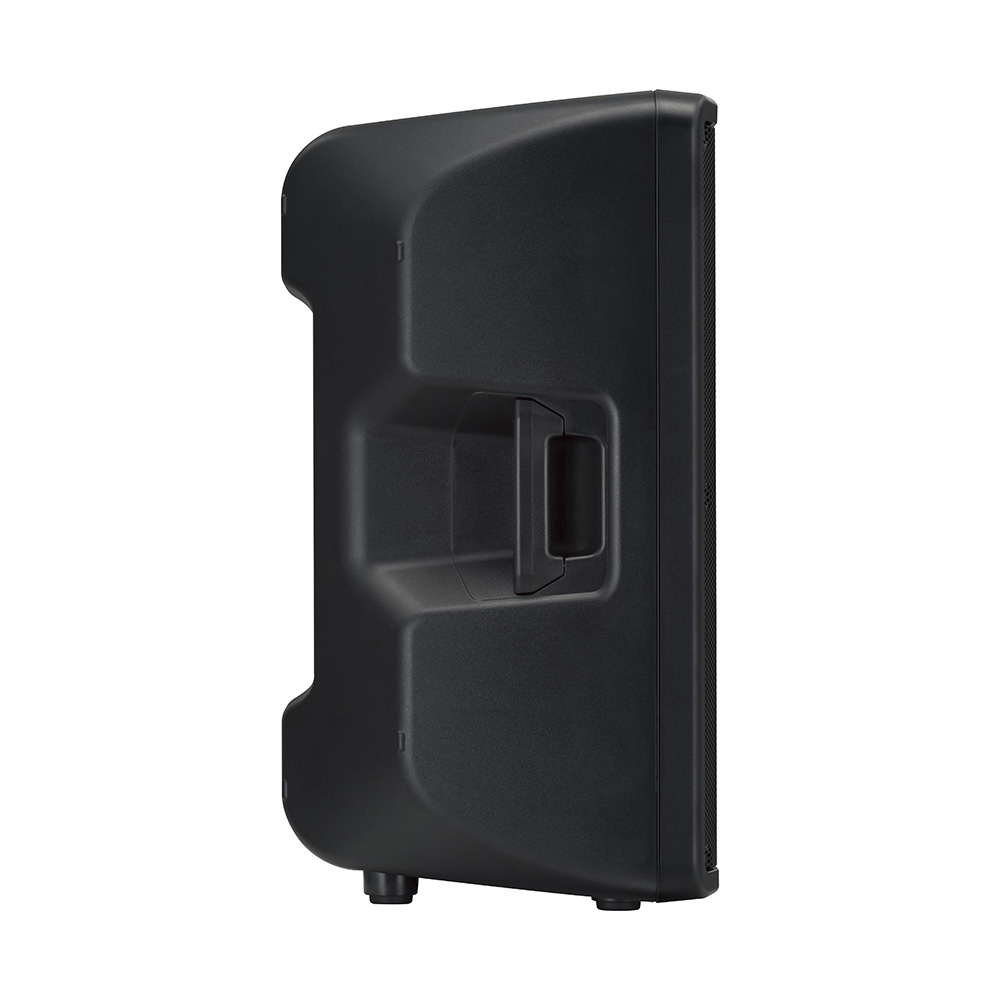

A Rugged, Highly Portable Cabinet

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

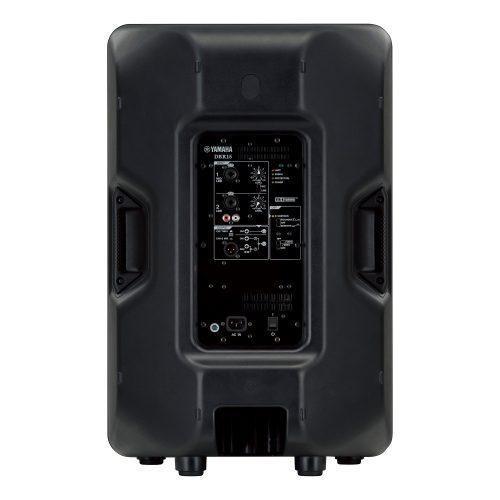

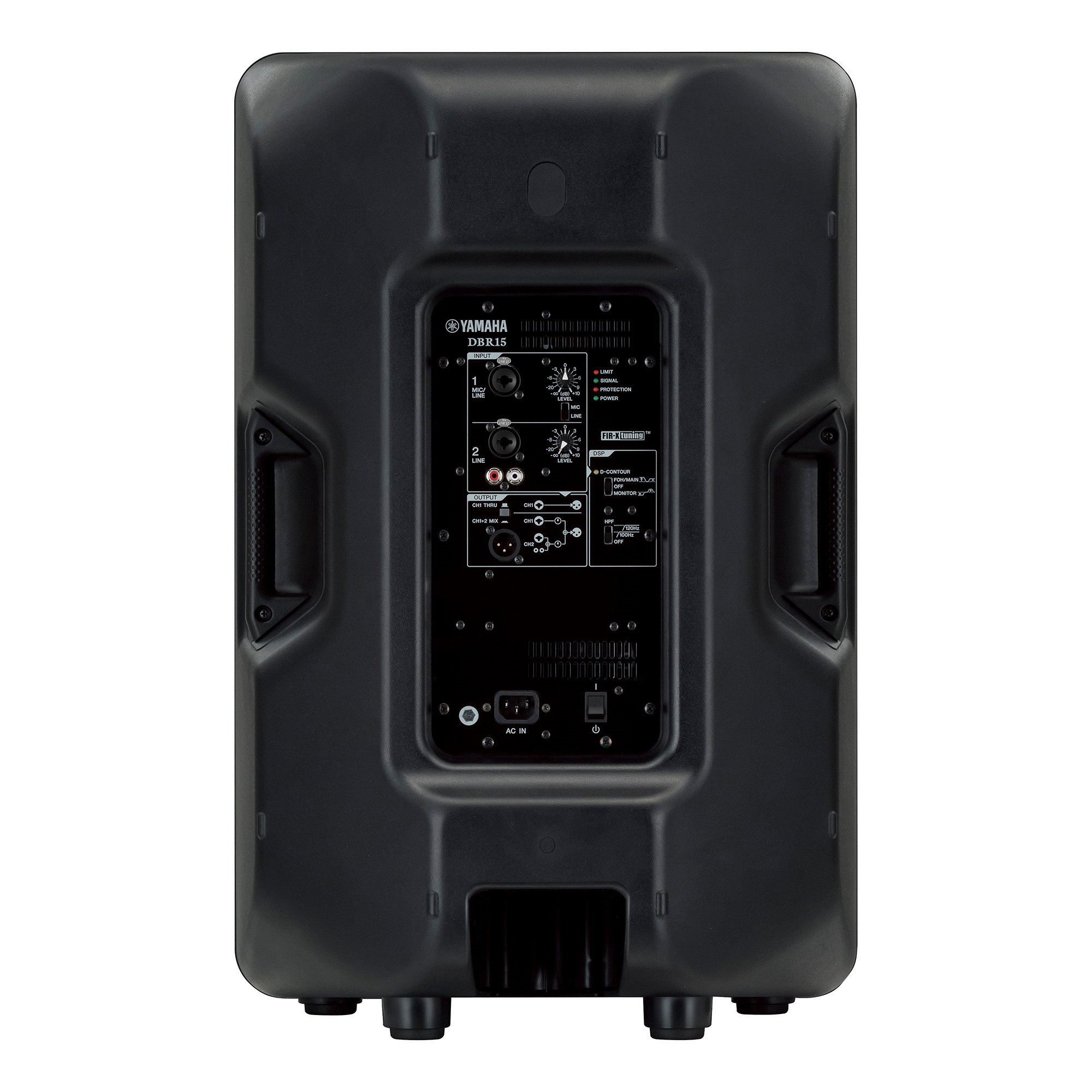

Easy-to-use Onboard 2-Channel Mixer

DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

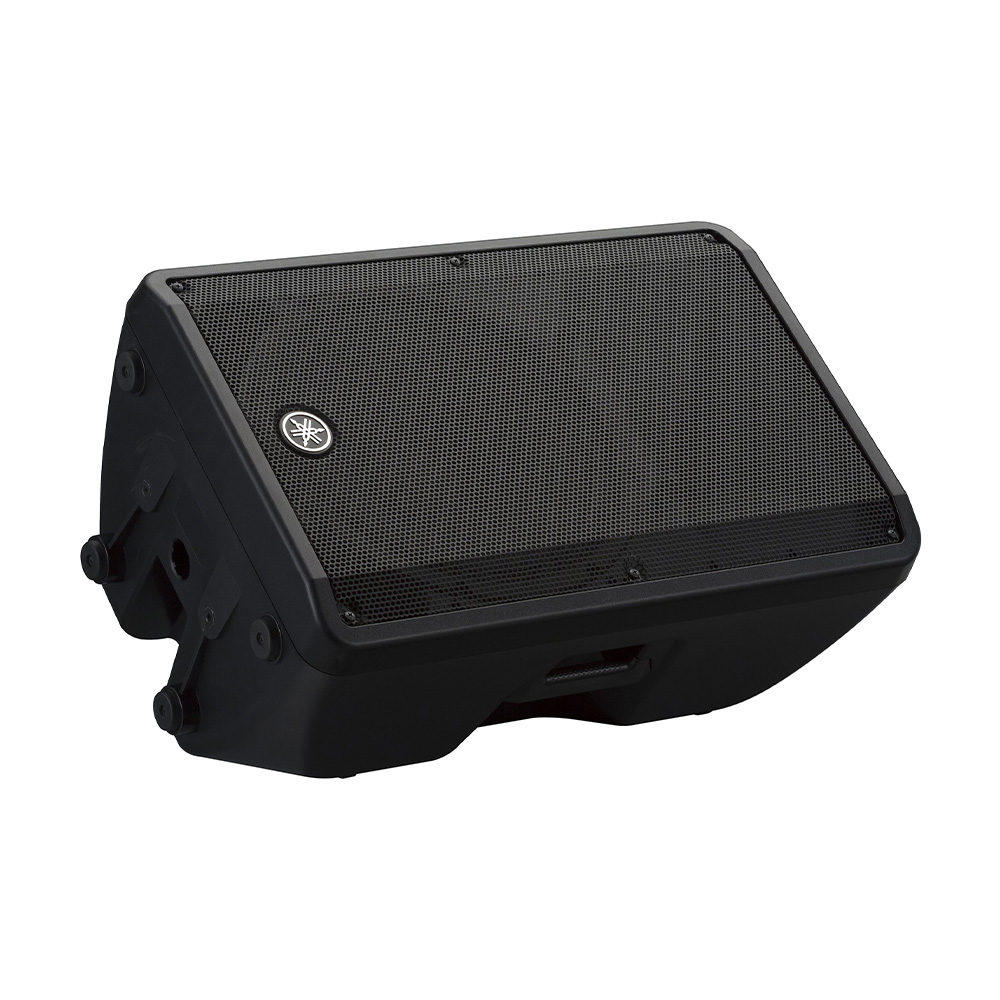

Smart Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Rigging Points for Installation Applications

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

*Speaker brackets and eye-bolts are not included.

Speaker type2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)50Hz – 20kHz
Nominal coverageH90°
V60°
ComponentsLFDiameter:15″ cone, Voice Coil:2.5″, Magnet:Ferrite
HFDiaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite
Crossover2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output powerDynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis)132dB SPL
I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipationFan cooling, 4 speeds
Power requirements100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption74W(1/8 Power Consumption), 18W(Idle)
Cabinet materialPlastic
FinishBlack
HandleSide x 2
Flying and mounting hardwareBottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket35mm (Bottom x 1)
DimensionsW455mm (17.9″)
H700mm (27.6″)
D378mm (14.9″)
Net weight19.3 kg (42.6 lbs)
AccessoriesBBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
