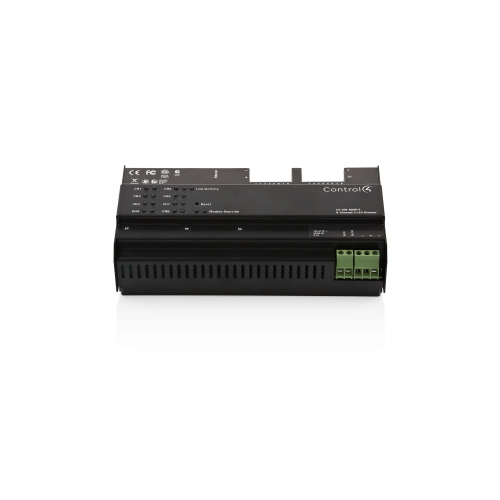

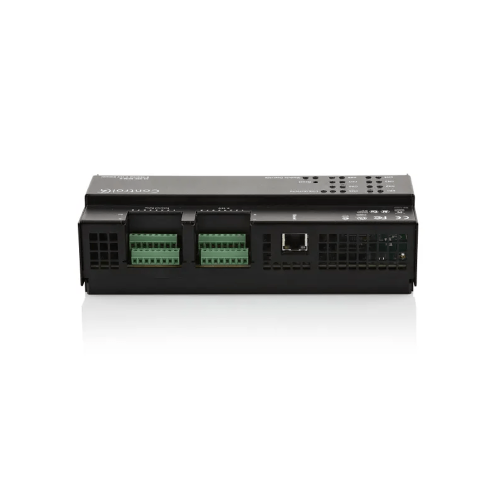

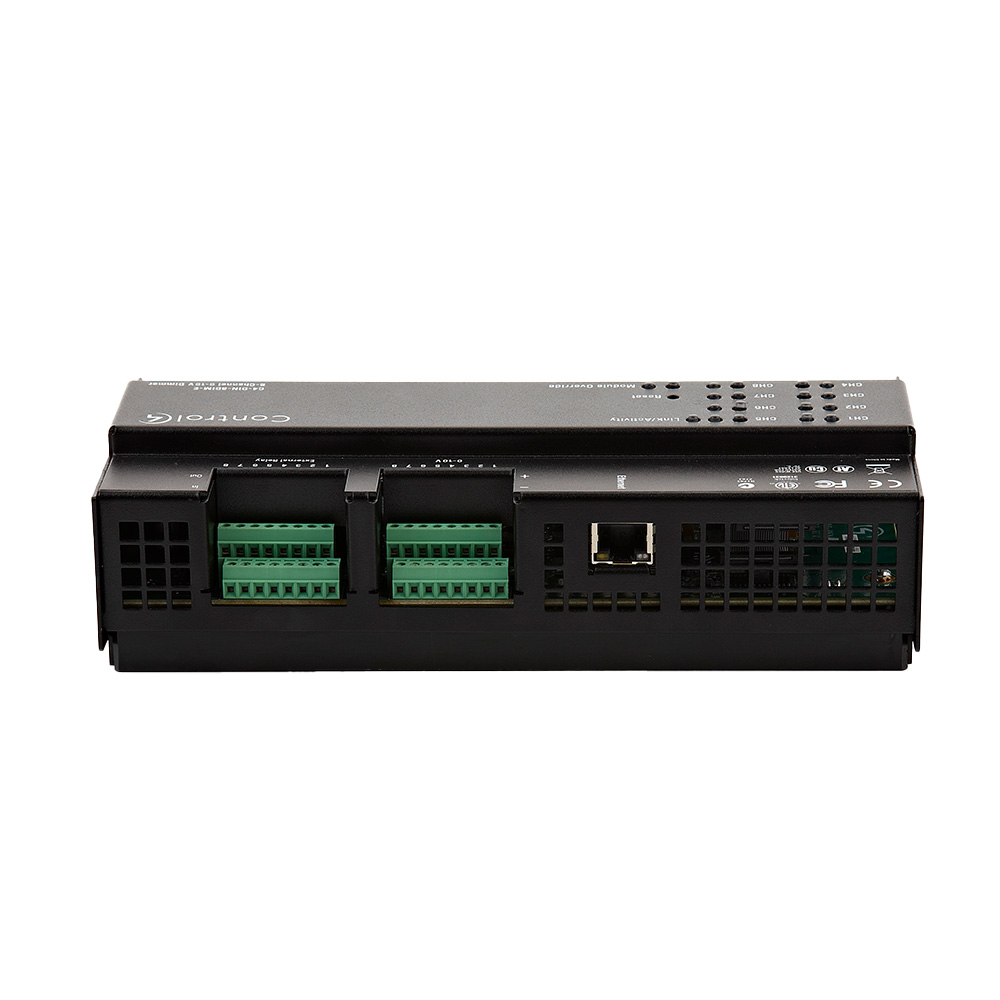

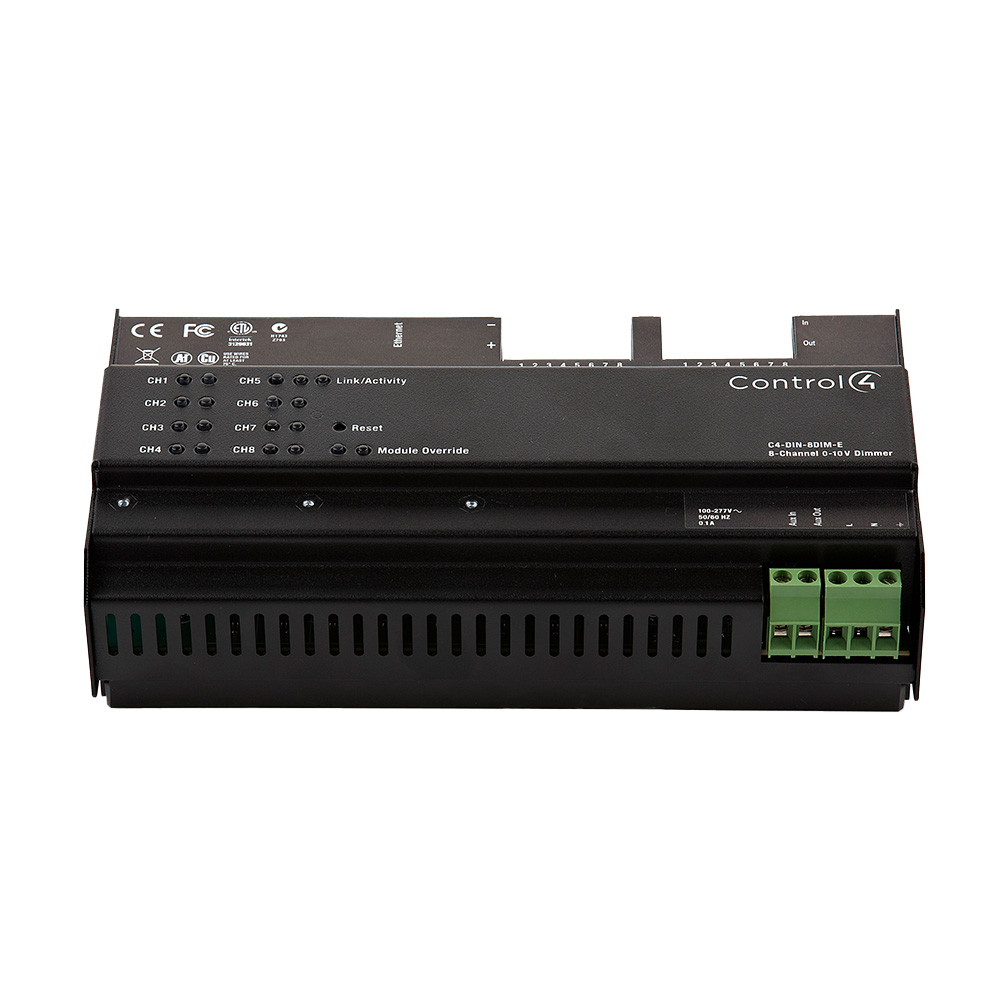

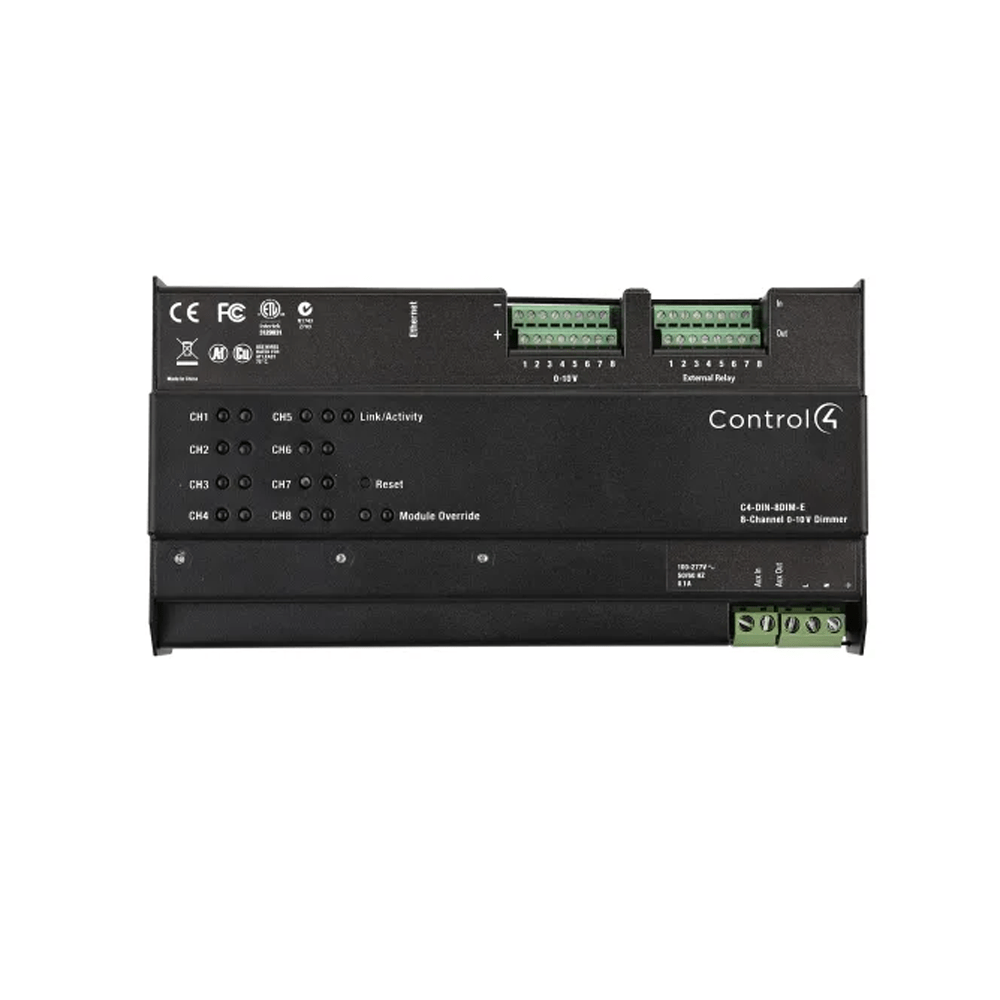

Control4 8-Channel 0-10V Dimmer

The Control4 8-Channel 0-10V Dimmer controls up to eight 0-10V dimmable fluorescent ballasts or LEDs. Each channel can control up to 50 ballasts. Individual 0-10V lights can be programmatically tied to a corresponding channel on a Control4 8-Channel Relay module for on/off control of the ballast or LED when needed. Alternatively, the Control4 8-Channel 0-10V Dimmer module also has eight low voltage outputs for triggering external power relays.



• Controls up to eight 0-10V dimmable fluorescent ballasts or LEDs.
• Sink up to 100mA per channel for control of up to 50 ballasts or source up to 25mA per channel for control of up to 12 ballasts.
• Eight low-voltage outputs for triggering external power relays.
• Channel buttons allow for toggling on/off or ramping up/down a load.
• Channel status LEDs indicate whether a load is on or off.
• Module override button allows toggling between the module override scene and all channels off or setting the module override
scene to current channel levels.
• Module status LED indicates if module power is on with normal operation or off.
• Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights before the control system
is installed or in case the controller malfunctions.
• The module can be installed in either a Control4 5-slot or 2-slot panel or in a third-party DIN rail panel.

Model numberC4-DIN-8TV-E
Power requirements100-277VAC, 50/60 Hz
0-10V per channel max100mA, sink (approximately 50 ballasts—see ballast specifications)
25mA source (approximately 12 ballasts—see ballast specifications)
External relay channel rating24V max, 50mA max
Power consumption2.5W
Supported load types0-10V and 1-10V dimmable fluorescent ballasts and LEDs, sink, or source
Control communcationsEthernet
Operational temperature32˚F ~ 104˚F (0˚C ~ 40˚C)
Humidity5% - 95% non-condensing
Storage temperature -4˚F ~ 158˚F (-20˚C ~ 70˚C)
Heat dissipation9 BTU/hr @120VAC
H × W × D8.5 × 4.3 × 2.3 in. (215 × 109 × 57 mm)
DIN module width12M
Weight2.4 lbs. (1.1 kg)
Shipping weight2.90 lbs. (1.3 kg)
