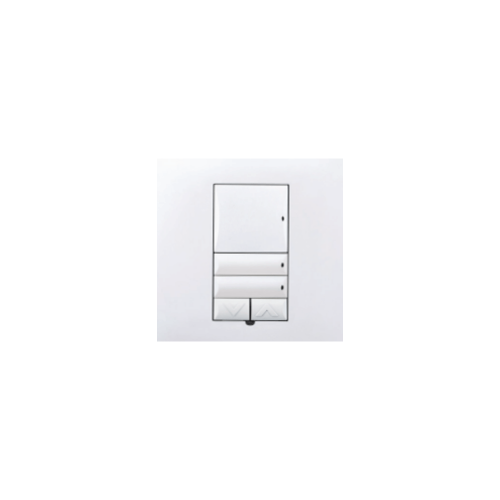

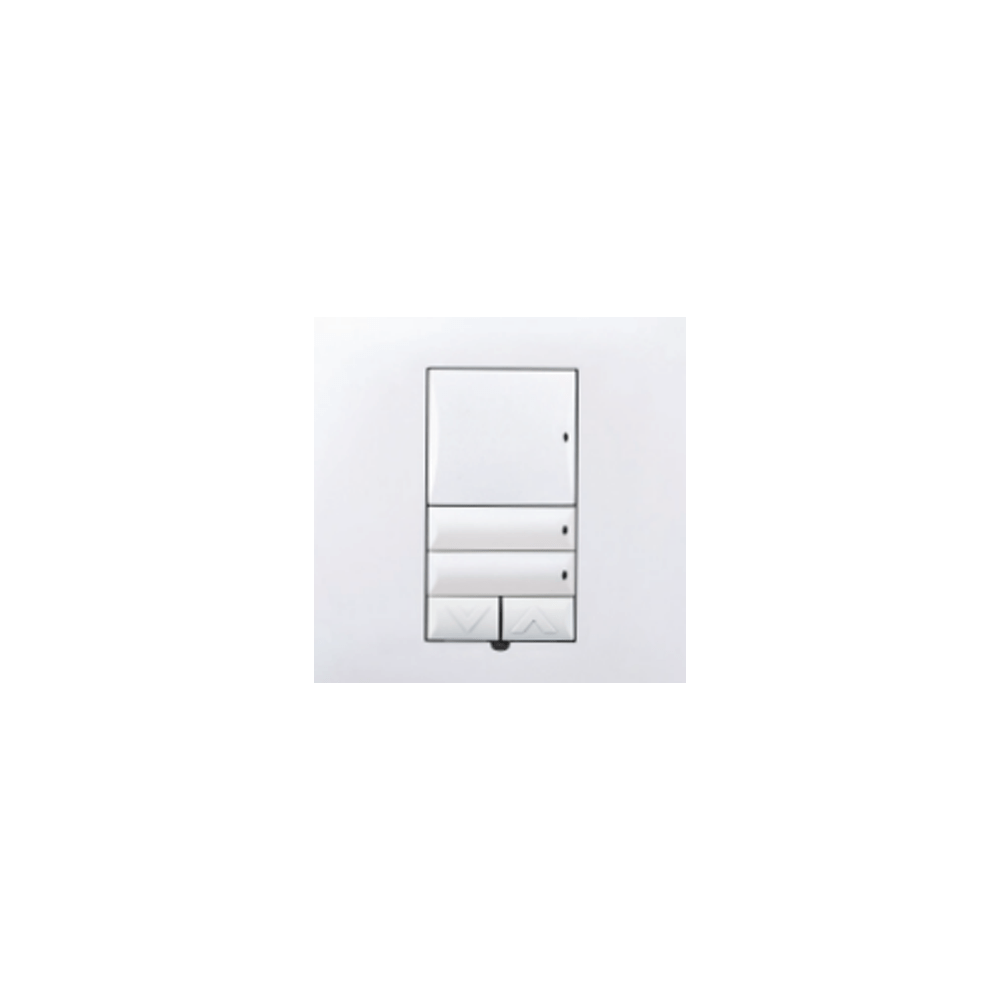

Control4 Square Wireless Configurable Keypad, 240V

Control4 Square Wireless Configurable Keypad, 240V

The Control4® Wireless Configurable Keypad is an elegant and customizable user interface that unlocks the power of onetouch automation. The keypad can be configured with two to seven buttons using five different button sizes for a total of 38 possible configurations. There’s no need to worry about how many buttons will be needed on a specific keypad prior to (or even after) installation

Category:

Description

• Wireless communication and standard wiring provide easy installation in new construction and retrofit environments.
• Elegant, sophisticated design makes a beautiful addition to any home or business.
• Custom engraving available to clearly identify each button.
• Backlit button engraving with programmable color control for easy readability regardless of time of day or light level.
• Programmable RGB LEDs provide status feedback for lighting and other devices in the system.
• Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room.
• Ships as “Neutral” device with no buttons included. Keypad-style button kit and Rocker-style button kits sold separately in a variety
of colors (see “Available accessories”).
• Control4® screw-less faceplates, sold separately, provide a sleek profile (see “Available accessories”).
• Installs in standard square (UK/China-style) or round (EU-style) wall boxes. Round (EU-style) wall boxes require trim ring (see
“Available accessories”).
• Power using mains voltage (120V to 277V) or low voltage (using Control4 36V or 48V power supply).

Control4® Square Wireless Configurable Keypad
Model numberC4-SKC-N
Power requirements110-277VAC +/-10%, 50/60 Hz, 48VDC or 36VDC
This device requires a neutral AC connection except when used
in combination with a Control4 wireless dimmer in a multi-way
wiring scenario.
Power consumption120V: 350mW
240V: 480mW
277V: 540mW
36VDC: 430mW
Environmental
Operational temperature32˚F ~ 104˚F (0˚C ~ 40˚C)
Humidity5% to 95% non-condensing
Storage-4˚F ~ 158˚F (-20˚C ~ 70˚C)
Miscellaneous
Control communicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum
radio
Wires per connectorOne 0.5 mm^{2} – 2.5 mm^{2} (20AWG – 10AWG)
OR
Two 0.5 mm^{2} – 1.5 mm^{2} (20AWG – 16AWG)
Dimensions83 × 71 × 17 mm (3.3 × 2.8 × 0.7 in.)
Weight0.05 kg (0.12 lb.)
Shipping weight0.08 kg (0.18 lb.)
Available accessories
Square Device Keypad Button Kit (C4-CKSK-xx)WH, SW, BL, MB, AU
Square Device Rocker Button Kit (C4-CKSR-xx)WH, SW, BL, MB, AU
Square Faceplate (C4-SFP1-xx)WG, BG, WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB, CH, MS
Glass95 × 95 × 8.0 mm (3.7 × 3.7 × 0.3 in.)
Metal and plastic85 × 85 × 7.5 mm (3.3 × 3.3 × 0.3 in.)
Square Dual Faceplate (C4-SFP2-xx)WH, BL, SW, MB, AU
Square Trim Ring (C4-SSTR-xx)WH, BL, SW, MB, AU
Square Dual Trim Ring (C4-SDTR-xx)WH, BL, SW, MB, AU
Engraved Button, Single High (C4-EBD1H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Double High (C4-EBD2H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Triple High (C4-EBD3H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Rocker (C4-EBDR-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
