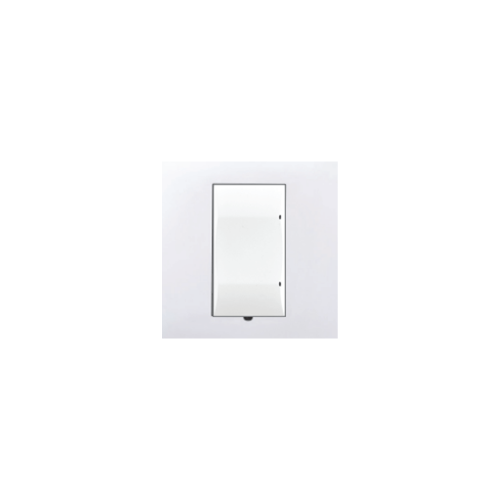

Control4® Square Dual Load Wireless Switch

The Control4® Square Dual Load Wireless Switch combines two relays and a configurable keypad for on/off control of up to two loads.
The keypad can be configured with two to seven buttons using five different buttons sizes for a total of 38 possible configurations.

Important Note: Faceplates and buttons (color change kits) are not included. Don’t forget to order faceplates and color change kits separately.

Category:

Description

Provides independent control of up to two different loads.
• Wireless communication and standard wiring provide easy installation in new construction and retrofit environments.
• Compatible with a variety of load types including incandescent, halogen, electronic low-voltage (solid state) transformers,
magnetic (iron core) low-voltage transformers, fluorescents, compact fluorescents, LEDs, and motors.
• Continuously measures energy being used by the attached load.
• Elegant, sophisticated design makes a beautiful addition to any home or business.
• Custom engraving available to clearly identify each button.
• Backlit button engraving with programmable color control for easy readability regardless of time of day or light level.
• Programmable RGB LEDs provide status feedback for lighting and other devices in the system.
• Configure with two to seven buttons using five different button sizes for a total of 38 possible configurations.
• Easy reconfiguration means there’s no need to worry about how many buttons will be needed on a specific switch before (or even
after) installation.
• Ships as “neutral” device with no buttons included. Keypad-style button kit and Rocker-style button kits sold separately in a variety
of colors (see “Available accessories”).
• Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room.
• Control4® screw-less faceplates, sold separately, provide a sleek profile (see “Available accessories”).
• Installs in standard square (UK/China-style) single-gang wall box.
• Not compatible with round (EU-style) or UK-style double-gang wall boxes.

C4-SDSW240-N
Power
Power requirements230VAC +/-10%, 50/60 Hz
This device requires a neutral connection.
Power consumption950mW
Load types and ratings
Supported load typesIncandescent, halogen, electronic (solid state) low-voltage (ELV)
transformer, magnetic (iron core, inductive) low-voltage (MLV)
transformer, compact fluorescent, LED, and motor.
Maximum load per output
Incandescent (tungsten)4A
Halogen4A
Fluorescent3A
Compact fluorescent (CFL)3A
LED1A
MLV2A
ELV2A
Motors1/8 HP
Environmental
Operational temperature0˚C ~ 40˚C (32˚F ~ 104˚F)
Humidity5% to 95% non-condensing
Storage-20˚C ~ 70˚C (-4˚F ~ 158˚F)
Miscellaneous
Control communicationsZigBee Pro, IEEE 802.15.4, 2.4 GHz, 15-channel spread
spectrum radio
Wires per connectorOne 0.5 mm^{2} – 2.5 mm^{2} or two 0.5 mm^{2} – 1.5 mm^{2}
Dimensions81 × 81 × 30 mm (3.2 × 3.2 × 1.2 in.)
Depth in wall box25.8 mm (1.0 in.)
Minimum wall box depth35 mm (1.4 in.)
Weight0.113 kg (0.25 lb.)
Shipping weight0.159 kg (0.35 lb.)
Available accessories
Square Device Keypad Button Kit (C4-CKSK-xx)WH, SW, BL, MB, AU
Square Device Rocker Button Kit (C4-CKSR-xx)WH, SW, BL, MB, AU
Square Single-gang Faceplate (C4-SFP1-xx)WG, BG, WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB, CH, MS
Glass95 × 95 × 8.0 mm (3.7 × 3.7 × 0.3 in.)
Metal and plastic85 × 85 × 7.5 mm (3.3 × 3.3 × 0.3 in.)
Engraved Button, Single High (C4-EBD1H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Double High (C4-EBD2H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Triple High (C4-EBD3H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Rocker (C4-EBDR-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
