Control4 Wireless 0-10V Dimmer

Experience elegant, in-wall control of the increasingly popular 4-wire 0-10V dimmable fluorescent ballasts and LED lights. Available in 9 stylish colors and finishes. 120V/277V or 240V.

Capable of sinking or sourcing 100mA for control of up to 50 ballasts
Built-in relay provides separate on/off control of line-voltage when required
Continuously measures energy being used by the attached load
Elegant, sophisticated design makes a beautiful addition to any home or business
Custom engraving available to clearly identify which light each dimmer controls
Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
Programmable RGB LEDs provide status feedback for lighting and other devices in the system
Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
Available in a wide array of gloss and satin colors (See Available Colors)

Description

Features
Specifications

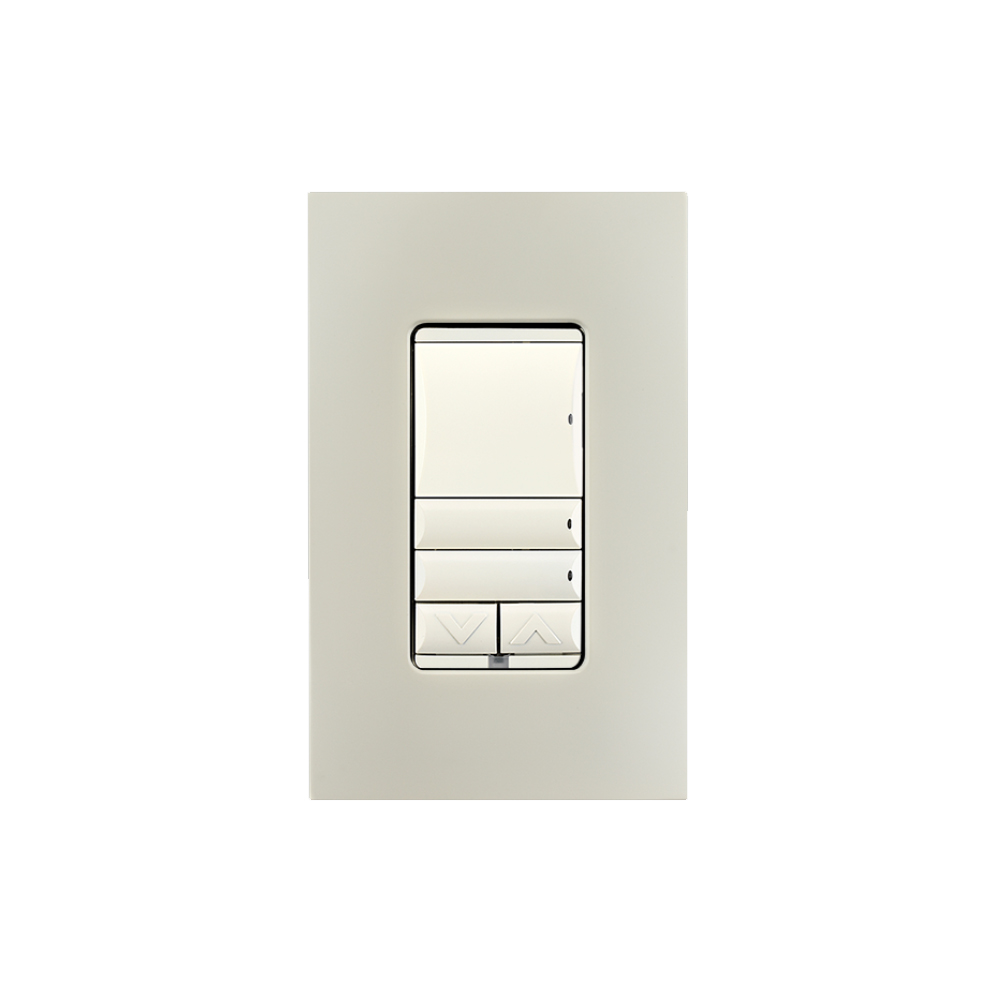

Control4 Keypads provide a stunning interface for your Control4 Smart Home system, combining flexible button configuration with beautiful aesthetics to complement the decor of your home. With the simple press of a button, you can activate a scene, allowing events to happen simultaneously.

Can include 1-6 LED backlit engraved buttons in various combinations. The bottom button can also include up and down volume arrows. Four different button sizes allow for a total of 38 possible configurations.
Mix-and-match engraved buttons and sleek, screwless faceplates with 12 stylish colors and gloss and satin finishes.
Available in 120V, 240V, or 277V.
Buttons allow for quick control of your favorite scenes. For example, a “Goodnight” button can be configured to shut off all the lights, lock the doors and arm the alarm, all at once.

Model Number	C4-TV120277 and C4-TV240
Power Requirements	C4-TV120277: 110-277VAC +/-10%, 50/60Hz C4-TV240: 220VAC-240VAC +/-10%, 50/60Hz This device requires a neutral AC connection.
Power Consumption	120V: 485 mW 240V: 1.0W 277V: 1.18 W
Load Types and Ratings
Supported Load Types	Four-wire 0-10V and 1-10V dimmable fluorescent ballasts and LEDs, sink or source.
Maximum Load (Switched Hot)	120V: 15A 240V: 10A 277V: 8A
Maximum Load (0-10V Control)	100mA sink or source
Environmental
Operational Temperature	32˚ F – 104˚ F (0˚ C – 40˚ C)
Operational Temperature	All load ratings are based on an ambient temperature of 25˚ C
Humidity	5% to 95% non-condensing
Storage	-4˚ F – 158˚ F (-20˚ C – 70˚ C)
Miscellaneous
Control Communications	ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio
Wallbox Volume	5.75 cubic inches
Weight	0.12 lb. (0.05 kg)
Shipping Weight	0.18 lb. (0.08 kg)
Available Colors
C4-TV120277-xx	WH, LA, IV, BR, BL, SW, MB, BI, AU
C4-TV240-xx	WH, BL, SW, MB, BI, AU
Available Accessories
Faceplate, 1 Gang (C4-FP1-xx)	WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)	WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)	WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)	WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKFPDAPD-xx)	WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Rocker (C4-EBDR-xx)	WH, LA, IV, BR, BL, SW, MB, BI, AU
