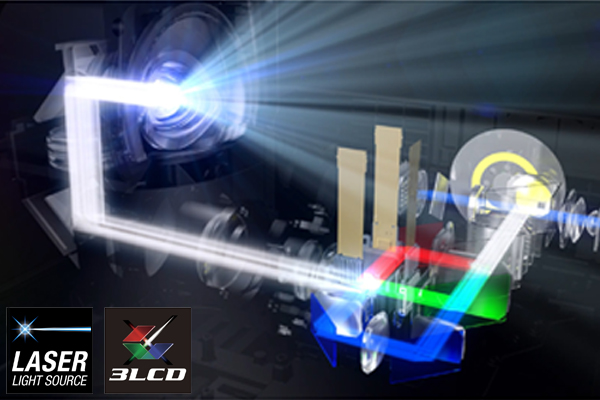

| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| LCD | Size | 0.62” (C2Fine)
|
| Resolution | 1080p (1366 x 768 x 2) |
| Projection Lens | Type | No Optical Zoom / Focus (Manual) |
| F-Number | 1.50 |
| Focal Length | 3.9mm |
| Zoom Ratio | 1.0 – 1.35 (Digital Zoom) |
| Throw Ratio | 0.27 – 0.37 (Wide to Tele) |
| Lightsource | Type | Laser Diode |
| Life (Normal / Eco / Extended) | 20,000 / N/A / 30,000 hrs |
| Screen Size (Projected Distance) | 65” – 100” [39.2 – 61.3 cm] @ 16:9 ; 61” – 120” [66.5 – 80.1 cm] @ 16:6 |
| White Light Output (Normal / Quiet) | 5,000lm / 3,500lm |
| Colour Light Output | 5,000lm / 3,500lm |
| Contrast Ratio | Over 2,500,000 : 1 |
| Sound Output | 8W x 8W Stereo |
| Vertical / Horizontal Keystone | ±3° / ±3° |
| Quick Corner | Yes |
| Analog Input | D-Sub 15Pin | 2 (Blue, Black) |
| Composite | RCA x 1 (Yellow) |
| Digital Input | HDMI | 3 (HDCP2.3) |
| HDBaseT | 1 (HDCP2.3) |
| Analog Output Terminal | D-Sub 15Pin | 1 (Black) (in common with Computer 2) |
| Digital Output Terminal | HDMI | 1 |
| Audio Input | Stereo Mini Jack | 3 |
| Audio Output | Stereo Mini Jack | 1 |
| Others | USB Type A | 2 (for USB Memory, Printer, USB Document Camera, Firmware Update, Copy OSD Settings) |
| USB Type B | 2 (for USB Display, Mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings) |
| Mic I/O | Stereo Mini x 1 |
| Control I/O | RS-232C | D-Sub 9pin x 1 |
| Interactive Sync | In x 1, Out x 1 |
| Touch Unit Control | Mini DIN 8pin x 1 |
| Network | Wired LAN | RJ45 x 1 (100Mbps) |
| Wireless | Built-in (Screen Mirroring or WLAN Switchable Usage) x 1 ;
USB Type A (In common with Memory I/O) x 1 using Optional Wireless LAN Unit |
| Wireless LAN – Built-in | Supported Speed For Each Mode | Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2 IEEE 802.11n (2.4GHz): 72Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point: (Wifi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 |
| Supported Mode | Infrastructure, Access Point (Wifi Direct) |
| Wireless LAN Security | Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EA ; Access Point (Wi-Fi Direct): WPA2-PSK (AES) |
| Miracast | Supported Speed For Each Mode | Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point: (Wifi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 |
| Supported Mode | Infrastructure, Access Point (Wifi Direct)
|
| Screen Mirroring-Built-in | Supported Speed For Each Mode | Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP ;
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ; Access Point(Wi-Fi Direct): WPA2-PSK(AES) |
| Wireless LAN Security | Supported Speed For Each Mode | Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point: (Wifi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 |
| Supported Mode | Infrastructure, Access Point (Wifi Direct) |
| Wireless Security | Supported Speed For Each Mode | Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ; Access Point (Wi-Fi Direct): WPA2-PSK(AES) |
| Technology | Infrared |
| Input Devices | Interactive Pen | Digital Pen (Easy Interactive Pen A & B) |
| Finger | Yes (Up to 6 Fingers) |
| Connection To Computer | USB, Network |
| Calibration | Pen: Auto / Manual (25 Points) |
| Functions | Hover, Right Click, Auto Adjust Pen Area |
| Pen Unit | Dimension | 161 x 24 mm (diameter) maximum |
| Weight | 30g (Excluding a battery) |
| Touch Unit | Maximum Dimension (D x W x H) | 65 x 422 x 40 mm |
| Weight | 600g |
| Operating Temperature | Single Use | 0 – 2,286 m (0 – 7,500 ft): 0 – 40 °C [41 – 104 °F] ; 20% to 80% Humidity, No Condensation
Over 2,286 – 3,048 m (7,500 – 10.000 ft): 0 – 35 °C [41 – 95 °F] ; 20%-80% Humidity, No Condensation |
| Multi-projection Use | 0 – 2,286 m (0 – 7,500 ft): 0 – 35 °C [41 – 95 °F] ; 20% to 80% Humidity, No Condensation
Over 2,286 – 3,048 m (7,500 – 10,000 ft): 0 – 30 °C [41 – 86 °F] ; 20%-80% Humidity, No Condensation |
| Operating Altitude | Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)
|
| Direct Power On / Off | Yes |
| Start-Up Period | Less than 8 seconds, Warm-up Period: 30 seconds |
| Cool Down Period | Instant Off |
| Air Filter | Type | Electrostatic Filter |
| Maintenance Cycle | 20,000 hours |
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
| Power Consumption (220 – 240V) | Lamp (Normal / Eco) | 366W / 262W |
| Standby (Network On / Off | 2.0W / 0.5W |
| Dimension Excluding Feet (D X W X H) | 375 x 458 x 209.5 mm |
| Weight (with cable cover) | Approx. 9.7 kg |
| Fan Noise (Normal / Extended / Quiet) | 36dB / 36dB / 27dB |
