Epson EB-2265U WUXGA 3LCD Projector

Epson EB-2265U WUXGA 3LCD Projector

A SIMPLE GESTURE FOR GREATER CONVENIENCE

Leave the lights on and take control whether in the meeting room or classroom. Epson’s EB-2265U projector is engineered to shine outstandingly even in well-lit environments to enrich your presentation experience. This projector allows a wide variety of input methods so you can project Full HD content from a wide-range of devices. Your brilliant Full HD presentations are made even better and more convenient with the new gesture-control function that allows you to navigate between your slides without the use of a peripheral device.

  • Beyond Full HD Resolution
  • White and Colour Light Output at 5,500 lumens
  • Gesture Presenter
  • Wireless Projection without Software
  • Multi-PC Projection
  • 2 x HDMI
  • Split Screen
Categories: , ,

Description

Product Brochure

Multi-PC Projection

With the control of a host PC, up to 50 terminals can be connected via the multi-PC projection from a single projector. The host PC acts as a moderator, selecting media from up to 4 terminals to be projected simultaneously. With the moderator function, you can maintain control and prevent tampering with what’s projected on screen.

Epson

Split Screen

Split screen allows inputs from two separate sources to be displayed side by side on the same screen. In a video conference, for example, images of presentation materials and remote participants can be shown simultaneously.

Epson

Longer Lamp Life

With a long lamp life of 10,000 hours in eco-mode, the frequency of costly lamp replacements is reduced, saving you time and money.

Epson



Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.76” (D10, C2
Fine)
Native ResolutionWUXGA (1920 x 1200)
Projection LensTypeOptical Zoom (Manual) / Focus (Manual)
F-Number1.5 – 2.0
Focal Length23 – 38.4 mm
Zoom Ratio1 – 1.6
Throw Ratio1.38 – 2.28 (Wide to Tele)
LightsourceTypeLamp
Life (Normal / Eco)5,000 / 10,000 hours
Zoom: Wide50” – 300” [1.46 – 8.95 m]
Zoom: Tele50” – 300” [2.43 – 14.79 m]
White Light Output (Normal / Eco)5,500lm / 3,800lm
Colour Light Output5,500lm
Contrast Ratio15,000:1
Sound Output16W Monaural
KeystoneVertical / Horizontal±30° / ±30° (Zoom: Centre
Auto KeystoneVertical / HorizontalYes / Yes
Quick CornerYes

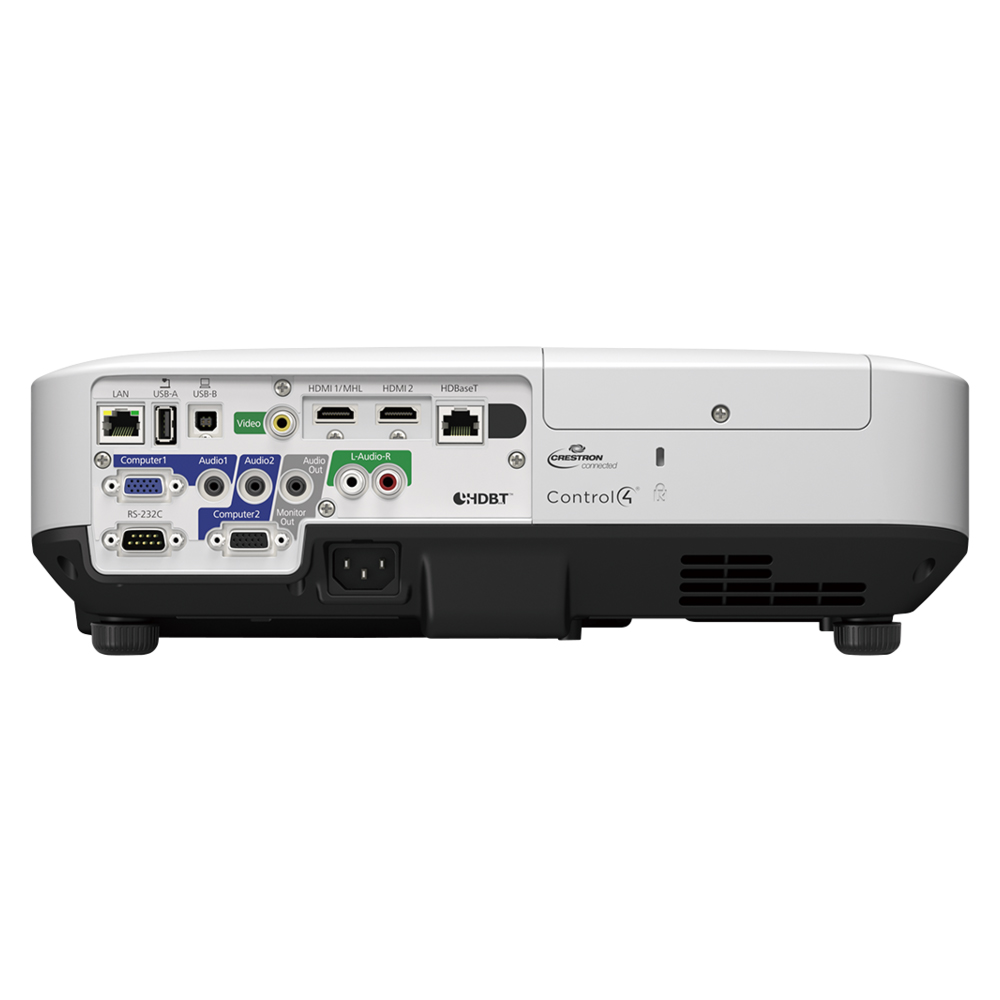

Analog InputD-Sub 15Pin2 (1 Blue, 1 Black)
Composite1
Digital InputHDMI2 (1 with MHL support)
HDBASET (RX)RJ45 x 1
Output TerminalD-Sub 15Pin1 (Black)
Audio InputRCA (White/Red)1
Stereo Mini Jack2
Audio OutputStereo Mini Jack1
OthersUSB Type A1 (for USB Memory, Firmware Update, Copy OSD Settings)
USB Type B1 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings)
Control I/ORS-232CD-Sub 9pin x 1
NetworkWired LANRJ45 x 1
WirelessOptional
Supported Speed For Each ModeIEEE 802.11b: 11 Mbps*3, IEEE 802.11g: 54 Mbps*3, IEEE 802.11n: 130 Mbps*3
Supported Connection ModeInfrastructure, Access Point
Wireless LAN SecurityQuick Mode: OPEN, WPA2-PSK
Advanced Mode: OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP, WPA/WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Supported Speed For Each Mode (Miracast)EEE 802.11g (2.4GHz): 54 Mbps, IEEE 802.11n (2.4GHz): 130 Mbps, IEEE 802.11a (5GHz): 54 Mbps,
IEEE 802.11n (5GHz): 270 Mbps, IEEE 802.11ac (5GHz): 780 Mbps
Supported Connection Mode (Miracast)Wi-Fi Direct
Wireless LAN Security (Miracast)WPA2-PSK(AES)
Above 2,286m / 7,500ft (w/ High Altitude Mode)5 – 40 °C <41 - 104 °F>
Above 2,286m / 7,500ft (w/ High Altitude Mode) 5 – 35 °C <41 - 95 °F>
Operating Altitude0 – 3,048 m (0 – 10,000 ft) (over 1,500m / 4,921ft : with high altitude mode)
Direct Power On / OffYes
Start-Up PeriodAbout 8 seconds, Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Air FilterTypeHigh Efficiency Filter
Maintenance Cycle5,000 hours (Power Consumption: Normal)
10,000 hours (Power Consumption: Eco)
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Lamp On (Normal / Eco)425W / 323W
Networked Standby / Energy Saving2.41W / 0.31W
Dimension Excluding Feet (D X W X H)219 x 377 x 101 mm
WeightApprox. 4.7kg
Fan Noise (Normal / Eco) 39dB / 29dB
