High resolution quality
Deliver captivating presentations complete with sharp text and rich images.
Big projections
When you are looking for big display, projection is the obvious answer ensuring that your information is conveyed clearly and accurately for everyone in the room.
Horizontal Keystone Slider
With the easy-to-use sliding Horizontal Keystone Slider, screen corrections can be done quickly, easily, and accurately, even in a limited space.
Projection Technology | RGB liquid crystal shutter projection system (3LCD) | |
LCD | Size | 0.55” (C2fine) |
Native Resolution | XGA | |
Lightsource | Type | 230W UHE |
Life (Normal / Eco) | 6,500 / 17,000 hours | |
Aspect Ratio | 4:3 | |
Type | Optical Zoom (Manual) / Focus (Manual) | |
F-Number | 1.51 – 1.99 | |
Focal Length | 18.20 – 29.20 mm | |
Zoom Ratio | 1 – 1.6 | |
Throw Ratio | 1.58 – 2.56 (Wide to Tele) | |
Standard | Tele: 27” to 262” [1.40 to 13.81 m] | |
Wide: 27” to 262” [0.85 to 8.52 m] | ||
White Light Output (Normal / Extended) | 4,100 lm | |
Colour Light Output | 4,100 lm | |
Contrast Ratio | 16,000:1 | |
Vertical / Horizontal Keystone | ±30° / ±30° (Auto Vertical Keystone only) | |
Quick Corner | Yes | |
Split Screen | Yes | |
Internal Speakers | Monoaural: 16W x 1 | |

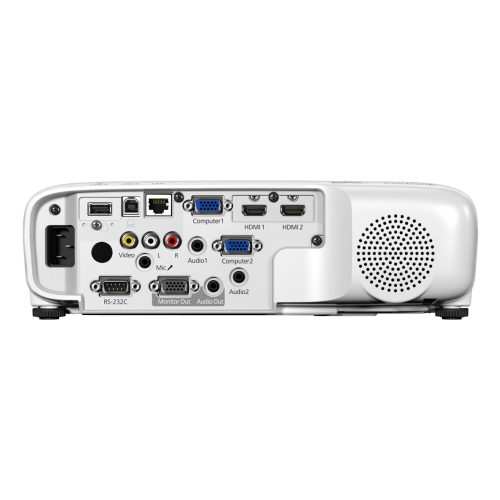

Analog Input | D-Sub 15Pin | 2 |
Composite | 1 (RCA) | |
Digital Input | DVI-D | NA |
HDMI | 2 | |
HDBaseT | NA | |
Output Terminal | D-Sub 15Pin | 1 |
HDMI | NA | |
Audio Input | 2RCA (White & Red) | 1 |
Stereo Mini | 2 | |
Audio Output | Stereo Mini Jack | 1 |
Others | USB Type A | 1 (for Wireless LAN, Firmware Update, Copy OSD Settings) |
USB Type B | 1 (for Firmware Update, Copy OSD Settings) | |
Mic Input | Stereo Mini | 1 |
Control I/O | RS-232C | 1 |
Remote Control Input | NA | |
Network | Wired LAN | 1 |
Wireless | 1 (ELPAP11) | |
Supported Speed For Each Mode | IEEE 802.11b (2.4GHz): 11 Mbps^{*2} / IEEE 802.11g (2.4GHz): 54 Mbps^{*2} / IEEE 802.11n (2.4GHz): 72.2 Mbps^{*2} / | |
IEEE 802.11a (5GHz): 54 Mbps^{*2} / IEEE 802.11n (5GHz): 150 Mbps^{*2} | ||
Wireless LAN Security | Infrastructure: OPEN, WPA2/WPA3-PSK | |
Operating Altitude | 0 – 3,048 m <0 – 10,000 ft> | |
Direct Power On / Off | Yes | |
Start-Up Period | Up to 6 seconds, Warm-up Period: 30 seconds | |
Cool Down Period | Instant Off | |
Air Filter | Type | High Efficiency Filter |
Maintenance Cycle (Normal / Eco) | 10,000 / 20,000 hours^{*3} | |
Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz | |
Power Consumption (220 – 240V) | Lamp (Normal / Medium / Eco) | 327W / 290W / 225W |
Standby (Network / Energy Saving) | 2.0W / 0.3W | |
Dimension Excluding Feet (D X W X H) | 282 x 309 x 90 mm | |
Weight (Including Standard Lens) | Approx. 3.1 kg | |
Fan Noise (Normal / Quiet) | 37dB / 28dB |
