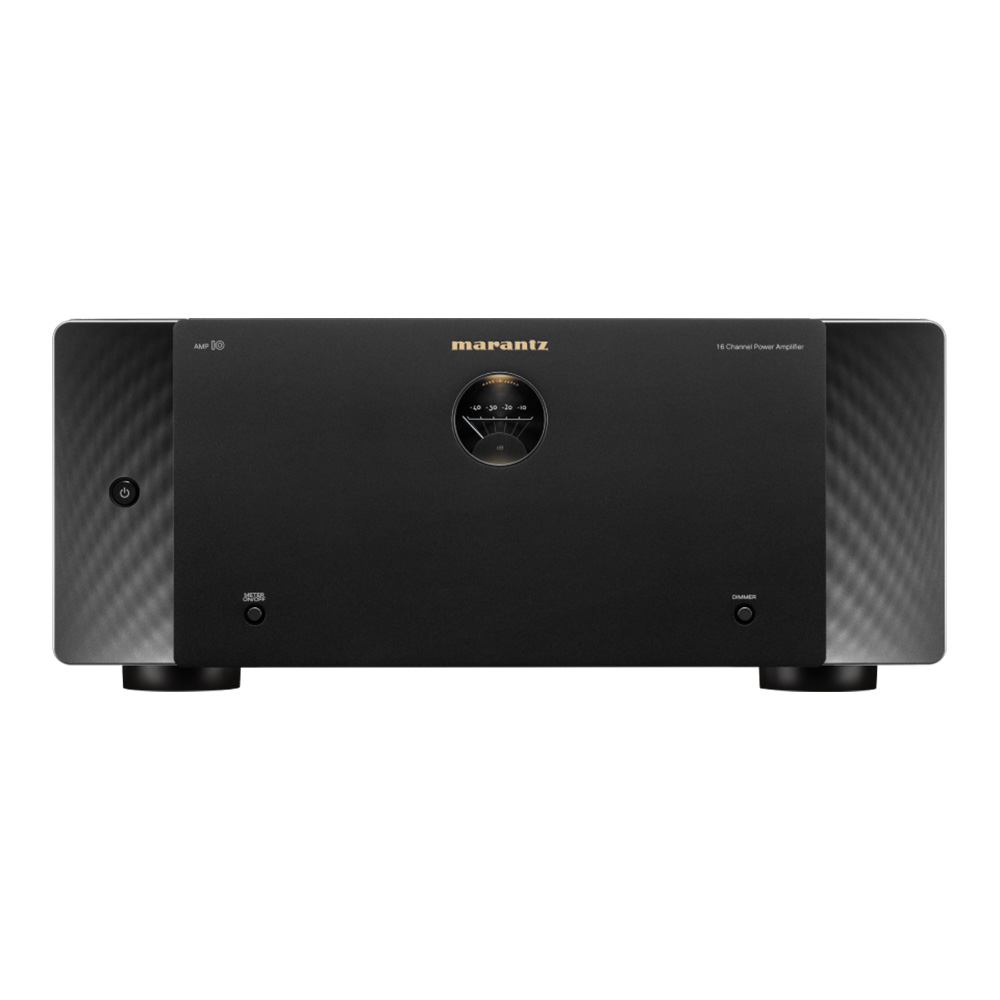

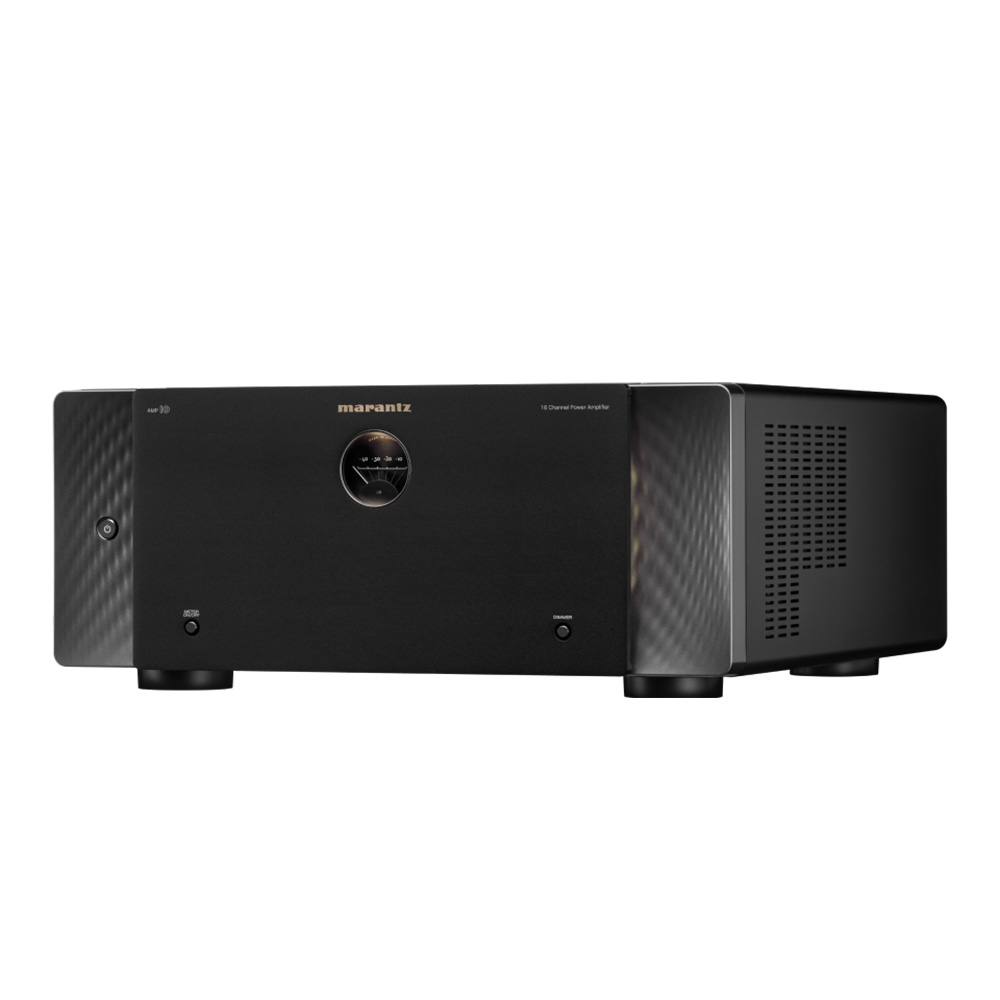

Marantz AMP 10

Marantz AMP 10

Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theater. Marantz HDAM, Current Feedback Amplification, and balanced line level input.

  • 16-channel switching power amplifier module
  • Current feedback amplifier
  • High audio quality parts
  • Doubled-layered chassis
  • High-end machined brass speaker jacks
  • Switch between Unbalanced RCA and Balanced XLR
  • BI-AMP/BTL connection setting function
  • AMP Control function
Categories: ,

Description

Ultimate Performance

We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.



Style

Excellence is heard and seen. AMP 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.







Customizability

Thoughtfully curated connectivity options and selectable amplifier modes let you make AMP 10 your own.



Powerful

AMP 10 gives you 16 channels of commanding power, deftly nuanced.

Multi-Room / CI
IP Control / RS232 Control / Web Control / App ControlNo / Yes / No / No
IR Flasher InYes
Marantz Remote BusYes
Others
Auto Power offYes

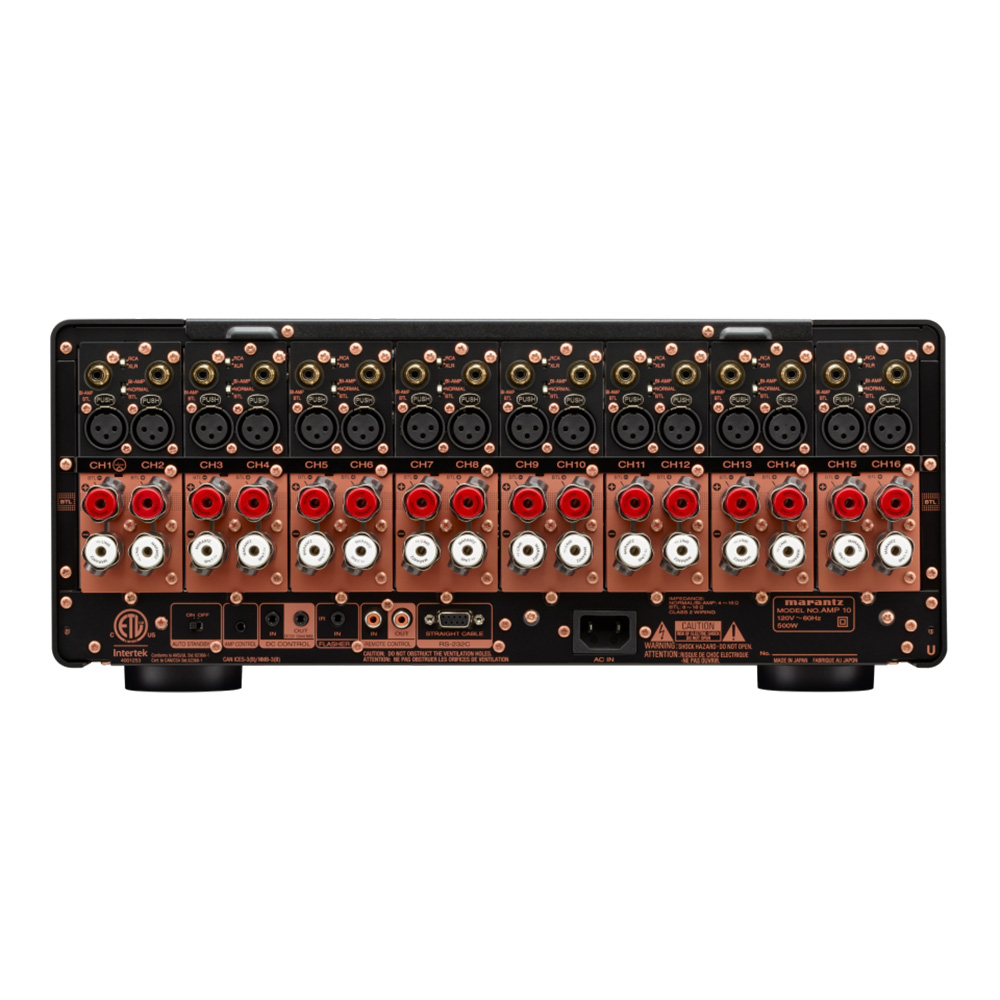

Inputs/Outputs
Main Amplifier inBalanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker TerminalSPKT-1+
Number of Speaker Terminals16
Bi-Amp Drive /BTL DriveYes / Yes
Input sensitivity/impedance1.4 V / 47 kΩ/kohms (UNBALANCED)
2.8 V / 100 kΩ/kohms (BALANCED)
ChasissCopper Plated
Specifications
Number of poweramps16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal200W
70% Guarantee(Normal/Bi-Amp/BTL)Yes
100% Guarantee(Normal/Bi-Amp)Yes
General
Operating temperature5 °C – 35 °C (41 °F – 95 °F)
Signal-to-noise ratio (IHF-A)110dB
Voltage amplification level29dB
Power supplyAC 120 V, 60 Hz
Power Consumption500W
Power Consumption No-Sound140W
Standby Consumption0.2W
Maximum Dimensions441.96 x 487.68 x 187.96mm (17.4″ x 19.2″ x 7.4″)
Weight19.82 kg (43.7 lbs)
