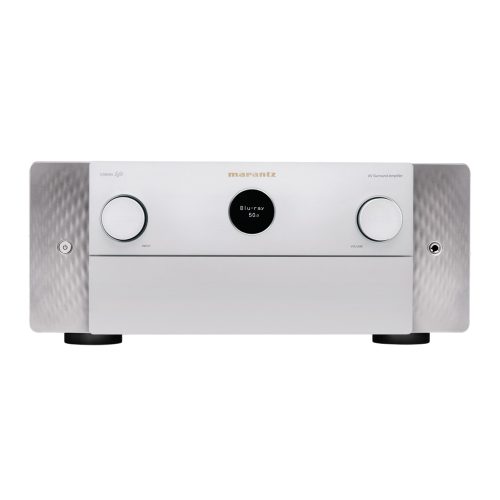

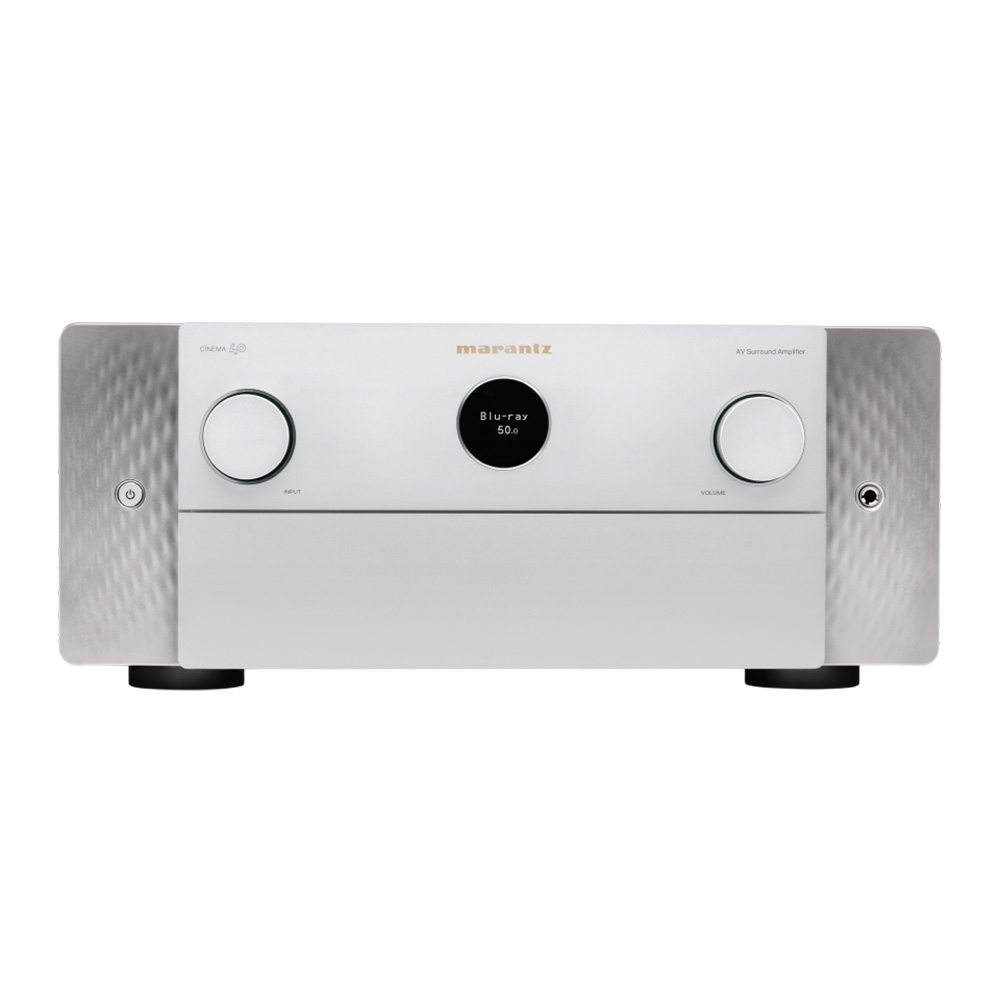

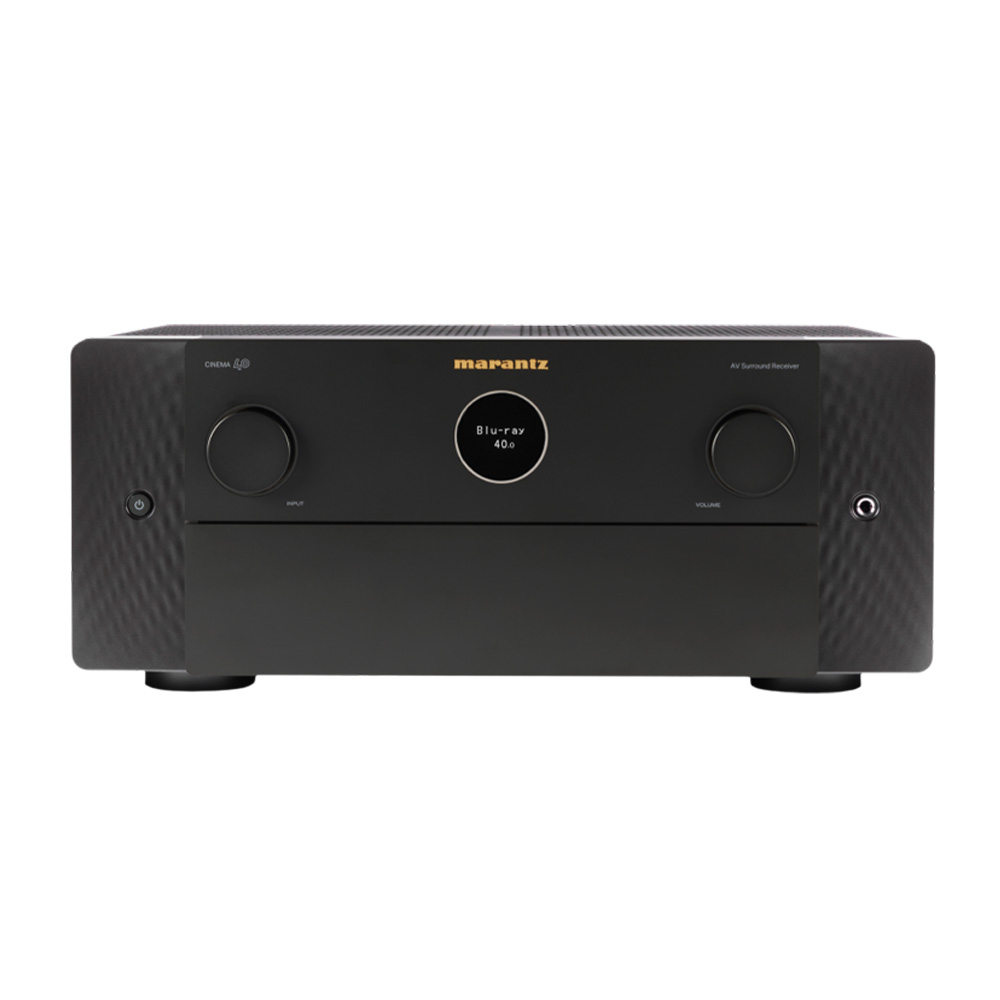

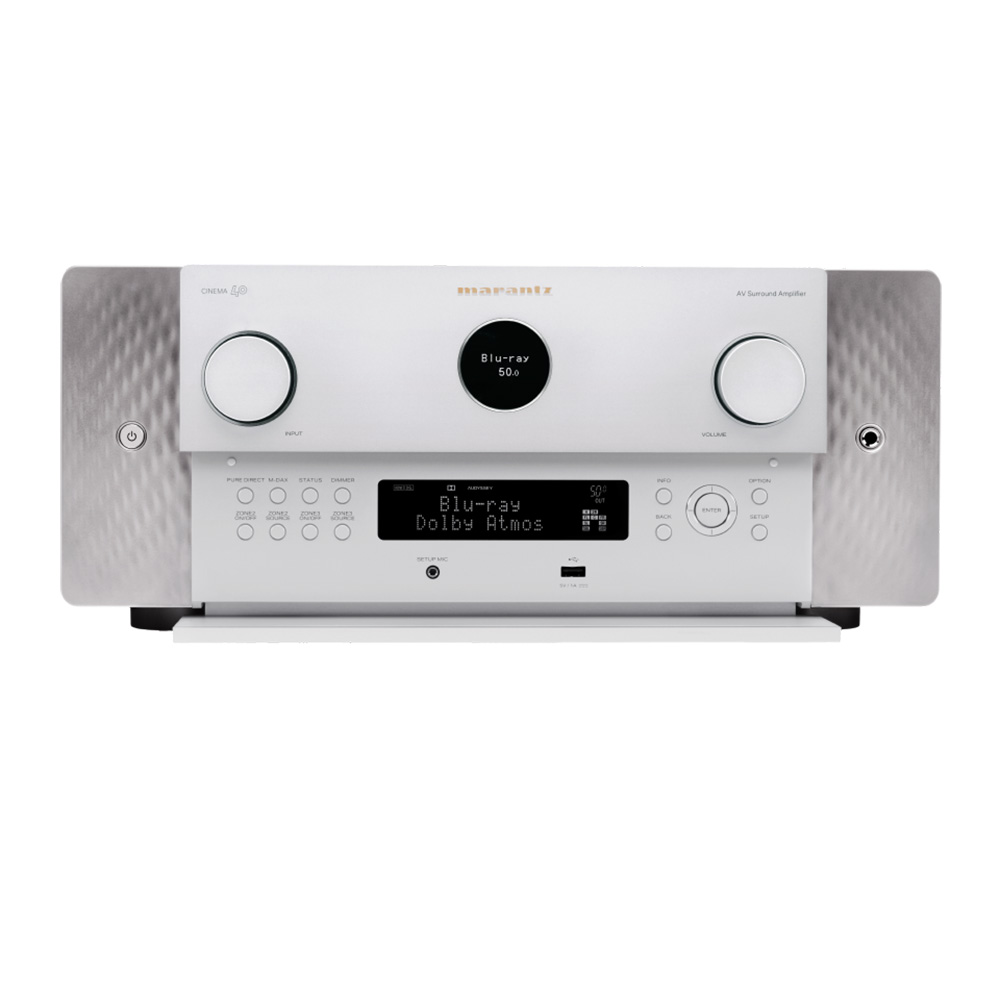

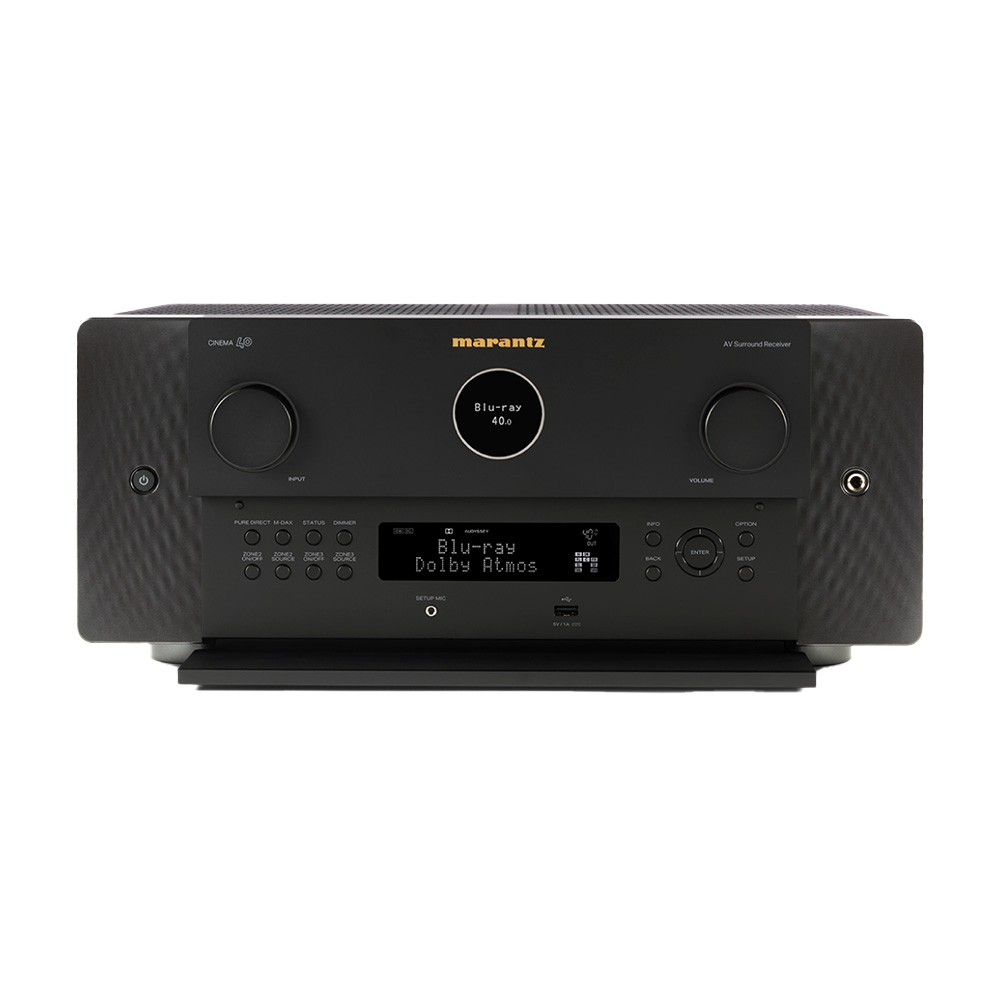

Marantz Cinema 40

Premium 9.4 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming. CINEMA 40 is a statement piece and reference level A/V Receiver.

  • Peerless Performance
  • Technology Leader
  • Exquisite Design
Categories: ,

Description

Performance



The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.





Style

Excellence is heard and seen. CINEMA 40 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.







Customizability

Thoughtfully curated connectivity options and finetuning ability allow you to make CINEMA 40 your own.





Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Power Amplifier
Number of Powered Channels9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)125W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)165W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)235W
Discrete Power AmplifierYes
Amplifier TopologyClass A/B
Multichannel Surround Technologies
DTSDTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
DolbyDolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Max Number of Processing (Preamp Channels)11.4

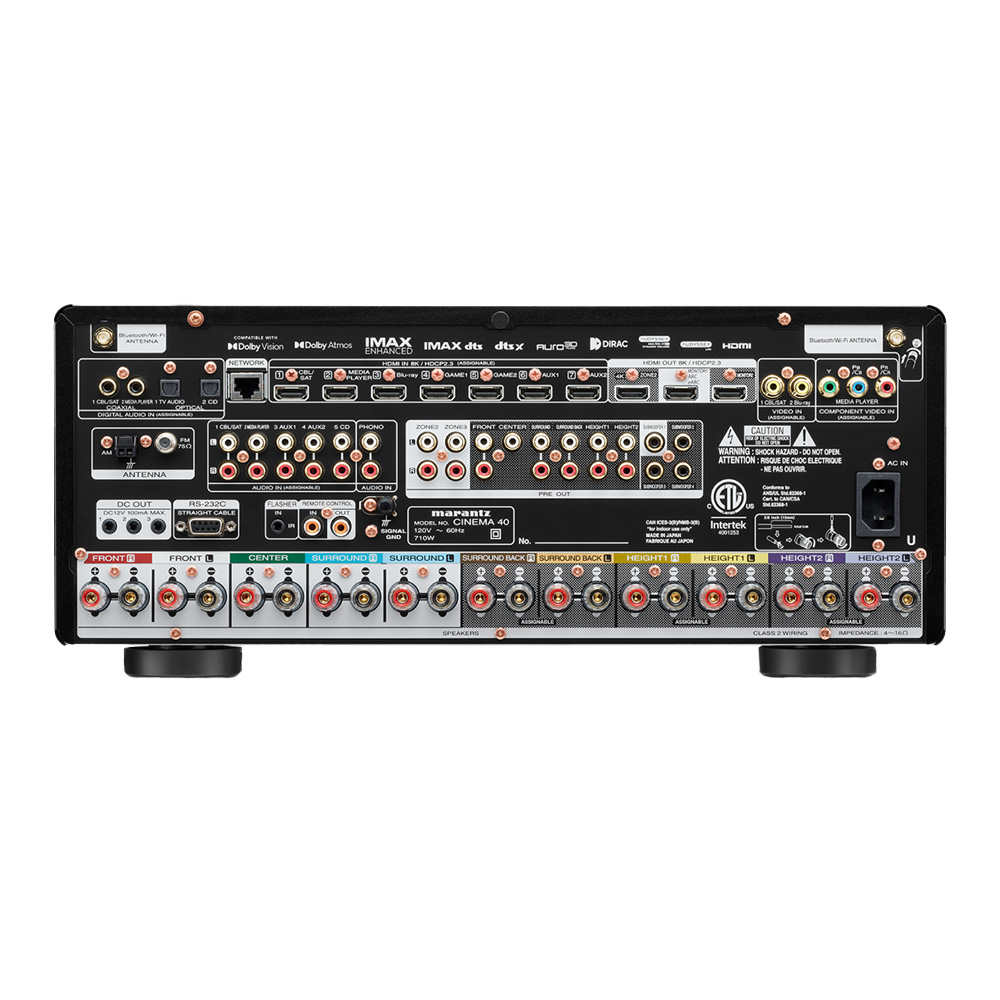

Inputs/Outputs
Composite In / Out2 / 0
Component In / Out1 / 0
HDMI In / Out7 / 3
Multi-Room Video Out via HDMIYes
Analog In / Fixed Level Out5 in / 0 out
Number of Speaker Terminals11
Front InputsUSB-A
HDMI
Total HDMI Inputs / No. Support 8K7 / 7
HDMI Upscaling1080P/4K to 8K
Max resolution @ framerate8K @ 60Hz, 4K @ 120Hz
Video Dynamic RangeHDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
Variable Refresh Rate / Quick Frame TransportYes / Yes
HDMI Pass-Through in Standby ModeYes
DSD Audio over HDMIYes
Performance Technologies
Copper Plated ChassisNo
Toroidal Power Supply TransformerNo
Pure Direct ModeYes
Gold Plated RCA TerminalsYes
Clock Jitter ReducerYes
Acoustic / Room Correction
AudysseyMultEQ XT32
Variable Cross OverYes
Optimized Bass RedirectionYes
Bass SyncYes
Music File Support
Lossy FormatsMP3 / WMA / AAC
Lossless formatsFLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio2.8MHz / 5.6MHz
Gapless PlaybackFLAC, WAV ,ALAC ,DSD
Network Audio SharingYes
Streaming Services
HEOS Multi-room and StreamingYes
AirPlay Audio StreamingAirplay2
Internet RadioTuneIn
Network Connectivity
Ethernet PortsYes
Wi-Fi (include version / band)Yes
Bluetooth (Include version)Yes
Bluetooth Re-transmit for Bluetooth headphonesYes
Smart Home Integration And Control
Voice Assistant CompatibilityAlexa / Google Voice Assistant / Apple HomePod
Apps for Smart Phones & Tablets (Ios & Android)Marantz AVR Remote App, HEOS
Multi-Room zones3
Others
Front Display2 line FLD + port hole OLED
ECO ModeYes
Auto Power offYes
Sleep TimerYes
General
Available ColorsBlack/Silver-Gold
System Remote ControlRC048SR
Power Consumption in W710
Power Consumption No-Sound (ECO on/off) in W65 / 110
Standby Consumption in W0.2
CEC Standby Consumption in W0.5
Network Standby Consumption in WLess than 2.0
Maximum Dimensions (W x H x D) Antenna (Horizontal): 439.42 x 185.42 x 411.48mm (17.3" x 7.3" x 16.2")
Antenna (Vertical): 439.42 x 254 x 411.48mm (17.3" x 10" x 16.2")
W/o Antenna: 439.42 x 185.42 x 401.32mm (17.3" 7.3" 15.8")
Weight15.10kg (33.3 lbs)
